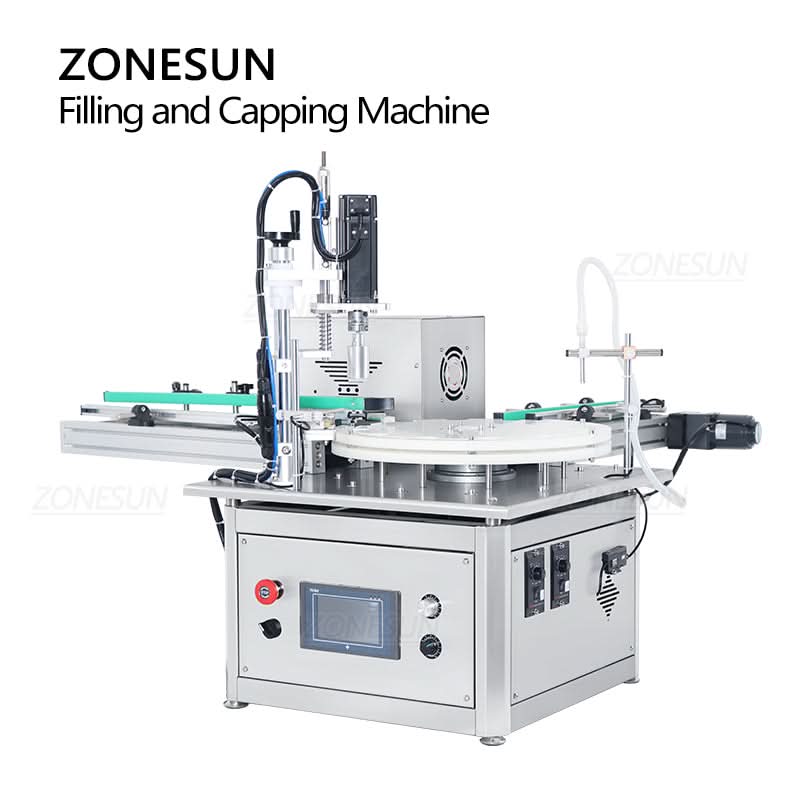

ZONESUN ZS-AFC1T Compact Liquid Filler & Capper for Small Bottles Vials
The ZONESUN ZS-AFC1T compact filling and capping machine integrates a small conveyor belt for streamlined liquid processing. Designed for small bottles and vials, it can be paired with a tabletop labeling machine to build a complete automated line. With peristaltic pump precision and space-saving architecture, it's ideal for handling perfumes, essential oils, inks, and other low-viscosity liquids in the cosmetics and chemical industries.
Item Specification
Model ZS-AFC1T
Voltage 110/220V, 50–60Hz
Pump Type Peristaltic pump
Power 500W
Bottle Diameter 10–40 mm
Filling Range ≤ 100 ml
Bottle Height ≤ 120 mm (customizable)
Cap Diameter Customized
Filling Nozzle Size Outer Diameter: 6 mm
Working Speed 20–50 bottles/min (depends on liquid & bottle size)
Conveyor Belt Size Approx. 670 × 80 mm
Machine Size Approx. 580 × 580 × 900 mm
Machine Weight Approx. 76.5 kg
Package Size Approx. 800 × 710 × 980 mm
Package Weight Approx. 98.5 kg
The ZONESUN ZS-AFC1T compact filling and capping machine integrates a small conveyor belt for streamlined liquid processing. Designed for small bottles and vials, it can be paired with a tabletop labeling machine to build a complete automated line. With peristaltic pump precision and space-saving architecture, it's ideal for handling perfumes, essential oils, inks, and other low-viscosity liquids in the cosmetics and chemical industries.
Item Specification
Model ZS-AFC1T
Voltage 110/220V, 50–60Hz
Pump Type Peristaltic pump
Power 500W
Bottle Diameter 10–40 mm
Filling Range ≤ 100 ml
Bottle Height ≤ 120 mm (customizable)
Cap Diameter Customized
Filling Nozzle Size Outer Diameter: 6 mm
Working Speed 20–50 bottles/min (depends on liquid & bottle size)
Conveyor Belt Size Approx. 670 × 80 mm
Machine Size Approx. 580 × 580 × 900 mm
Machine Weight Approx. 76.5 kg
Package Size Approx. 800 × 710 × 980 mm
Package Weight Approx. 98.5 kg
Original: $4,699.79
-70%$4,699.79
$1,409.94Description
The ZONESUN ZS-AFC1T compact filling and capping machine integrates a small conveyor belt for streamlined liquid processing. Designed for small bottles and vials, it can be paired with a tabletop labeling machine to build a complete automated line. With peristaltic pump precision and space-saving architecture, it's ideal for handling perfumes, essential oils, inks, and other low-viscosity liquids in the cosmetics and chemical industries.
Item Specification
Model ZS-AFC1T
Voltage 110/220V, 50–60Hz
Pump Type Peristaltic pump
Power 500W
Bottle Diameter 10–40 mm
Filling Range ≤ 100 ml
Bottle Height ≤ 120 mm (customizable)
Cap Diameter Customized
Filling Nozzle Size Outer Diameter: 6 mm
Working Speed 20–50 bottles/min (depends on liquid & bottle size)
Conveyor Belt Size Approx. 670 × 80 mm
Machine Size Approx. 580 × 580 × 900 mm
Machine Weight Approx. 76.5 kg
Package Size Approx. 800 × 710 × 980 mm
Package Weight Approx. 98.5 kg
