ZONESUN ZS-FAL90S Auto Liquid Bottle Filling Line for Small Production
The ZONESUN ZS-FAL90S Automatic Liquid Bottle Filling Line is built for space-efficient, small-scale production of low-viscosity liquids. Featuring a compact footprint and smooth conveyor design, this system enables consistent bottle transport and precise filling through either a peristaltic or magnetic pump. Ideal for cosmetics, beverages, and daily chemical industries, it supports a customizable cap diameter and adjustable filling range for flexible packaging needs.
Parameter
Model ZS-FAL90S
Voltage 220V/110V, 50–60Hz

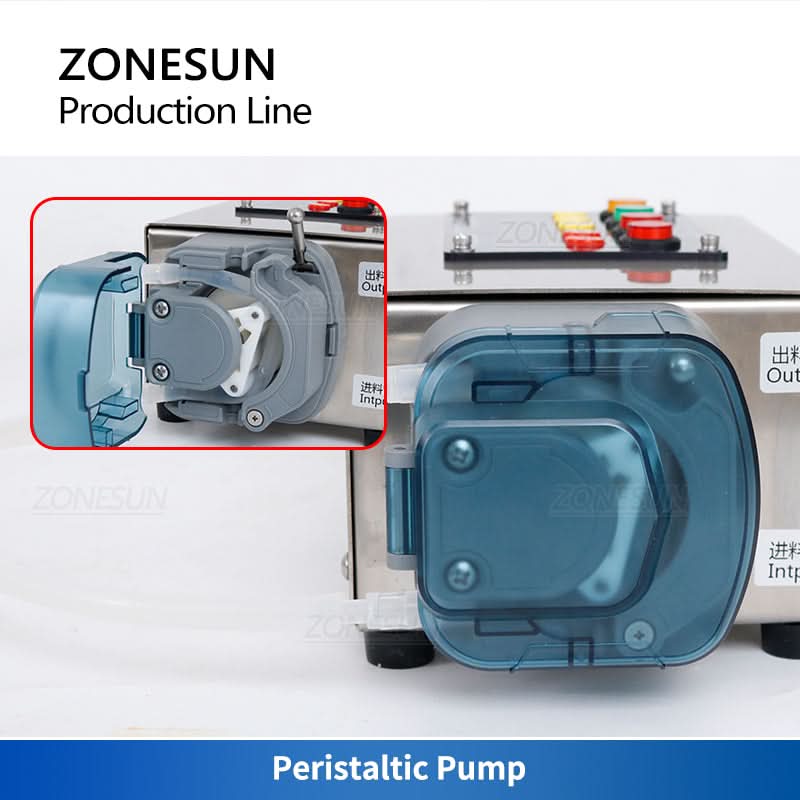

Machine Pump Peristaltic Pump / Magnetic Pump
Production Capacity Approx. 5–15 bottles/min (based on bottle size)
Recommended Filling Range 80–500mL
Max Flow Rate 700mL/min (based on water)
Suitable Bottle Diameter 30–60mm
Suitable Bottle Height 50–150mm

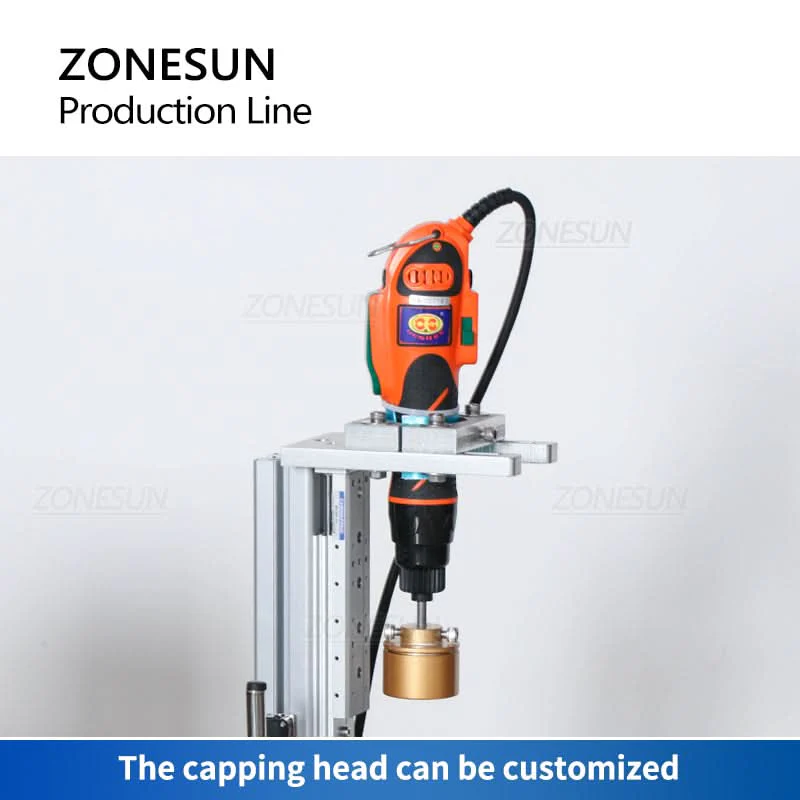

Cap Diameter Customizable
Conveyor Size 600×100mm ×1 + 1200×100mm ×1 (Customizable)
Conveyor Max Load 6kg

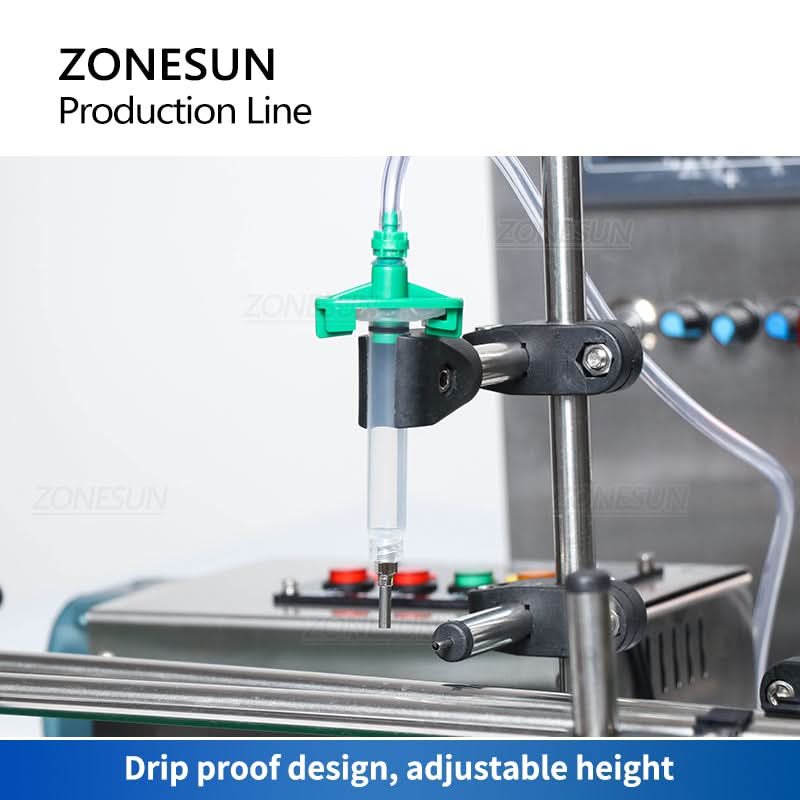

Filling Nozzle Diameter OD 3.3mm
Machine Weight Approx. 20kg
Machine Dimensions Approx. 1200 × 600 × 505mm
The ZONESUN ZS-FAL90S Automatic Liquid Bottle Filling Line is built for space-efficient, small-scale production of low-viscosity liquids. Featuring a compact footprint and smooth conveyor design, this system enables consistent bottle transport and precise filling through either a peristaltic or magnetic pump. Ideal for cosmetics, beverages, and daily chemical industries, it supports a customizable cap diameter and adjustable filling range for flexible packaging needs.
Parameter
Model ZS-FAL90S
Voltage 220V/110V, 50–60Hz
Machine Pump Peristaltic Pump / Magnetic Pump
Production Capacity Approx. 5–15 bottles/min (based on bottle size)
Recommended Filling Range 80–500mL
Max Flow Rate 700mL/min (based on water)
Suitable Bottle Diameter 30–60mm
Suitable Bottle Height 50–150mm
Cap Diameter Customizable
Conveyor Size 600×100mm ×1 + 1200×100mm ×1 (Customizable)
Conveyor Max Load 6kg
Filling Nozzle Diameter OD 3.3mm
Machine Weight Approx. 20kg
Machine Dimensions Approx. 1200 × 600 × 505mm
Original: $1,289.00
-70%$1,289.00
$386.70Description
The ZONESUN ZS-FAL90S Automatic Liquid Bottle Filling Line is built for space-efficient, small-scale production of low-viscosity liquids. Featuring a compact footprint and smooth conveyor design, this system enables consistent bottle transport and precise filling through either a peristaltic or magnetic pump. Ideal for cosmetics, beverages, and daily chemical industries, it supports a customizable cap diameter and adjustable filling range for flexible packaging needs.
Parameter
Model ZS-FAL90S
Voltage 220V/110V, 50–60Hz
Machine Pump Peristaltic Pump / Magnetic Pump
Production Capacity Approx. 5–15 bottles/min (based on bottle size)
Recommended Filling Range 80–500mL
Max Flow Rate 700mL/min (based on water)
Suitable Bottle Diameter 30–60mm
Suitable Bottle Height 50–150mm
Cap Diameter Customizable
Conveyor Size 600×100mm ×1 + 1200×100mm ×1 (Customizable)
Conveyor Max Load 6kg
Filling Nozzle Diameter OD 3.3mm
Machine Weight Approx. 20kg
Machine Dimensions Approx. 1200 × 600 × 505mm
