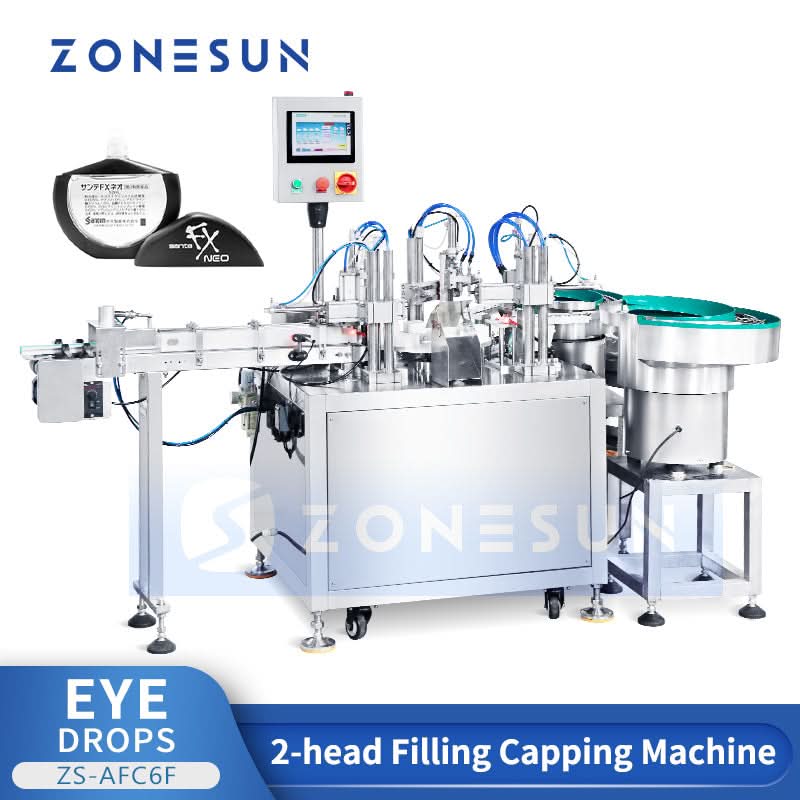

ZONESUN Automatic Eye Drop Filling and Capping Machine ZS-AFC6F

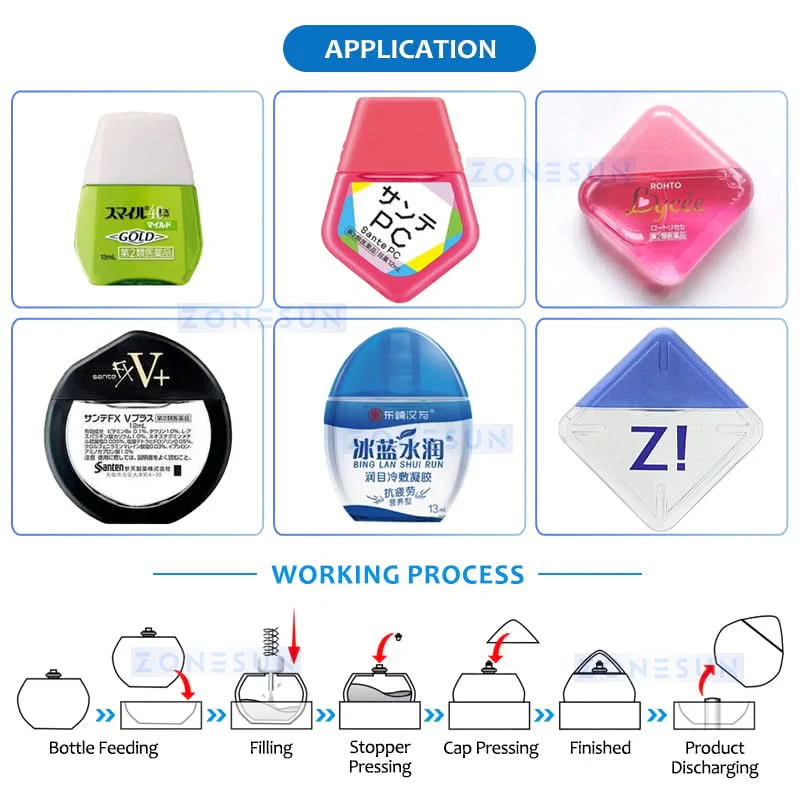

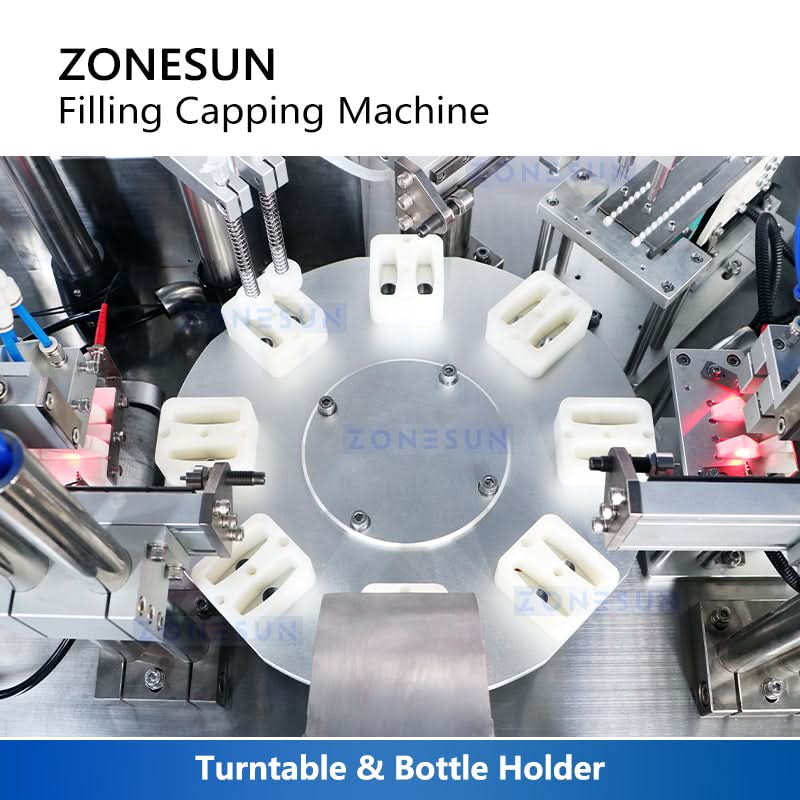

This integrated filling and capping machine is engineered for precise and hygienic production of liquid products such as eye drops. Its rotary disc mechanism allows for synchronized bottle movement across multiple stations, ensuring accurate dosing, secure plug placement, and tight capping—all with minimal manual input. An ideal choice for pharmaceutical and cosmetic manufacturers aiming to boost output and maintain consistent quality control.
Parameter
Machine Model ZS-AFC6F 2-Head Liquid Filling Capping Machine
Power Supply 220V / 110V, 50–60Hz, approx. 2KW
Filling Pump Peristaltic Pump
Filling Range Customizable
Filling Accuracy ±2% (10ml)
Working Speed Approx. 2200–2500 bottles/hour
Air Pressure Approx. 0.6–0.8MPa (Compressor not included)
Machine Size Approx. 2300 × 1100 × 1550mm
Package Size Filling Machine: Approx. 1340 × 950 × 1710mm
Brackets + Vibratory Bowl 1: Approx. 1120 × 460 × 680mm
Vibratory Bowl 2: Approx. 670 × 620 × 670mm
Package Weight Filling Machine: Approx. 286kg
Brackets + Vibratory Bowl 1: Approx. 65kg
Vibratory Bowl 2: Approx. 68kg
This integrated filling and capping machine is engineered for precise and hygienic production of liquid products such as eye drops. Its rotary disc mechanism allows for synchronized bottle movement across multiple stations, ensuring accurate dosing, secure plug placement, and tight capping—all with minimal manual input. An ideal choice for pharmaceutical and cosmetic manufacturers aiming to boost output and maintain consistent quality control.
Parameter
Machine Model ZS-AFC6F 2-Head Liquid Filling Capping Machine
Power Supply 220V / 110V, 50–60Hz, approx. 2KW
Filling Pump Peristaltic Pump
Filling Range Customizable
Filling Accuracy ±2% (10ml)
Working Speed Approx. 2200–2500 bottles/hour
Air Pressure Approx. 0.6–0.8MPa (Compressor not included)
Machine Size Approx. 2300 × 1100 × 1550mm
Package Size Filling Machine: Approx. 1340 × 950 × 1710mm
Brackets + Vibratory Bowl 1: Approx. 1120 × 460 × 680mm
Vibratory Bowl 2: Approx. 670 × 620 × 670mm
Package Weight Filling Machine: Approx. 286kg
Brackets + Vibratory Bowl 1: Approx. 65kg
Vibratory Bowl 2: Approx. 68kg
Description
This integrated filling and capping machine is engineered for precise and hygienic production of liquid products such as eye drops. Its rotary disc mechanism allows for synchronized bottle movement across multiple stations, ensuring accurate dosing, secure plug placement, and tight capping—all with minimal manual input. An ideal choice for pharmaceutical and cosmetic manufacturers aiming to boost output and maintain consistent quality control.
Parameter
Machine Model ZS-AFC6F 2-Head Liquid Filling Capping Machine
Power Supply 220V / 110V, 50–60Hz, approx. 2KW
Filling Pump Peristaltic Pump
Filling Range Customizable
Filling Accuracy ±2% (10ml)
Working Speed Approx. 2200–2500 bottles/hour
Air Pressure Approx. 0.6–0.8MPa (Compressor not included)
Machine Size Approx. 2300 × 1100 × 1550mm
Package Size Filling Machine: Approx. 1340 × 950 × 1710mm
Brackets + Vibratory Bowl 1: Approx. 1120 × 460 × 680mm
Vibratory Bowl 2: Approx. 670 × 620 × 670mm
Package Weight Filling Machine: Approx. 286kg
Brackets + Vibratory Bowl 1: Approx. 65kg
Vibratory Bowl 2: Approx. 68kg
