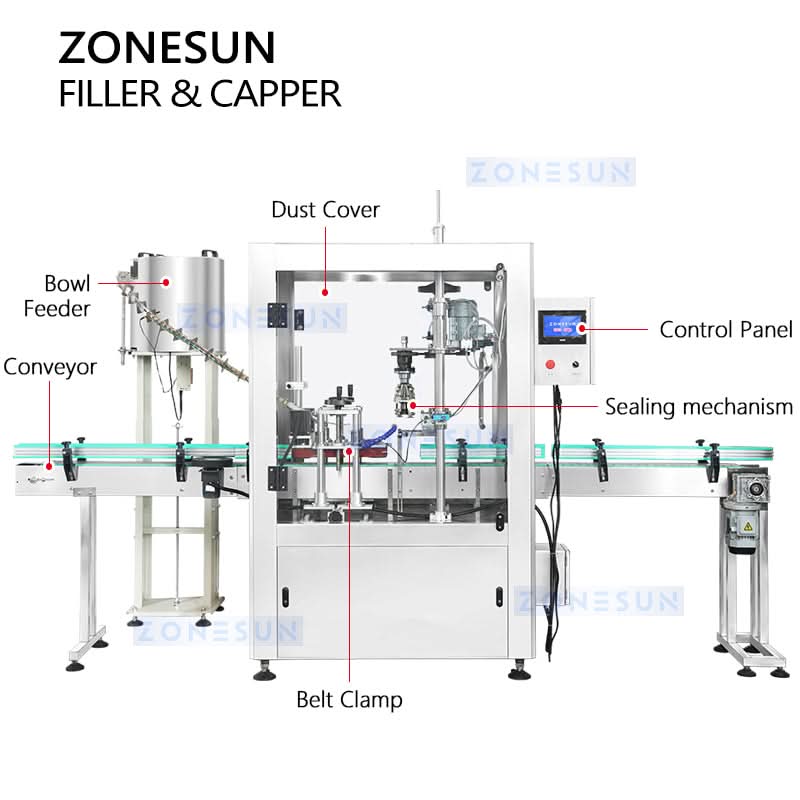

ZONESUN ZS-FAL180B2 Liquid Filler and ROPP Capper Combo for Bottling Line
DESCRIPTION
Streamline your packaging line with the ZONESUN piston filling and ROPP capping machine combo. Designed for precision and reliability, this solution delivers consistent fills and secure seals across various liquid products. Ideal for small to medium-scale production, it boosts efficiency while maintaining premium packaging quality.
Parameter Details
Machine Model ZS-YT4T-4PXD Filling Machine
Voltage 110/220V 50-60HZ, 1KW
Filling Range 10–180ml / 30–500ml / 100–1000ml
Working Speed About 30–100 bottles/min
Air Pressure 0.6–0.8MPa
Filling Accuracy ±1%
Filling Nozzle 4 (can be customized)
Machine Size About 2550×1000×1950mm
Package Size About 1720×960×2090mm
Package Weight About 441kg
Machine Model ZS-XG440Z Capping Machine
Machine Voltage 110/220V 50–60HZ, 1KW
Capacity 1000 bottles/hour
Suitable Cap Size Φ25–38mm
Suitable Bottle Height Approx. 150–320mm
Machine Size Approx. 3550×1700×2250mm
Package Size Main: Approx. 1720×1600×2380mm<br>Vibratory Bowl: Approx. 550×640×1780mm
Package Weight Main: Approx. 640kg<br>Vibratory Bowl: Approx. 123kg
