ZONESUN Monoblock Rotary Filling and Capping Machine ZS-FAL180F3

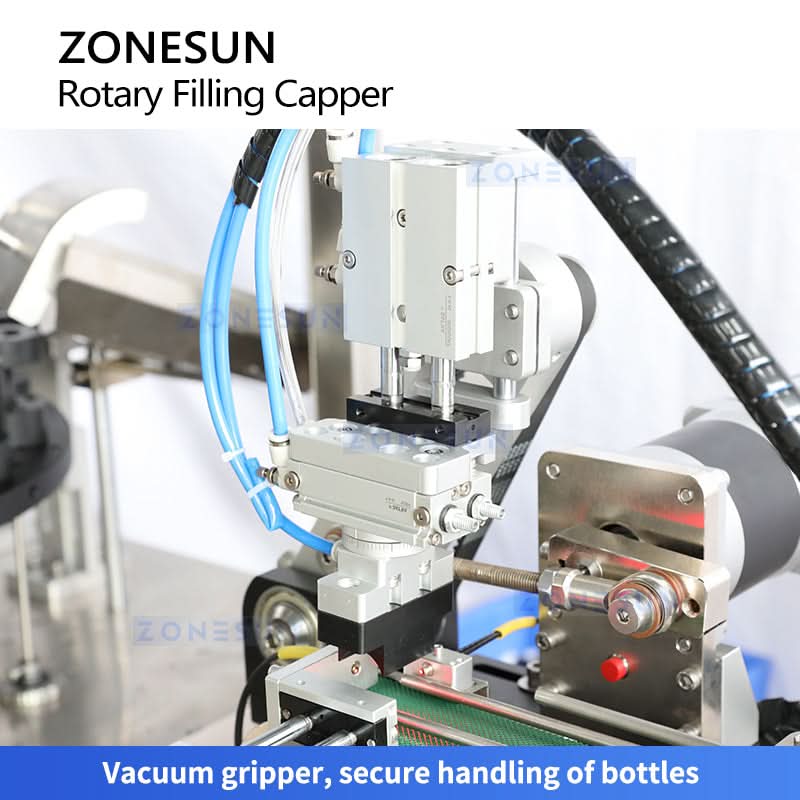

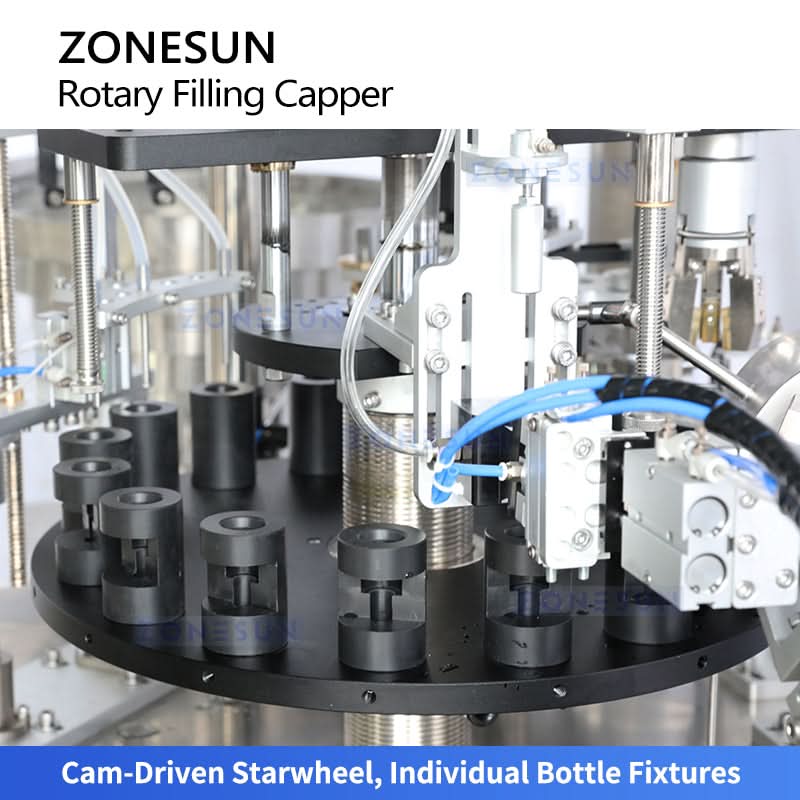

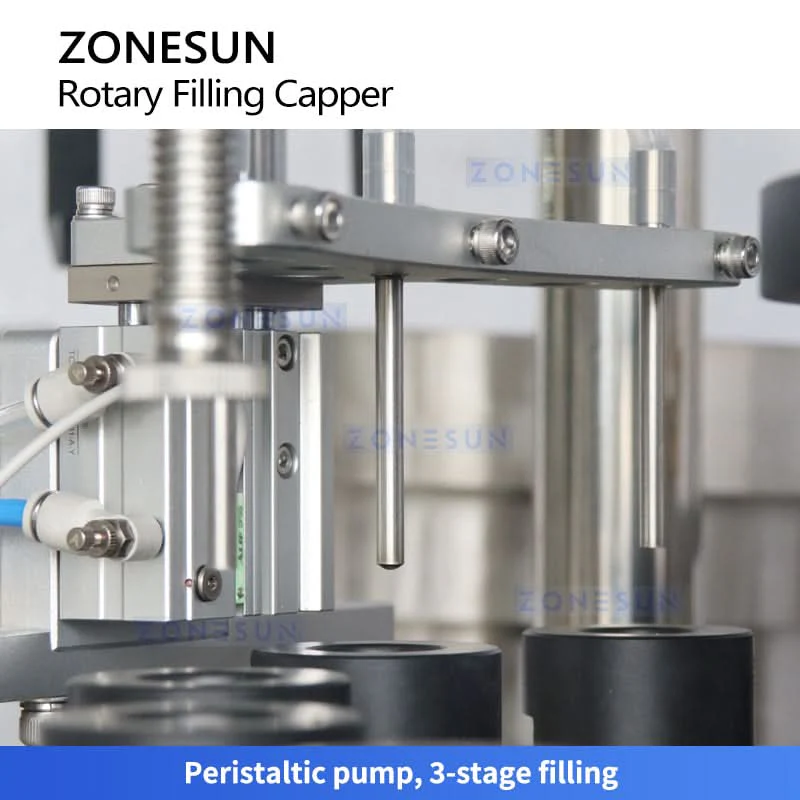

Integrating intelligent bottle handling with precise filling and secure capping, the ZS-FAL180F3 system delivers unmatched automation for high-volume production. Vacuum-guided transport ensures gentle bottle transfer, while orientation detection guarantees alignment before filling. A cam-driven starwheel enables pinpoint positioning at each station, with rapid, accurate peristaltic filling and servo-controlled three-jaw capping for reliable output. Ideal for pharmaceuticals, cosmetics, and essential oil lines.
Parameter
Machine Model ZS-FAL180F3
Voltage 110/220V, 50–60Hz, 4.2KW
Working Air Pressure 0.6–0.8 Mpa
Working Capacity 40 Bottles Per Minute (BPM)
Cover Size Plastic Cover Φ21mm × 15mm (Customizable)
Bottle Size Φ20.8mm × 110mm & Φ24.5mm × 52mm (Plastic, Customizable)
Filling Capacity 20ml (Customizable)
Filling Pump 5L/min Peristaltic Pump
Number of Filling Nozzles 3
Filling Accuracy ±0.2ml Per Pump
Machine Size (L × W × H) Approx. 3500 × 1650 × 1700 mm
Machine Weight Approx. 1000 kg
Integrating intelligent bottle handling with precise filling and secure capping, the ZS-FAL180F3 system delivers unmatched automation for high-volume production. Vacuum-guided transport ensures gentle bottle transfer, while orientation detection guarantees alignment before filling. A cam-driven starwheel enables pinpoint positioning at each station, with rapid, accurate peristaltic filling and servo-controlled three-jaw capping for reliable output. Ideal for pharmaceuticals, cosmetics, and essential oil lines.
Parameter
Machine Model ZS-FAL180F3
Voltage 110/220V, 50–60Hz, 4.2KW
Working Air Pressure 0.6–0.8 Mpa
Working Capacity 40 Bottles Per Minute (BPM)
Cover Size Plastic Cover Φ21mm × 15mm (Customizable)
Bottle Size Φ20.8mm × 110mm & Φ24.5mm × 52mm (Plastic, Customizable)
Filling Capacity 20ml (Customizable)
Filling Pump 5L/min Peristaltic Pump
Number of Filling Nozzles 3
Filling Accuracy ±0.2ml Per Pump
Machine Size (L × W × H) Approx. 3500 × 1650 × 1700 mm
Machine Weight Approx. 1000 kg
Original: $19,699.00
-70%$19,699.00
$5,909.70Description
Integrating intelligent bottle handling with precise filling and secure capping, the ZS-FAL180F3 system delivers unmatched automation for high-volume production. Vacuum-guided transport ensures gentle bottle transfer, while orientation detection guarantees alignment before filling. A cam-driven starwheel enables pinpoint positioning at each station, with rapid, accurate peristaltic filling and servo-controlled three-jaw capping for reliable output. Ideal for pharmaceuticals, cosmetics, and essential oil lines.
Parameter
Machine Model ZS-FAL180F3
Voltage 110/220V, 50–60Hz, 4.2KW
Working Air Pressure 0.6–0.8 Mpa
Working Capacity 40 Bottles Per Minute (BPM)
Cover Size Plastic Cover Φ21mm × 15mm (Customizable)
Bottle Size Φ20.8mm × 110mm & Φ24.5mm × 52mm (Plastic, Customizable)
Filling Capacity 20ml (Customizable)
Filling Pump 5L/min Peristaltic Pump
Number of Filling Nozzles 3
Filling Accuracy ±0.2ml Per Pump
Machine Size (L × W × H) Approx. 3500 × 1650 × 1700 mm
Machine Weight Approx. 1000 kg
