ZONESUN ZS-FAL180B10 Monoblock Steam Vacuum Capper & Piston Filler for Thick Liquids

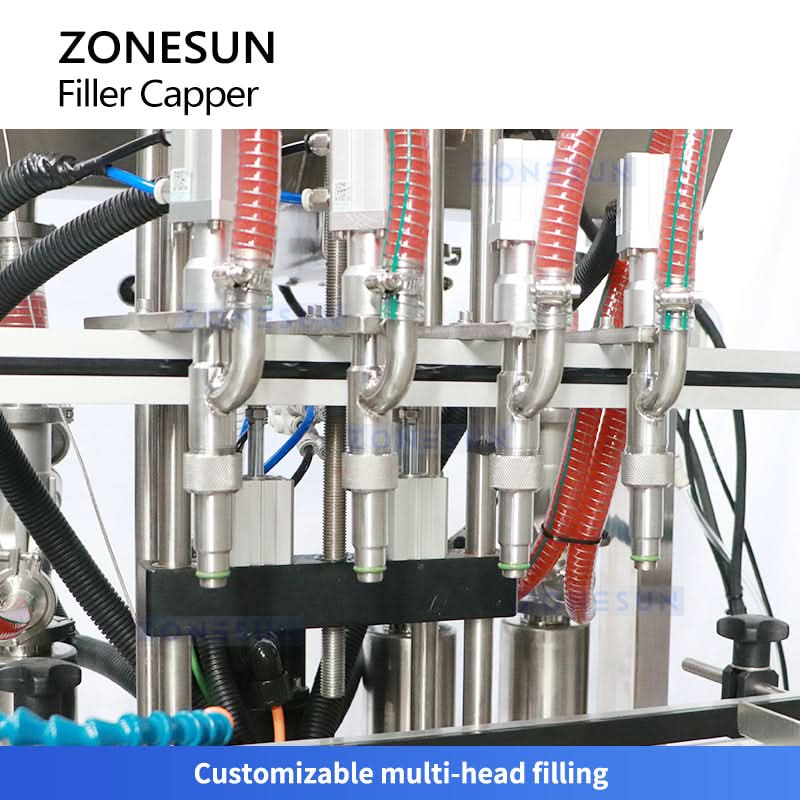

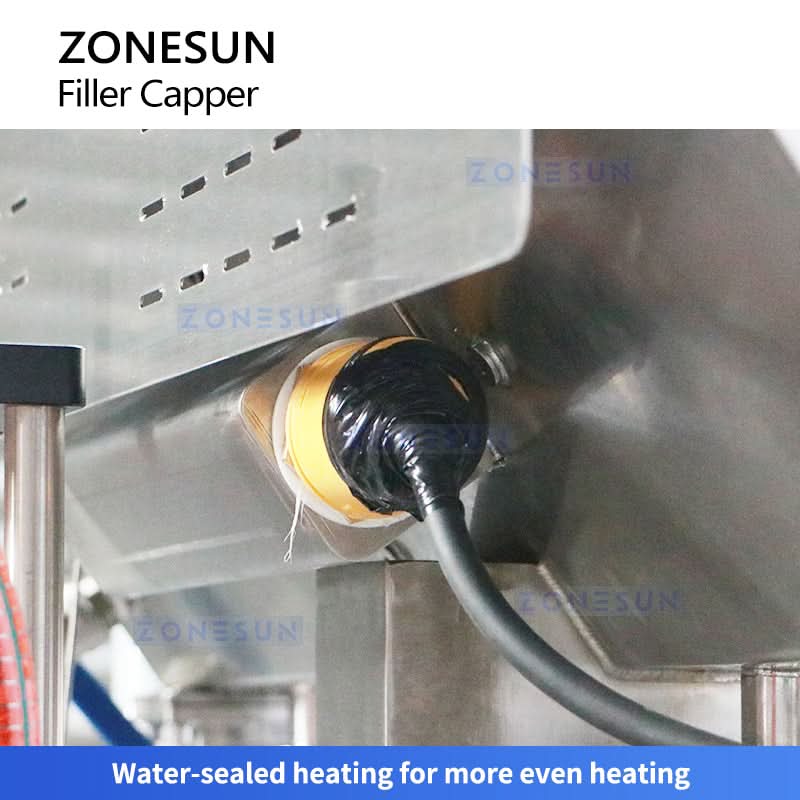

The ZS-FAL180B10 integrates a 4-head piston filling system with a steam vacuum capping unit to deliver precise, airtight sealing for viscous liquids. Its heated hopper ensures optimal flow, while the automatic material pump maintains uninterrupted operation. The steam vacuum capper uses negative pressure to secure caps tightly, making it ideal for packaging syrups, sauces, creams, and other thick formulations. This monoblock solution enhances productivity and packaging integrity across pharmaceutical, cosmetic, and food industries.
Parameter
Machine Model ZS-YT4T-4PH
Voltage 110/220V, 50–60Hz, 1KW
Filling Range 10–180 ml / 30–500 ml / 100–1000 ml
Working Speed Approx. 30–50 bottles per minute
Filling Pump Type Piston pump
Air Pressure 0.6–0.8 MPa
Suitable Temperature Range 30°C ≤ T ≤ 90°C
Filling Accuracy ±1%
Filling Nozzles 4 (customizable)
Machine Size Approx. 2000 × 800 × 1800 mm
Machine Weight Approx. 200 kg
Packaging Size Approx. 2070 × 960 × 2010 mm (for 100–1000 ml)
Packaging Weight Approx. 392 kg (for 100–1000 ml)
The ZS-FAL180B10 integrates a 4-head piston filling system with a steam vacuum capping unit to deliver precise, airtight sealing for viscous liquids. Its heated hopper ensures optimal flow, while the automatic material pump maintains uninterrupted operation. The steam vacuum capper uses negative pressure to secure caps tightly, making it ideal for packaging syrups, sauces, creams, and other thick formulations. This monoblock solution enhances productivity and packaging integrity across pharmaceutical, cosmetic, and food industries.
Parameter
Machine Model ZS-YT4T-4PH
Voltage 110/220V, 50–60Hz, 1KW
Filling Range 10–180 ml / 30–500 ml / 100–1000 ml
Working Speed Approx. 30–50 bottles per minute
Filling Pump Type Piston pump
Air Pressure 0.6–0.8 MPa
Suitable Temperature Range 30°C ≤ T ≤ 90°C
Filling Accuracy ±1%
Filling Nozzles 4 (customizable)
Machine Size Approx. 2000 × 800 × 1800 mm
Machine Weight Approx. 200 kg
Packaging Size Approx. 2070 × 960 × 2010 mm (for 100–1000 ml)
Packaging Weight Approx. 392 kg (for 100–1000 ml)
Original: $43,299.00
-70%$43,299.00
$12,989.70Description
The ZS-FAL180B10 integrates a 4-head piston filling system with a steam vacuum capping unit to deliver precise, airtight sealing for viscous liquids. Its heated hopper ensures optimal flow, while the automatic material pump maintains uninterrupted operation. The steam vacuum capper uses negative pressure to secure caps tightly, making it ideal for packaging syrups, sauces, creams, and other thick formulations. This monoblock solution enhances productivity and packaging integrity across pharmaceutical, cosmetic, and food industries.
Parameter
Machine Model ZS-YT4T-4PH
Voltage 110/220V, 50–60Hz, 1KW
Filling Range 10–180 ml / 30–500 ml / 100–1000 ml
Working Speed Approx. 30–50 bottles per minute
Filling Pump Type Piston pump
Air Pressure 0.6–0.8 MPa
Suitable Temperature Range 30°C ≤ T ≤ 90°C
Filling Accuracy ±1%
Filling Nozzles 4 (customizable)
Machine Size Approx. 2000 × 800 × 1800 mm
Machine Weight Approx. 200 kg
Packaging Size Approx. 2070 × 960 × 2010 mm (for 100–1000 ml)
Packaging Weight Approx. 392 kg (for 100–1000 ml)
