Description

The machine is a compact liquid filling machine and small bottle capping machine equipped with a cam system liquid filler and peristaltic pump filler, ideal for eye drops filling, adhesive filling, and extract bottling. This automatic filling system functions as a reliable pharmaceutical liquid filler, cosmetic bottle filler, and lab liquid filling machine, supporting precise bottle filling and capping for eye dropper bottles and more. Choose the ZONESUN filling machine for efficient, clean, and accurate small-scale liquid production.

Parameter

• Machine Model: ZS-AFC13A
• Machine Voltage: 110/220V 50-60HZ 8KW
• Filling Pump: Peristaltic Pump
• Recommend Filling Range: 45 ml (Customizable)
• Working Speed: 60 BPM (based on material and volume)
• Filling Accuracy: ±2 ml  (based on material and volume)
• Suitable Bottle Size: L52*W24*H94 mm (Customizable)
• Suitable Cap Size: φ18.6*H25.7 mm (Customizable)
• Machine Size: L2318.06*W1975*H1557.53 mm
• Machine Weight: About 1608 kg

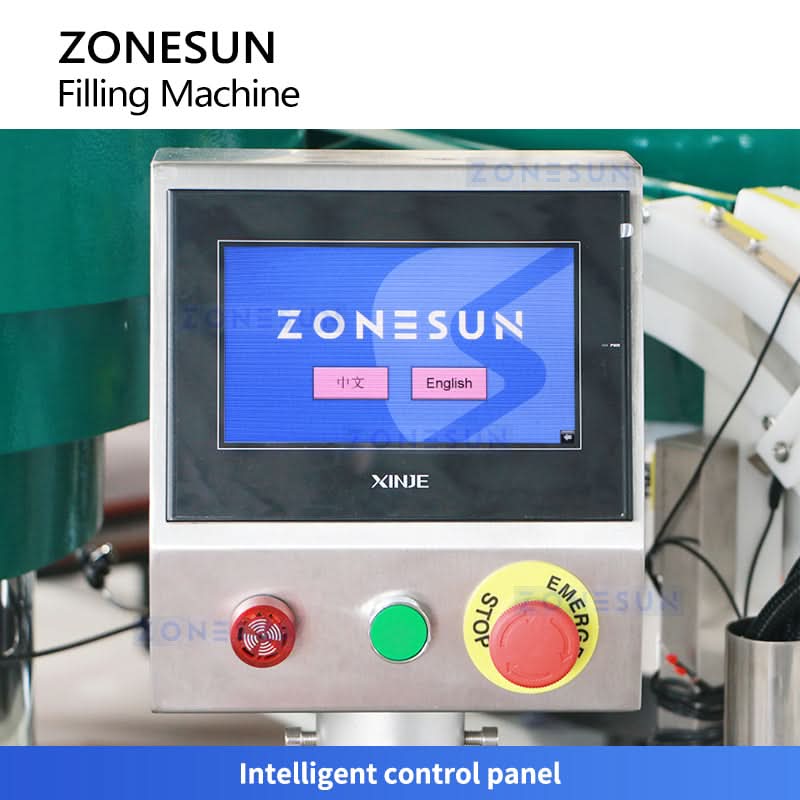

CONTROL PANEL
User-friendly HMI interface for easy operation and real-time monitoring

CUSTOMIZABLE STARWHEEL
Modular star wheel design consolidates all functional parts, cam-driven mechanism ensures stable operation at 60 BPM

PERISTALTIC PUMP
Quantitative filling, contamination-free filling as materials only contact the tubing

VIBRATORY BOWL
Bottles, caps, stoppers are fed orderly through vibratory bowl sorter, these are customized as needed

OUTFEED CONVEYOR
Chain conveyor with larger capacity, it can connect with labeler to realize automated production.

ELECTRIC CIRCUIT
Using branded components, electric circuits are connected neatly to ensure smooth working
