The ZS-AFC23 is a compact monoblock filling and capping machine designed for mascara tubes and cosmetic containers. With manual tube loading and automated piston pump filling, it delivers precise dosing and secure capping in a space-saving footprint. Ideal for cosmetic manufacturers seeking efficient, high-accuracy production with minimal labor.

Parameter

• Machine Model: ZS-AFC23
• Voltage: 220V/110V/380V 50-60Hz
• Power: 100W
• Filling Pump: Piston Pump
• Working Speed: About 1800 pcs/h(depending on tube size)
• Filling Range: 1-20 ml(Can be customized)
• Filling Accuracy: ±0.1 ml
• Hopper Capacity: 20 L
• Hopper Characteristic: Pressurized Hopper(For mascara)(Can be customized with heating and mixing function, which is for lip gloss)
• Machine Size: About 1060*850*1850 mm
• Machine Weight: About 150 kg



Equipped with PLC panel, it is more convenient to set and adjust technical parameters. The language of control panel can be customized as your need.

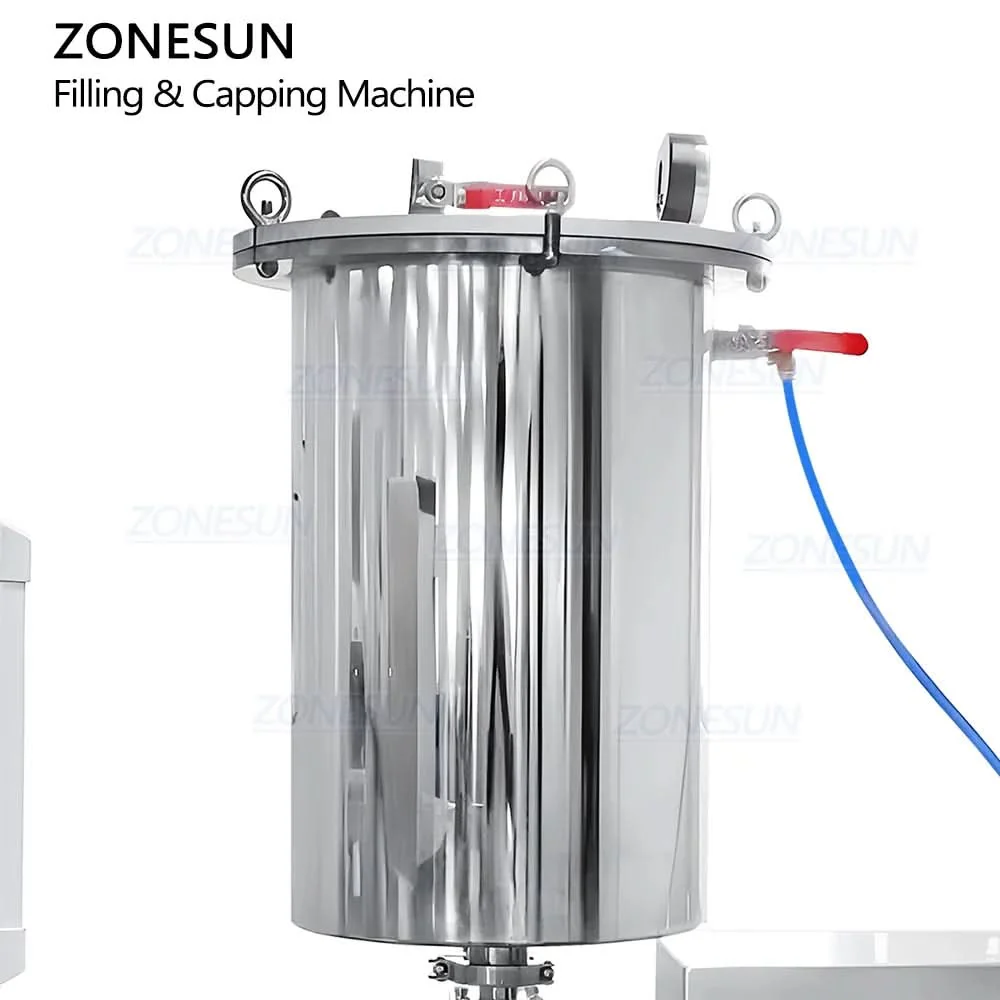

Designed with pressurized hopper, it is suitable for filling mascara. The hopper can be customized with heating and mixing functions, which suits for filling lip gloss. Please contact us if you need it.

Driven by powerful motor, it can tighten caps well. The position of capping head can be adjusted as needed. Easy to operate.

The vibratory bowl is designed for feeding inner plugs, helping to save labor cost. It can be customized according to your need.

The rotary plate is used for fixing and conveying mascara tubes during production, improving efficiency. The size of fixing molds can be customized according to your product size.
