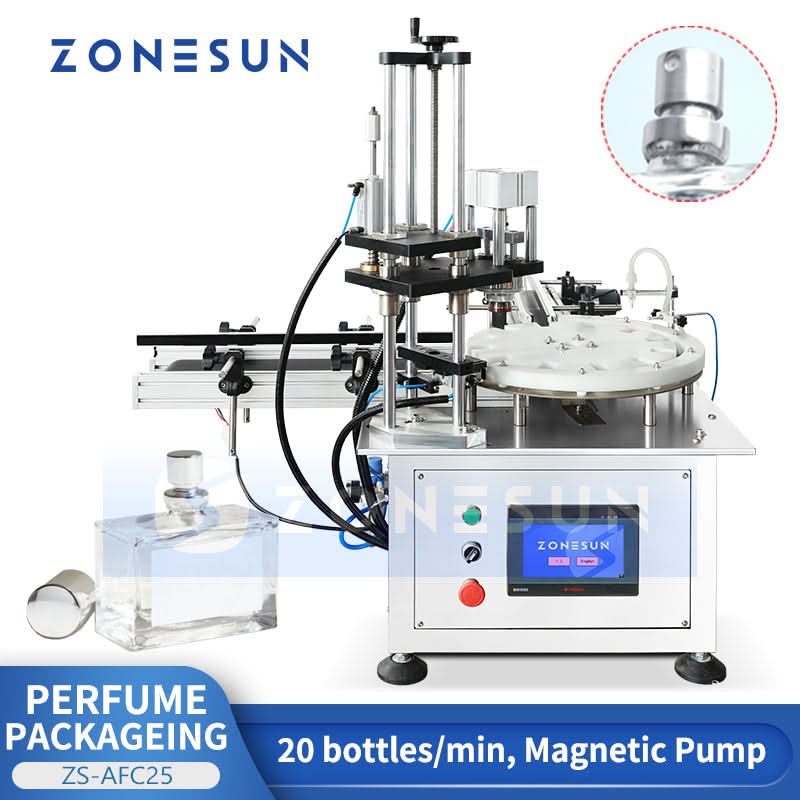

Zonesun ZS-AFC25 Magnetic Pump Perfume Bottle Filling Capping Machine
Compact and efficient, the ZONESUN ZS-AFC25 is an automatic perfume bottle filling and capping machine ideal for small-scale production. It uses a magnetic pump for precise liquid filling and features a rotary platform for smooth operation. Interchangeable crimping heads allow it to handle various bottle sizes, making it a flexible solution for perfume and cosmetic liquid packaging.
PARAMETER
Model: ZS-AFC25
Machine voltage: 110/220V 50-60HZ
Filling pump: Magnetic Pump
Bottle Diameter: 10-60 mm
Max Flow Rate: 4L/min
Recommend Filling Range: ≤10-500ml
Bottle Height: ≤120 mm (Can customize for higher bottles)
Cap Diameter: ≤20 mm
Working Speed: 20 bottles/min (depends on liquid and bottle size)
Conveyor belt size: About 600*145.5 mm
Machine size: About 1106*1199*1243 mm

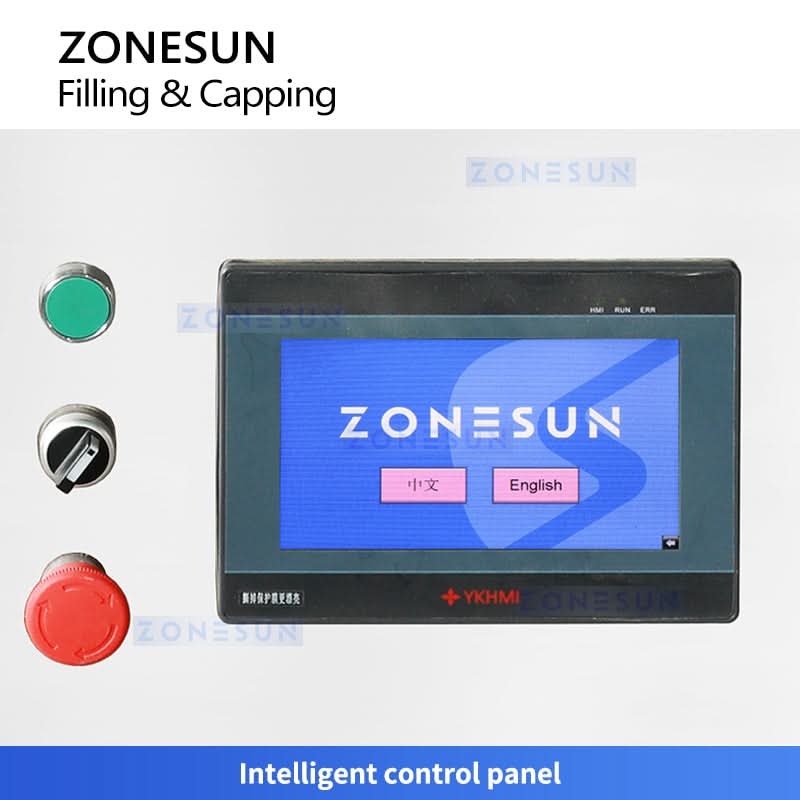

Touch screen control panel makes parameter setting more intuitively, customizable operation language.

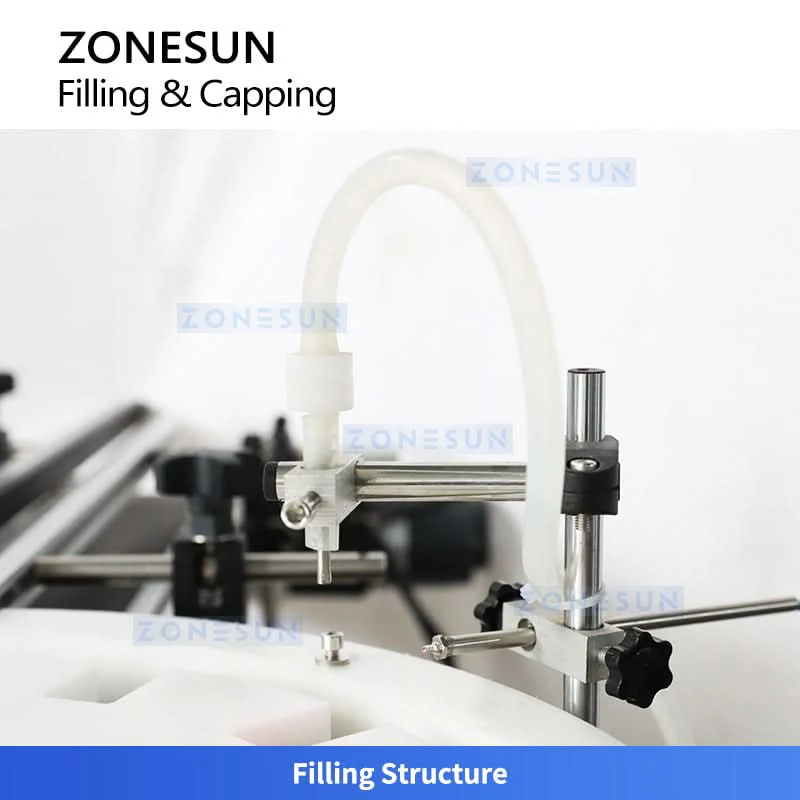

Equipped with SUS316 magnetic pump, nozzle size is changeable for different sizes of bottles.

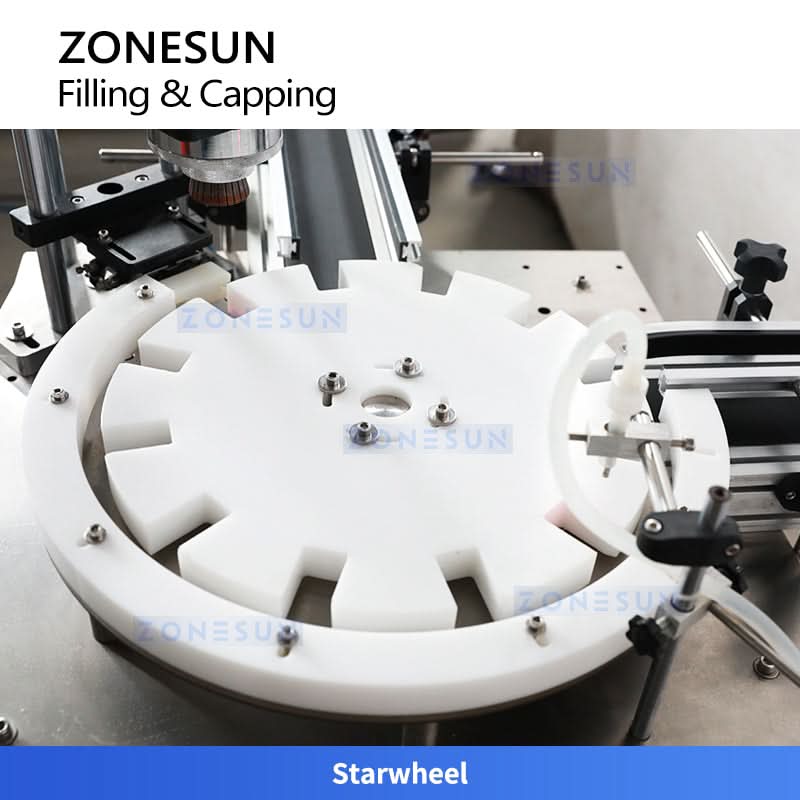

Changeable starwheel suits for different size and shapes of bottles.
Changeable molds for FEA 15/17/20mm perfume spray caps, it widens application range.

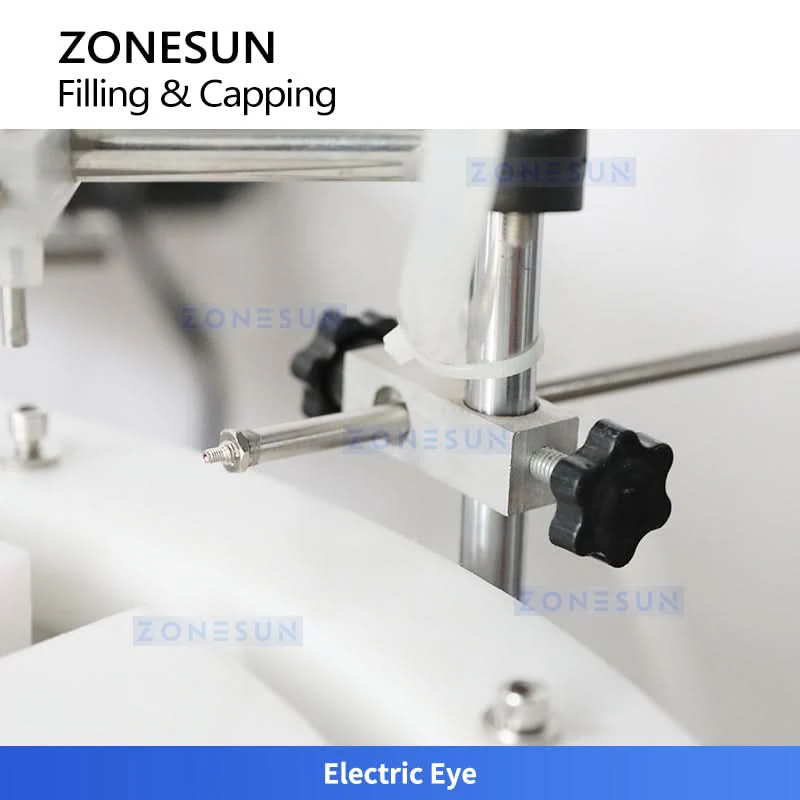

It can detect passing by bottles for realize automated production.
