DESCRIPTION

This monoblock machine utilizes a cam-driven system to achieve speeds of up to 30 bottles per minute, delivering high-precision filling for small-volume liquids such as solvents. Its compact design allows seamless integration with a bottle labeling system, enabling streamlined and automated production. Ideal for laboratories and small-scale operations, it combines reliability, efficiency, and space-saving versatility.

Parameter

\n
• Machine Model: ZS-AFC36
\n
• Voltage: 110/220 V 50-60HZ 2 KW
\n
• Filling Range: 0.2-200 ml
\n
• Filling Pump: Ceramic Pump
\n
• Working Capacity: 20-35 BPM(Based On Filling Range)
\n
• Suitable Bottle Size: φ=10 mm*H=45 mm (Customizable)
\n
• Suitable Cap Size: 12-30 mm(Customizable)
\n
• Filling Accuracy: ±0.5 %
\n
• Air Pressure: 0.5-0.7 Mpa/cm²
\n
• Machine Material: SUS304
\n
• Machine Size: 1750*1400*1800 mm / 68.9*55.12*70.87 inch(L*W*H)
\n

HomeStore

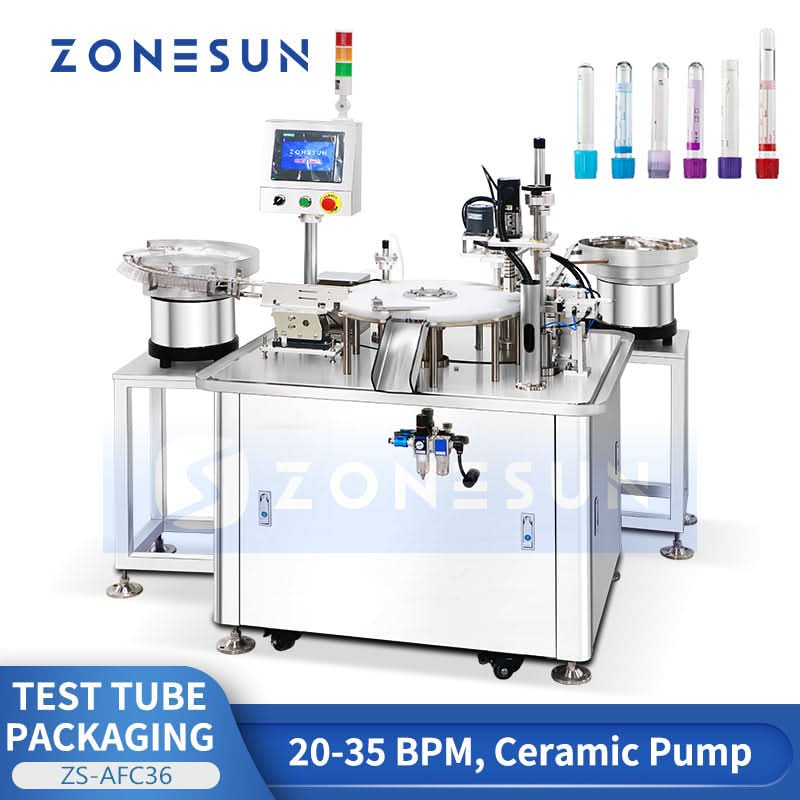

Zonesun ZS-AFC36 High-Precision Reagent Filler and Capper | For Micro Tubes Test Tubes Ceramic Pump

1 / 8

+3

Zonesun ZS-AFC36 High-Precision Reagent Filler and Capper | For Micro Tubes Test Tubes Ceramic Pump

DESCRIPTION

This monoblock machine utilizes a cam-driven system to achieve speeds of up to 30 bottles per minute, delivering high-precision filling for small-volume liquids such as solvents. Its compact design allows seamless integration with a bottle labeling system, enabling streamlined and automated production. Ideal for laboratories and small-scale operations, it combines reliability, efficiency, and space-saving versatility.

Parameter

• Machine Model: ZS-AFC36
• Voltage: 110/220 V 50-60HZ 2 KW
• Filling Range: 0.2-200 ml
• Filling Pump: Ceramic Pump
• Working Capacity: 20-35 BPM(Based On Filling Range)
• Suitable Bottle Size: φ=10 mm*H=45 mm (Customizable)
• Suitable Cap Size: 12-30 mm(Customizable)
• Filling Accuracy: ±0.5 %
• Air Pressure: 0.5-0.7 Mpa/cm²
• Machine Material: SUS304
• Machine Size: 1750*1400*1800 mm / 68.9*55.12*70.87 inch(L*W*H)

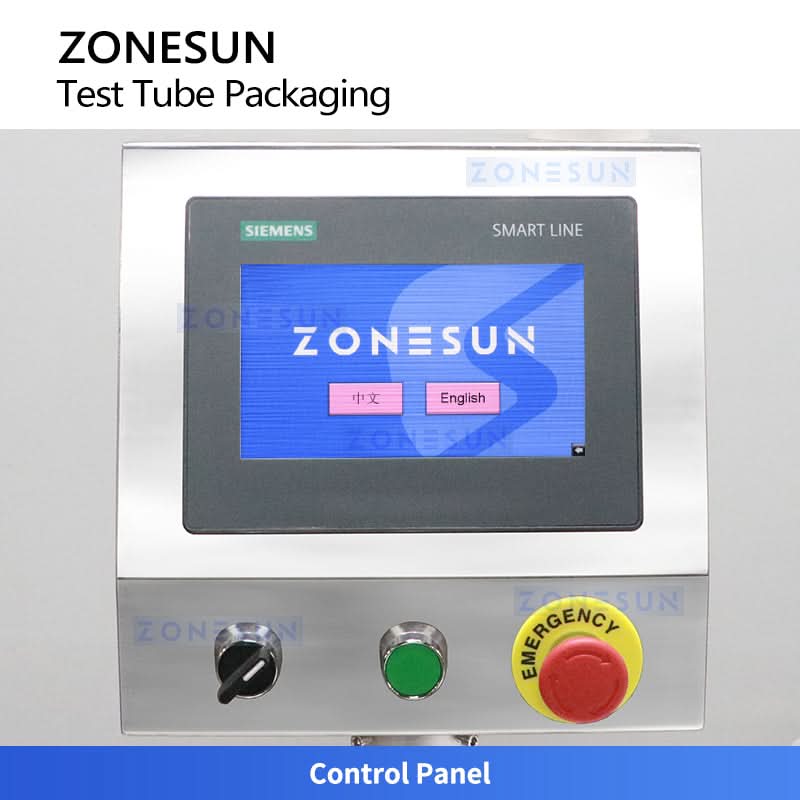

CONTROL PANEL
Touch screen control panel makes parameter setting more intuitively, operation language is customizable.

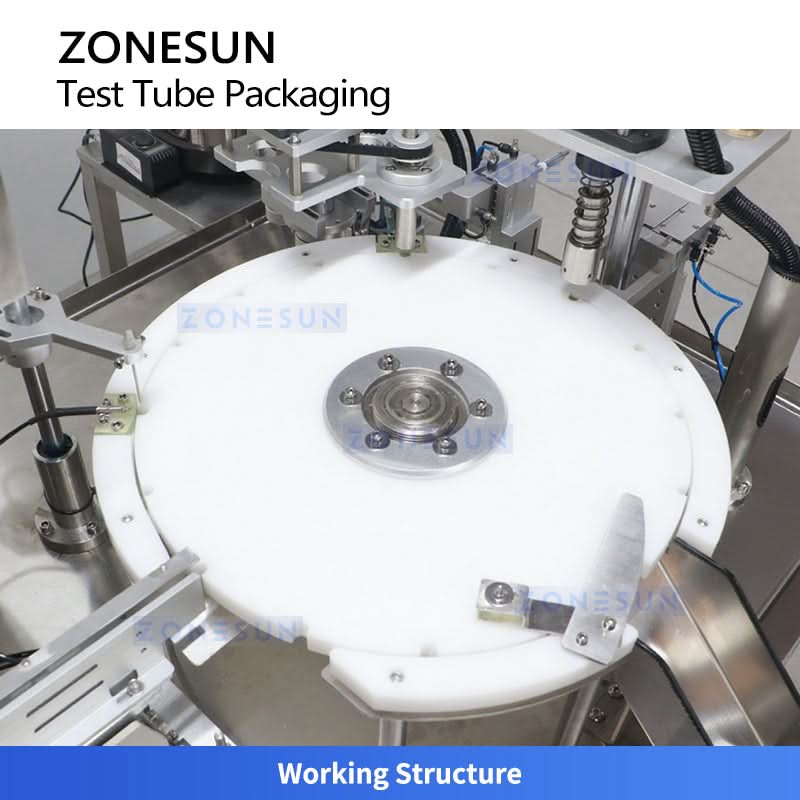

WORKING STRUCTURE
Cam system controls filling, capping work at the same time, it can reach 30 BPM, high working capacity.

CERAMIC PUMP
Suits for small filling volume, it has high filling accuracy.

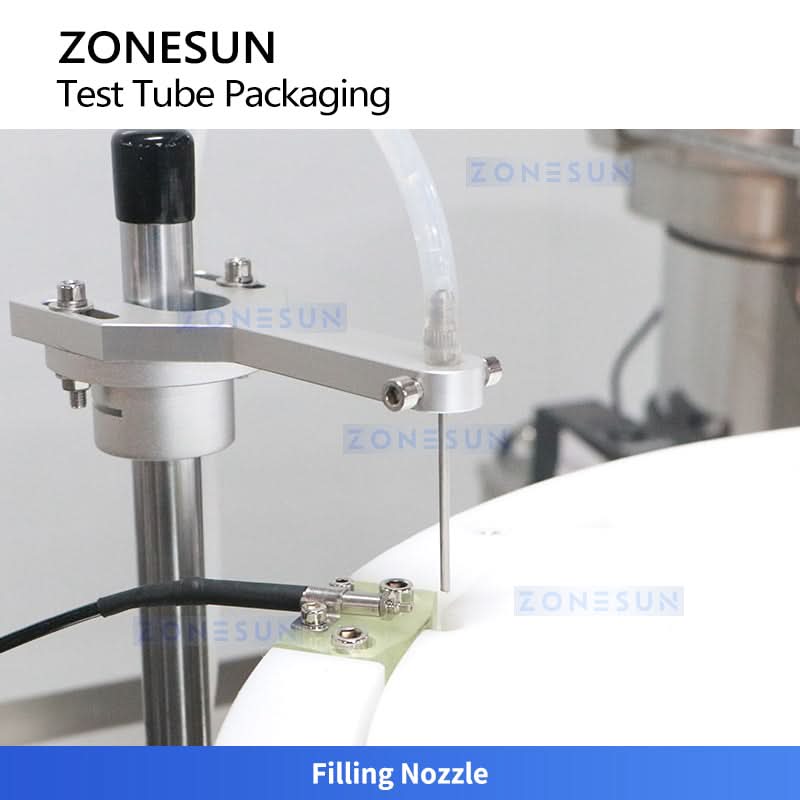

FILLING NOZZLE
Nozzle size is customizable based on containers’ size. Multi filling nozzles are customizable.

ELECTRIC EYE
It detect passing by bottles and control machine to work automatically.

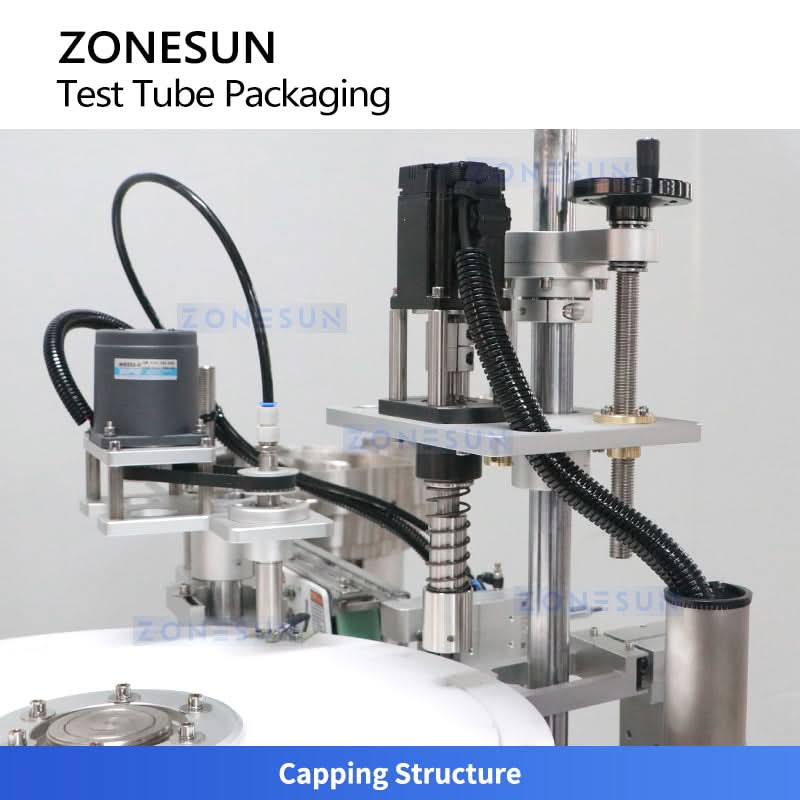

CAPPING STRUCTURE
Controlled by servo motor, capping torsion can be adjusted as production need.

VIBRATORY BOWL
These are customizable based on tube and caps size, it can feed tubes and caps to working structure in time.

DESCRIPTION

This monoblock machine utilizes a cam-driven system to achieve speeds of up to 30 bottles per minute, delivering high-precision filling for small-volume liquids such as solvents. Its compact design allows seamless integration with a bottle labeling system, enabling streamlined and automated production. Ideal for laboratories and small-scale operations, it combines reliability, efficiency, and space-saving versatility.

Parameter

• Machine Model: ZS-AFC36
• Voltage: 110/220 V 50-60HZ 2 KW
• Filling Range: 0.2-200 ml
• Filling Pump: Ceramic Pump
• Working Capacity: 20-35 BPM(Based On Filling Range)
• Suitable Bottle Size: φ=10 mm*H=45 mm (Customizable)
• Suitable Cap Size: 12-30 mm(Customizable)
• Filling Accuracy: ±0.5 %
• Air Pressure: 0.5-0.7 Mpa/cm²
• Machine Material: SUS304
• Machine Size: 1750*1400*1800 mm / 68.9*55.12*70.87 inch(L*W*H)

CONTROL PANEL
Touch screen control panel makes parameter setting more intuitively, operation language is customizable.

WORKING STRUCTURE
Cam system controls filling, capping work at the same time, it can reach 30 BPM, high working capacity.

CERAMIC PUMP
Suits for small filling volume, it has high filling accuracy.

FILLING NOZZLE
Nozzle size is customizable based on containers’ size. Multi filling nozzles are customizable.

ELECTRIC EYE
It detect passing by bottles and control machine to work automatically.

CAPPING STRUCTURE
Controlled by servo motor, capping torsion can be adjusted as production need.

VIBRATORY BOWL
These are customizable based on tube and caps size, it can feed tubes and caps to working structure in time.
