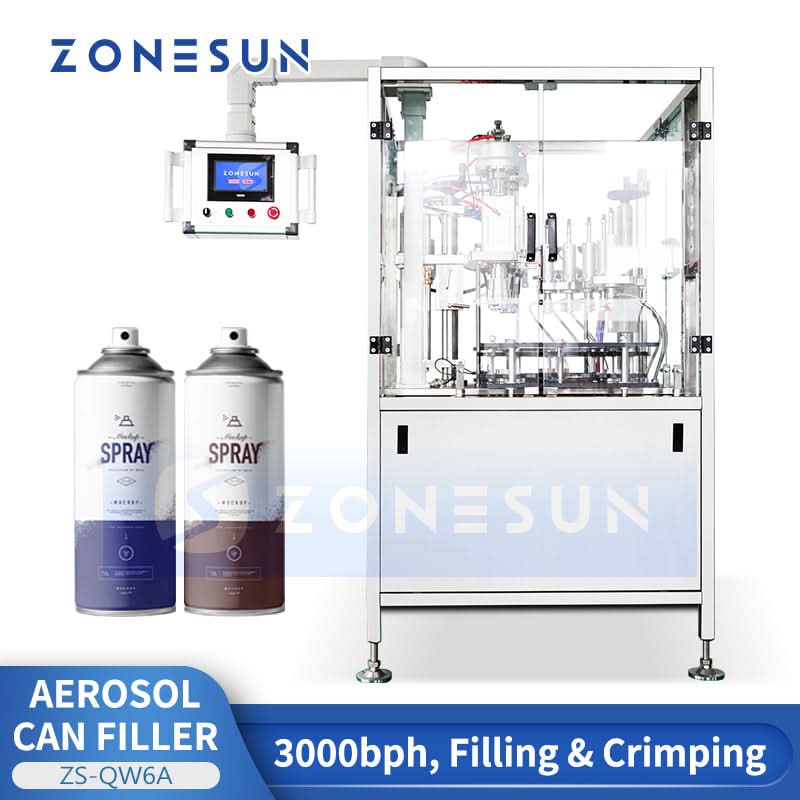

Zonesun ZS-QW6A Aerosol Can Filling and Crimping Machine
This advanced packaging machine is designed for efficient bag-on-valve (BOV) aerosol filling. It automates the process of placing BOV valves into aerosol cans, conveying them to a star wheel station for valve crimping and gas filling (2-in-1 head), followed by a 6-head, three-stage liquid filling process. Capable of producing up to 3000 cans per hour, this machine maximizes your aerosol production output.
PARAMETER
Model: ZS-QW6A
Machine voltage: 110/220V 50-60HZ
Valve size: 1 inch BOV (25.4mm)
Filling range: 50-250ml (customizable)
Working capacity: About 45-50 bottles/min
Working air pressure: 0.4-0.6MPa
Suitable aerosol can diameter: Customizable
Suitable aerosol can height: 70-330mm
Touch screen control panel shows parameter setting more intuitively, easier to debug and operate machine.

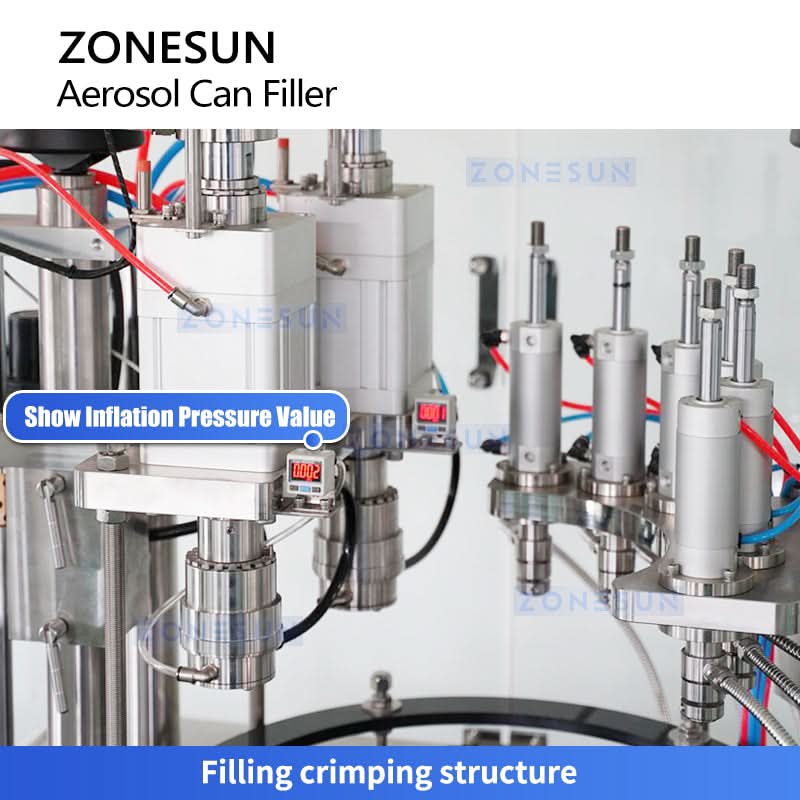

Can finish gas filling, spray cap crimping, liquid filling at the same time.

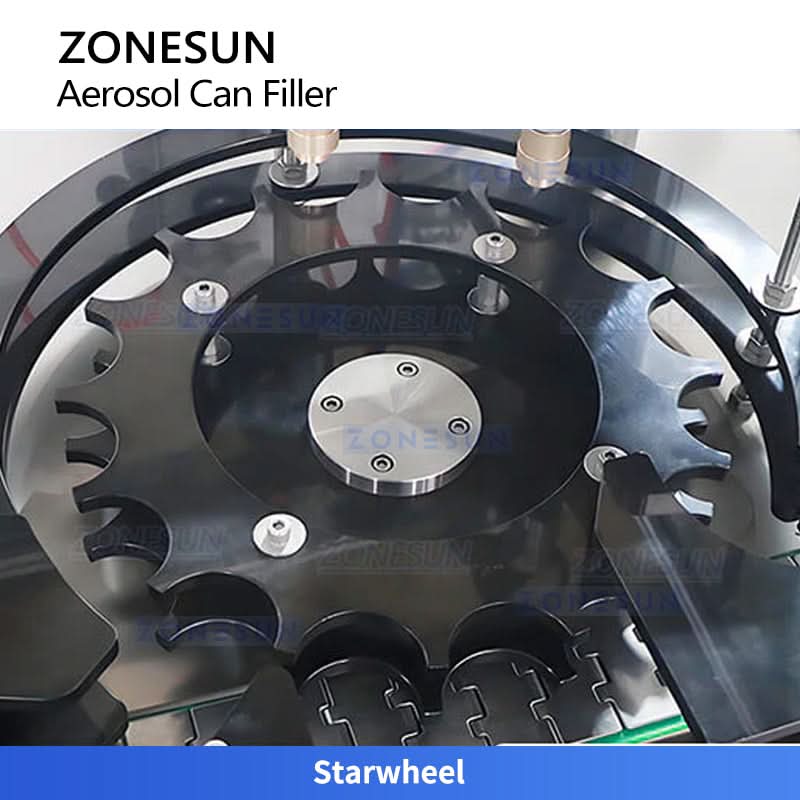

Compact machine body, starwheel is customizable based on size of metal can.

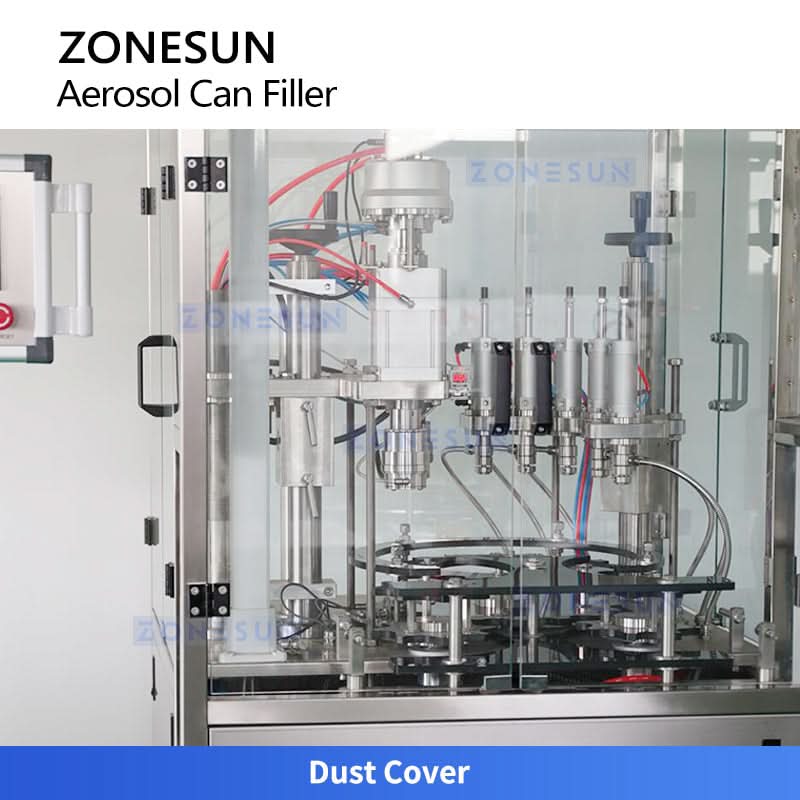

Dust cover can ensure the safety production and production quality during packaging work.
This advanced packaging machine is designed for efficient bag-on-valve (BOV) aerosol filling. It automates the process of placing BOV valves into aerosol cans, conveying them to a star wheel station for valve crimping and gas filling (2-in-1 head), followed by a 6-head, three-stage liquid filling process. Capable of producing up to 3000 cans per hour, this machine maximizes your aerosol production output.
PARAMETER
Model: ZS-QW6A
Machine voltage: 110/220V 50-60HZ
Valve size: 1 inch BOV (25.4mm)
Filling range: 50-250ml (customizable)
Working capacity: About 45-50 bottles/min
Working air pressure: 0.4-0.6MPa
Suitable aerosol can diameter: Customizable
Suitable aerosol can height: 70-330mm
Touch screen control panel shows parameter setting more intuitively, easier to debug and operate machine.
Can finish gas filling, spray cap crimping, liquid filling at the same time.
Compact machine body, starwheel is customizable based on size of metal can.
Dust cover can ensure the safety production and production quality during packaging work.
Original: $50,999.00
-70%$50,999.00
$15,299.70Description
This advanced packaging machine is designed for efficient bag-on-valve (BOV) aerosol filling. It automates the process of placing BOV valves into aerosol cans, conveying them to a star wheel station for valve crimping and gas filling (2-in-1 head), followed by a 6-head, three-stage liquid filling process. Capable of producing up to 3000 cans per hour, this machine maximizes your aerosol production output.
PARAMETER
Model: ZS-QW6A
Machine voltage: 110/220V 50-60HZ
Valve size: 1 inch BOV (25.4mm)
Filling range: 50-250ml (customizable)
Working capacity: About 45-50 bottles/min
Working air pressure: 0.4-0.6MPa
Suitable aerosol can diameter: Customizable
Suitable aerosol can height: 70-330mm
Touch screen control panel shows parameter setting more intuitively, easier to debug and operate machine.
Can finish gas filling, spray cap crimping, liquid filling at the same time.
Compact machine body, starwheel is customizable based on size of metal can.
Dust cover can ensure the safety production and production quality during packaging work.
