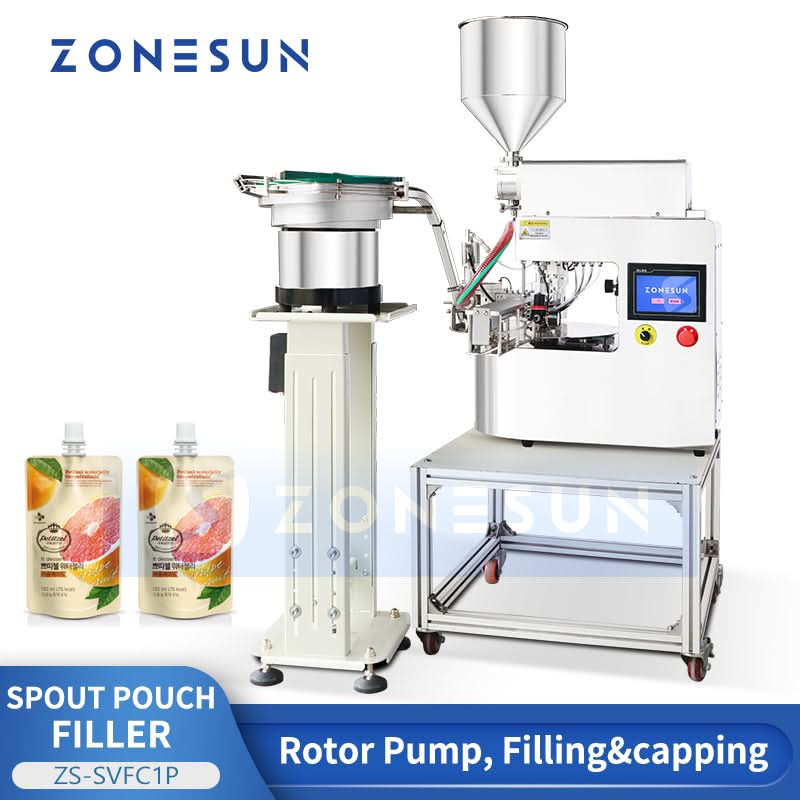

Spout Pouch Filling and Capping Machine with Automatic Cap Feeder and Pouch Feeding System
\nThis automatic spout pouch rotor lobe pump filling and capping machine is specially designed for filling liquid orpaste products into self-standing pouches with spouts. It features an integrated automatic cap feeder for efficient and precise cap placement, as well as a pouch feeding device that ensures smooth and continuous pouch infeed, greatly enhancing production efficiency. The machine performs automatic filling, cap placement, and capping with high accuracy . It is ideal for applications in food, beverage, cosmetics, and household product industries.
\nThis machine is suitable for products such as juice, yogurt, sauce, puree or other thick paste .
\nMachine Model：ZS-SVFC1P
Voltage：110/220V 50-60HZ 2KW
Filling range：100-2000 g(customizable, ＜5000g)
Working capacity：15-20 bags/min(based on filling range)
Filling pump：Rotor Pump
Filling accuracy：±2g
Air pressure：0.5-0.8 Mpa
Air consumption：0.5 m³/min
Hopper size：30L
Machine size：About 1810*1320*1730 mm
Machine weight：About 80 kg
![\"ZONESUN](\"https://cdn.shopify.com/s/files/1/0016/7949/1129/files/944_01_deeadb44-e44d-461b-adcb-a5f9250b15d4.jpg?v=1755479894\")
![\"ZONESUN](\"https://cdn.shopify.com/s/files/1/0016/7949/1129/files/944_02_dac4bf99-4f12-41ee-89aa-abf09409c267.jpg?v=1755479893\")
![\"ZONESUN](\"https://cdn.shopify.com/s/files/1/0016/7949/1129/files/944_03_cb6dcc59-ec9d-4297-bf85-edd417808dea.jpg?v=1750928118\")
![\"ZONESUN](\"https://cdn.shopify.com/s/files/1/0016/7949/1129/files/944_04_eba9aecd-0d60-4f18-9058-40a153065af9.jpg?v=1750928121\")
![\"ZONESUN](\"https://cdn.shopify.com/s/files/1/0016/7949/1129/files/944_05_fcc10163-939b-46aa-8329-ab919581493c.jpg?v=1750928125\")
![\"ZONESUN](\"https://cdn.shopify.com/s/files/1/0016/7949/1129/files/944_06_ddf2884c-610d-4037-8a18-bfd855095c2d.jpg?v=1750928126\")

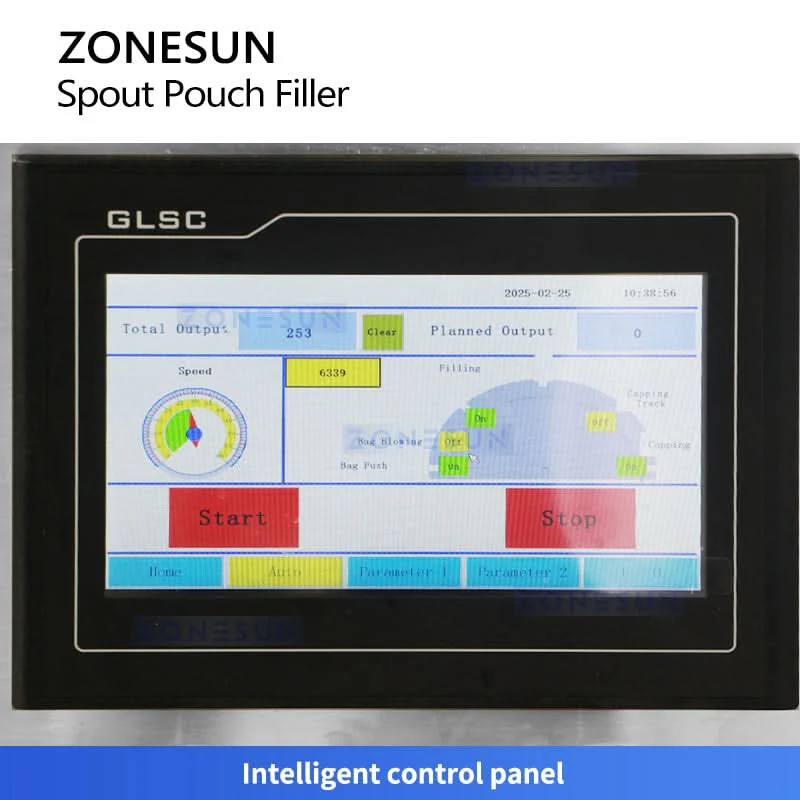

CONTROL PANEL
\nParameter setting shows more intuitive, set filling volume through control panel directly.
\n![\"ZONESUN](\"https://cdn.shopify.com/s/files/1/0016/7949/1129/files/944_07_bd8be7ce-8707-444f-9fbb-757dd39acb77.jpg?v=1750928125\")

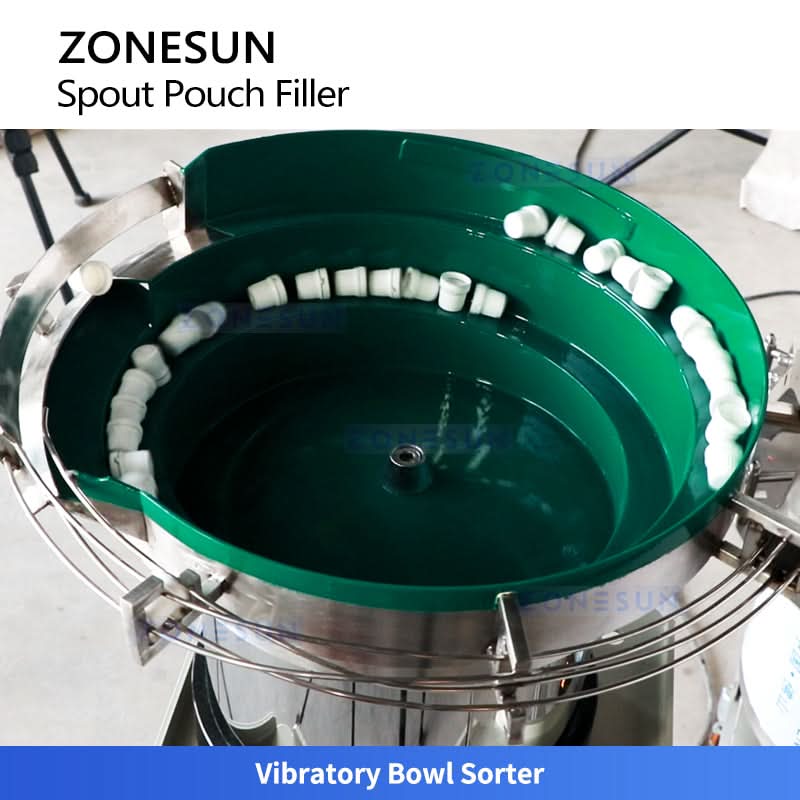

VIBRATORY BOWL
\nCan arrange caps and supply caps to cap placing structure, ensures smooth working.
\n![\"ZONESUN](\"https://cdn.shopify.com/s/files/1/0016/7949/1129/files/944_08_b5f7c265-31da-4626-9b28-bd63567d3307.jpg?v=1750928126\")
ELECTRIC EYE
\nCan detect passing by pouches and control the automated work.
\n![\"ZONESUN](\"https://cdn.shopify.com/s/files/1/0016/7949/1129/files/944_09_540e95e0-a615-4cb5-bf8a-8d25e8e27449.jpg?v=1750928125\")

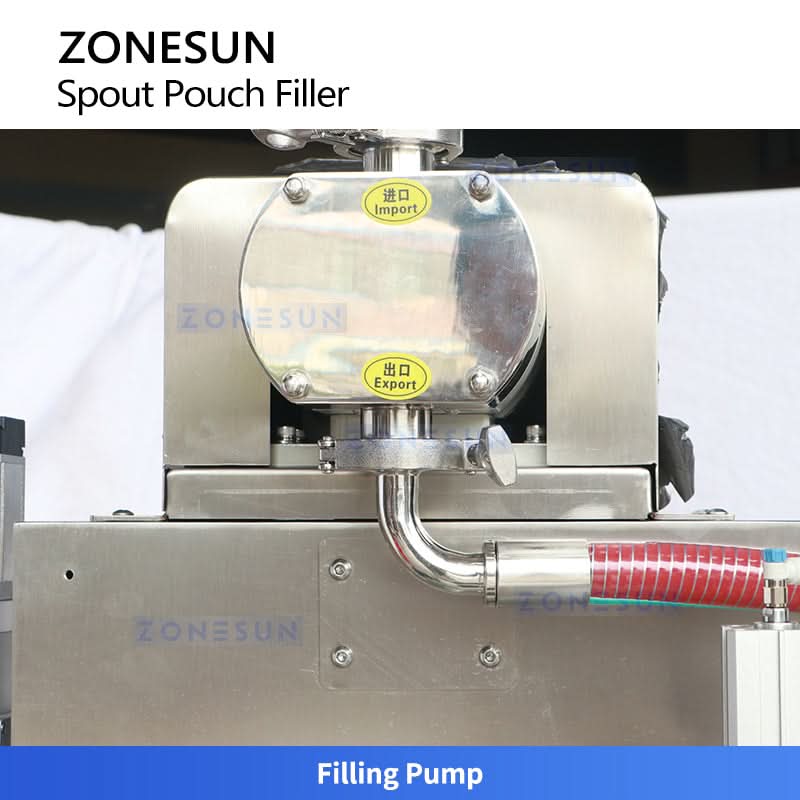

FILLING PUMP
\nUsing rotor lobe pump to fill paste into pouch, it has wider filling range (100-2000g), also suitable for paste with small soft particles.
\n![\"ZONESUN](\"https://cdn.shopify.com/s/files/1/0016/7949/1129/files/944_10_7b2d2558-ef5b-4aae-9b2d-9bdd87f4ef83.jpg?v=1750928125\")

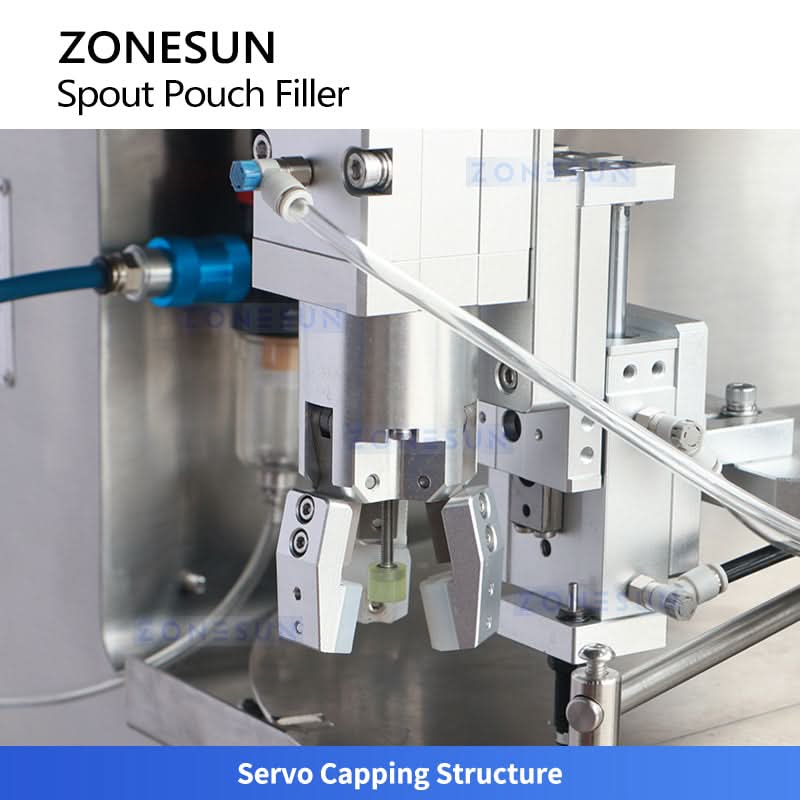

SERVO CAPPING
\nSuitable for screw-on caps, the servo motor controls capping work, this ensures capping accuracy.
\n![\"ZONESUN](\"https://cdn.shopify.com/s/files/1/0016/7949/1129/files/944_11_e08f75e3-4b10-4a24-ba12-19a5c42fb1bb.jpg?v=1750928123\")
![\"ZONESUN](\"https://cdn.shopify.com/s/files/1/0016/7949/1129/files/944_12_0af811f0-621e-4090-8563-cd1e54d57955.jpg?v=1750928123\")
Zonesun ZS-SVFC1P Automatic Spout Pouch Filling and Capping Machine Stand-Up Liquid Bags
Spout Pouch Filling and Capping Machine with Automatic Cap Feeder and Pouch Feeding System
This automatic spout pouch rotor lobe pump filling and capping machine is specially designed for filling liquid orpaste products into self-standing pouches with spouts. It features an integrated automatic cap feeder for efficient and precise cap placement, as well as a pouch feeding device that ensures smooth and continuous pouch infeed, greatly enhancing production efficiency. The machine performs automatic filling, cap placement, and capping with high accuracy . It is ideal for applications in food, beverage, cosmetics, and household product industries.
This machine is suitable for products such as juice, yogurt, sauce, puree or other thick paste .
Machine Model：ZS-SVFC1P
Voltage：110/220V 50-60HZ 2KW
Filling range：100-2000 g(customizable, ＜5000g)
Working capacity：15-20 bags/min(based on filling range)
Filling pump：Rotor Pump
Filling accuracy：±2g
Air pressure：0.5-0.8 Mpa
Air consumption：0.5 m³/min
Hopper size：30L
Machine size：About 1810*1320*1730 mm
Machine weight：About 80 kg
CONTROL PANEL
Parameter setting shows more intuitive, set filling volume through control panel directly.
VIBRATORY BOWL
Can arrange caps and supply caps to cap placing structure, ensures smooth working.
ELECTRIC EYE
Can detect passing by pouches and control the automated work.
FILLING PUMP
Using rotor lobe pump to fill paste into pouch, it has wider filling range (100-2000g), also suitable for paste with small soft particles.
SERVO CAPPING
Suitable for screw-on caps, the servo motor controls capping work, this ensures capping accuracy.
Spout Pouch Filling and Capping Machine with Automatic Cap Feeder and Pouch Feeding System
This automatic spout pouch rotor lobe pump filling and capping machine is specially designed for filling liquid orpaste products into self-standing pouches with spouts. It features an integrated automatic cap feeder for efficient and precise cap placement, as well as a pouch feeding device that ensures smooth and continuous pouch infeed, greatly enhancing production efficiency. The machine performs automatic filling, cap placement, and capping with high accuracy . It is ideal for applications in food, beverage, cosmetics, and household product industries.
This machine is suitable for products such as juice, yogurt, sauce, puree or other thick paste .
Machine Model：ZS-SVFC1P
Voltage：110/220V 50-60HZ 2KW
Filling range：100-2000 g(customizable, ＜5000g)
Working capacity：15-20 bags/min(based on filling range)
Filling pump：Rotor Pump
Filling accuracy：±2g
Air pressure：0.5-0.8 Mpa
Air consumption：0.5 m³/min
Hopper size：30L
Machine size：About 1810*1320*1730 mm
Machine weight：About 80 kg
CONTROL PANEL
Parameter setting shows more intuitive, set filling volume through control panel directly.
VIBRATORY BOWL
Can arrange caps and supply caps to cap placing structure, ensures smooth working.
ELECTRIC EYE
Can detect passing by pouches and control the automated work.
FILLING PUMP
Using rotor lobe pump to fill paste into pouch, it has wider filling range (100-2000g), also suitable for paste with small soft particles.
SERVO CAPPING
Suitable for screw-on caps, the servo motor controls capping work, this ensures capping accuracy.
Original: $6,099.00
-70%$6,099.00
$1,829.70Description
Spout Pouch Filling and Capping Machine with Automatic Cap Feeder and Pouch Feeding System
This automatic spout pouch rotor lobe pump filling and capping machine is specially designed for filling liquid orpaste products into self-standing pouches with spouts. It features an integrated automatic cap feeder for efficient and precise cap placement, as well as a pouch feeding device that ensures smooth and continuous pouch infeed, greatly enhancing production efficiency. The machine performs automatic filling, cap placement, and capping with high accuracy . It is ideal for applications in food, beverage, cosmetics, and household product industries.
This machine is suitable for products such as juice, yogurt, sauce, puree or other thick paste .
Machine Model：ZS-SVFC1P
Voltage：110/220V 50-60HZ 2KW
Filling range：100-2000 g(customizable, ＜5000g)
Working capacity：15-20 bags/min(based on filling range)
Filling pump：Rotor Pump
Filling accuracy：±2g
Air pressure：0.5-0.8 Mpa
Air consumption：0.5 m³/min
Hopper size：30L
Machine size：About 1810*1320*1730 mm
Machine weight：About 80 kg
CONTROL PANEL
Parameter setting shows more intuitive, set filling volume through control panel directly.
VIBRATORY BOWL
Can arrange caps and supply caps to cap placing structure, ensures smooth working.
ELECTRIC EYE
Can detect passing by pouches and control the automated work.
FILLING PUMP
Using rotor lobe pump to fill paste into pouch, it has wider filling range (100-2000g), also suitable for paste with small soft particles.
SERVO CAPPING
Suitable for screw-on caps, the servo motor controls capping work, this ensures capping accuracy.
