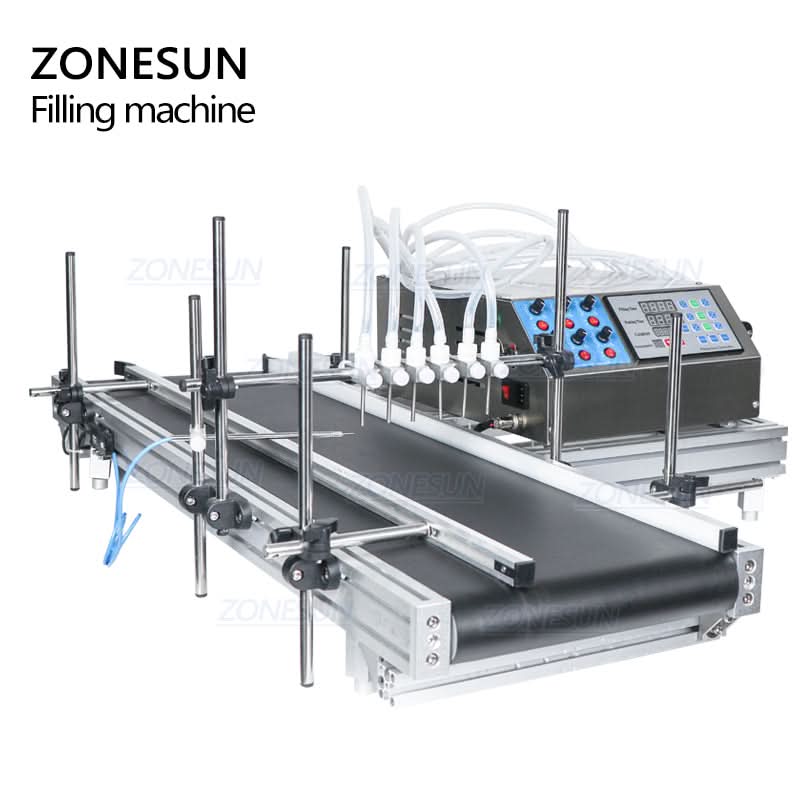

ZONESUN ZS-DTPP6B Peristaltic Pump Liquid Filling Machine with Conveyor Belt
The ZS-DTPP6B is a compact, fully automatic liquid filling machine designed for precise dispensing of small-volume liquids such as solvents, essential oils, and reagents. Equipped with six independently controlled nozzles and a peristaltic pump system, it ensures hygienic, contact-free filling. Ideal for pharmaceuticals, cosmetics, daily chemicals, and food applications, this machine boosts productivity while maintaining high accuracy and cleanliness. Its desktop design and customizable bottle tray make it versatile for various production needs.
Item Details
Machine Model ZS-DTPP6B
Power Supply AC 110V/220V, 50Hz–60Hz, 60W × 6
Filling Range ≤50ml
Maximum Flow 650ml/min per nozzle (based on water)
Filling Nozzles 6 (customizable based on user requirements)
Working Speed 40–50 bottles/min (based on 50ml water)
Filling Accuracy ≤±1% (for water)
Filling Nozzle Diameter 4mm
Delay Range 0.01–999.9s
Conveyor Size 1080 × 350mm (L × W)
Machine Size Approx. 320 × 440 × 300mm (excluding conveyor)
Net Weight Approx. 31kg
The ZS-DTPP6B is a compact, fully automatic liquid filling machine designed for precise dispensing of small-volume liquids such as solvents, essential oils, and reagents. Equipped with six independently controlled nozzles and a peristaltic pump system, it ensures hygienic, contact-free filling. Ideal for pharmaceuticals, cosmetics, daily chemicals, and food applications, this machine boosts productivity while maintaining high accuracy and cleanliness. Its desktop design and customizable bottle tray make it versatile for various production needs.
Item Details
Machine Model ZS-DTPP6B
Power Supply AC 110V/220V, 50Hz–60Hz, 60W × 6
Filling Range ≤50ml
Maximum Flow 650ml/min per nozzle (based on water)
Filling Nozzles 6 (customizable based on user requirements)
Working Speed 40–50 bottles/min (based on 50ml water)
Filling Accuracy ≤±1% (for water)
Filling Nozzle Diameter 4mm
Delay Range 0.01–999.9s
Conveyor Size 1080 × 350mm (L × W)
Machine Size Approx. 320 × 440 × 300mm (excluding conveyor)
Net Weight Approx. 31kg
Original: $1,798.99
-70%$1,798.99
$539.70Description
The ZS-DTPP6B is a compact, fully automatic liquid filling machine designed for precise dispensing of small-volume liquids such as solvents, essential oils, and reagents. Equipped with six independently controlled nozzles and a peristaltic pump system, it ensures hygienic, contact-free filling. Ideal for pharmaceuticals, cosmetics, daily chemicals, and food applications, this machine boosts productivity while maintaining high accuracy and cleanliness. Its desktop design and customizable bottle tray make it versatile for various production needs.
Item Details
Machine Model ZS-DTPP6B
Power Supply AC 110V/220V, 50Hz–60Hz, 60W × 6
Filling Range ≤50ml
Maximum Flow 650ml/min per nozzle (based on water)
Filling Nozzles 6 (customizable based on user requirements)
Working Speed 40–50 bottles/min (based on 50ml water)
Filling Accuracy ≤±1% (for water)
Filling Nozzle Diameter 4mm
Delay Range 0.01–999.9s
Conveyor Size 1080 × 350mm (L × W)
Machine Size Approx. 320 × 440 × 300mm (excluding conveyor)
Net Weight Approx. 31kg
