ZONESUN ZS-DPYT200L Dual Nozzle Compact Digital Liquid Filling Machine

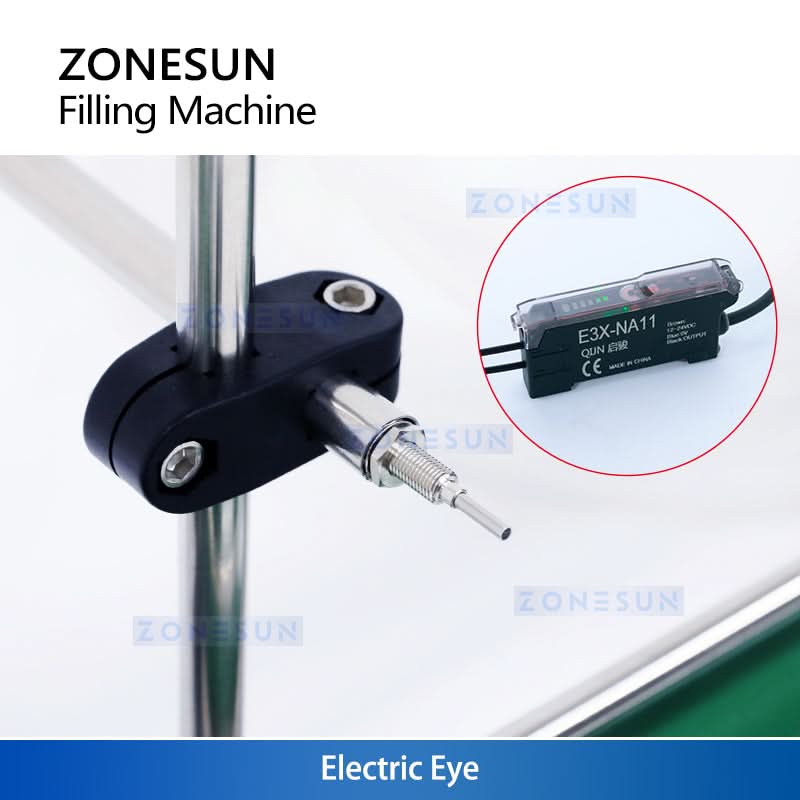

The ZS-DPYT200L is a compact liquid filling machine with dual nozzle control, designed for small-scale production and individual workshops. It features a waterproof 1200mm conveyor belt for efficient bottle handling, an intuitive digital control panel for adjusting filling parameters, and a smart electric eye sensor for accurate bottle detection. Ideal for filling particle-free liquids like essential oils, milk, juice, and more.
ZS-DPYT200L Filling Machine Specifications
Parameter Specification
Machine Model ZS-DPYT200L
Voltage 110V/220V, 50-60Hz
Filling Range 10–3000mL
Max Flow Rate 3L/min (based on water)
Filling Speed 1–99 (Adjustable)
Filling Time 0.1–999s
Applicable Bottle Size Diameter: 0–100mm; Height: 0–300mm

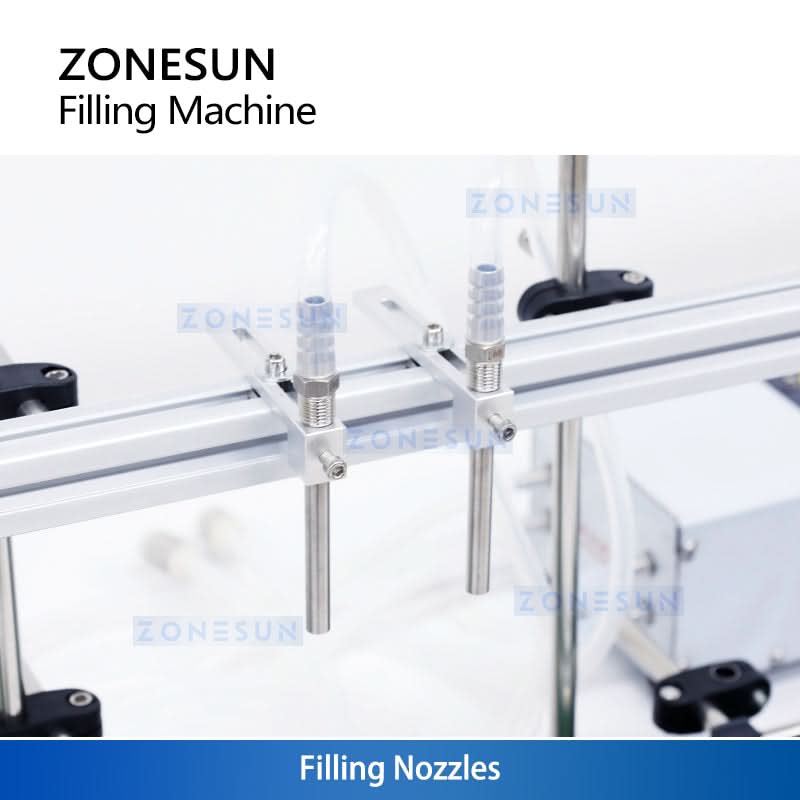

Filling Nozzle Diameter Outer Diameter 9mm (Optional: 6mm or 4.3mm)
Hose Length Inlet: 0.8m; Outlet: 1.2m
Conveyor Size 1200mm (L) × 100mm (W)
Liquid Temperature Max 60°C
Loading Capacity ≤6kg
Conveyor Belt Waterproof
Power-Off Memory Function Available
Machine Size Approx. 295mm × 155mm × 105mm
Net Weight 7.3kg
Package Size Conveyor: 670 × 200 × 170mm <br> Host: 350 × 200 × 160mm
Gross Weight 8kg
The ZS-DPYT200L is a compact liquid filling machine with dual nozzle control, designed for small-scale production and individual workshops. It features a waterproof 1200mm conveyor belt for efficient bottle handling, an intuitive digital control panel for adjusting filling parameters, and a smart electric eye sensor for accurate bottle detection. Ideal for filling particle-free liquids like essential oils, milk, juice, and more.
ZS-DPYT200L Filling Machine Specifications
Parameter Specification
Machine Model ZS-DPYT200L
Voltage 110V/220V, 50-60Hz
Filling Range 10–3000mL
Max Flow Rate 3L/min (based on water)
Filling Speed 1–99 (Adjustable)
Filling Time 0.1–999s
Applicable Bottle Size Diameter: 0–100mm; Height: 0–300mm
Filling Nozzle Diameter Outer Diameter 9mm (Optional: 6mm or 4.3mm)
Hose Length Inlet: 0.8m; Outlet: 1.2m
Conveyor Size 1200mm (L) × 100mm (W)
Liquid Temperature Max 60°C
Loading Capacity ≤6kg
Conveyor Belt Waterproof
Power-Off Memory Function Available
Machine Size Approx. 295mm × 155mm × 105mm
Net Weight 7.3kg
Package Size Conveyor: 670 × 200 × 170mm <br> Host: 350 × 200 × 160mm
Gross Weight 8kg
