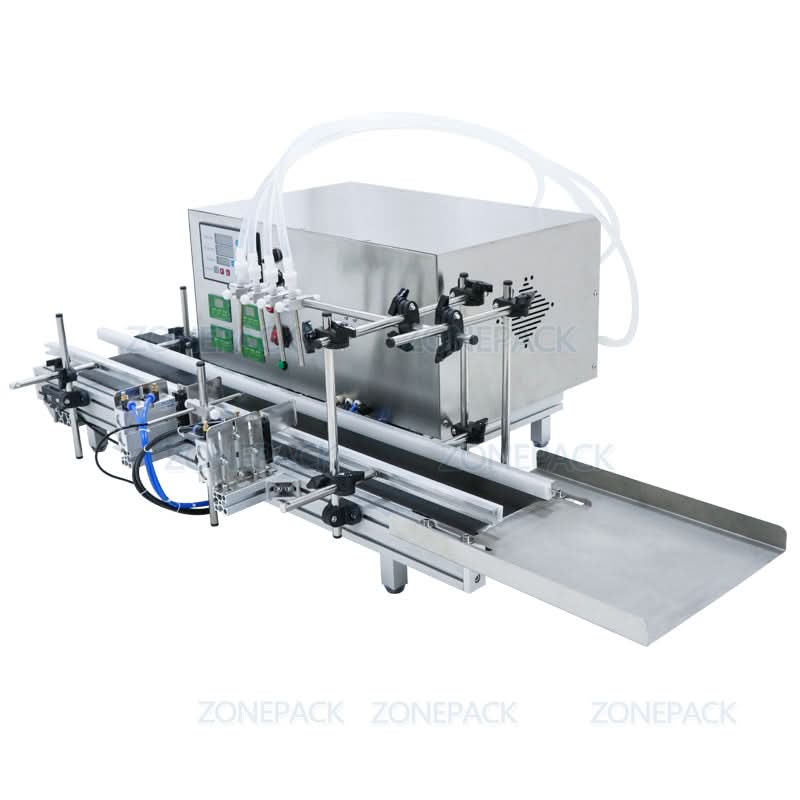

ZONESUN Automatic CNC Peristaltic Pump Liquid Filling Machine with Conveyor
The ZONESUN desktop CNC liquid filling machine uses peristaltic pumps to deliver precise, contamination-free filling for water, perfume, and other low-viscosity liquids. With four customizable nozzles and an integrated conveyor belt, it automates the filling process to improve speed and consistency. Ideal for cosmetics, pharmaceuticals, and lab use, this compact system offers programmable control and clean operation, making it perfect for small-scale production environments.
Parameter Details
Voltage AC 110V / 220V, 50–60Hz
Power 60W per pump
Recommended Filling Volume 10–500 mL (110V) / 10–1000 mL (220V)
Maximum Flow 2500 mL/min per nozzle (based on water)

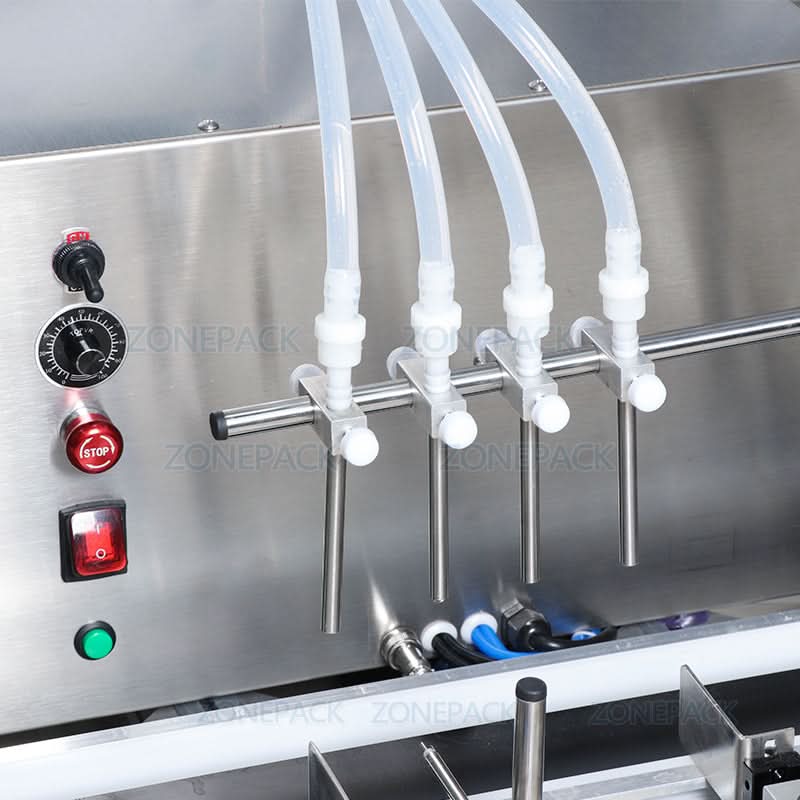

Filling Nozzles 4 (customizable based on user requirements)
Working Speed 30–50 bottles/min (depends on bottle and liquid type)
Air Pressure 0.3–0.4 MPa
Filling Accuracy ≤ ±1% (for water)
Dimension of Filling Nozzle Standard 8 mm and 6 mm
Delay Range 0.01 s – 999.9 s
Belt Length 1.0 m
The ZONESUN desktop CNC liquid filling machine uses peristaltic pumps to deliver precise, contamination-free filling for water, perfume, and other low-viscosity liquids. With four customizable nozzles and an integrated conveyor belt, it automates the filling process to improve speed and consistency. Ideal for cosmetics, pharmaceuticals, and lab use, this compact system offers programmable control and clean operation, making it perfect for small-scale production environments.
Parameter Details
Voltage AC 110V / 220V, 50–60Hz
Power 60W per pump
Recommended Filling Volume 10–500 mL (110V) / 10–1000 mL (220V)
Maximum Flow 2500 mL/min per nozzle (based on water)
Filling Nozzles 4 (customizable based on user requirements)
Working Speed 30–50 bottles/min (depends on bottle and liquid type)
Air Pressure 0.3–0.4 MPa
Filling Accuracy ≤ ±1% (for water)
Dimension of Filling Nozzle Standard 8 mm and 6 mm
Delay Range 0.01 s – 999.9 s
Belt Length 1.0 m
Original: $2,050.00
-70%$2,050.00
$615.00Description
The ZONESUN desktop CNC liquid filling machine uses peristaltic pumps to deliver precise, contamination-free filling for water, perfume, and other low-viscosity liquids. With four customizable nozzles and an integrated conveyor belt, it automates the filling process to improve speed and consistency. Ideal for cosmetics, pharmaceuticals, and lab use, this compact system offers programmable control and clean operation, making it perfect for small-scale production environments.
Parameter Details
Voltage AC 110V / 220V, 50–60Hz
Power 60W per pump
Recommended Filling Volume 10–500 mL (110V) / 10–1000 mL (220V)
Maximum Flow 2500 mL/min per nozzle (based on water)
Filling Nozzles 4 (customizable based on user requirements)
Working Speed 30–50 bottles/min (depends on bottle and liquid type)
Air Pressure 0.3–0.4 MPa
Filling Accuracy ≤ ±1% (for water)
Dimension of Filling Nozzle Standard 8 mm and 6 mm
Delay Range 0.01 s – 999.9 s
Belt Length 1.0 m
