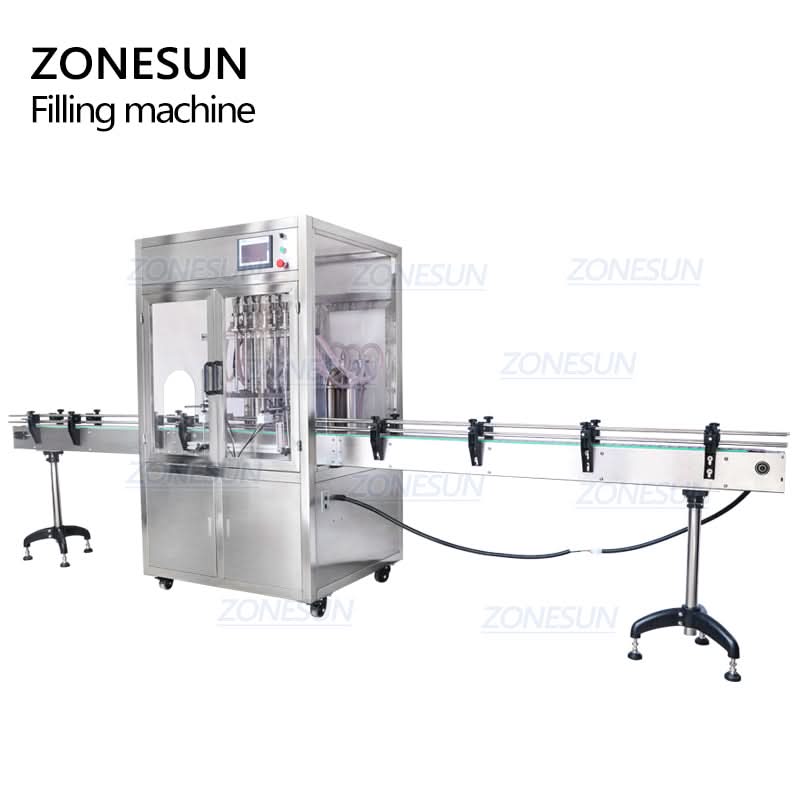

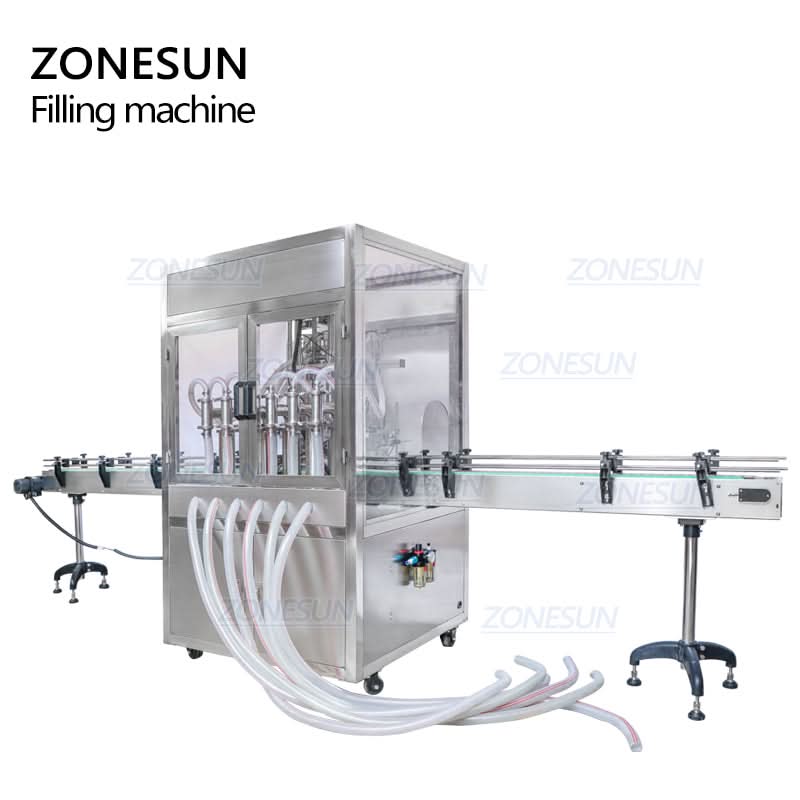

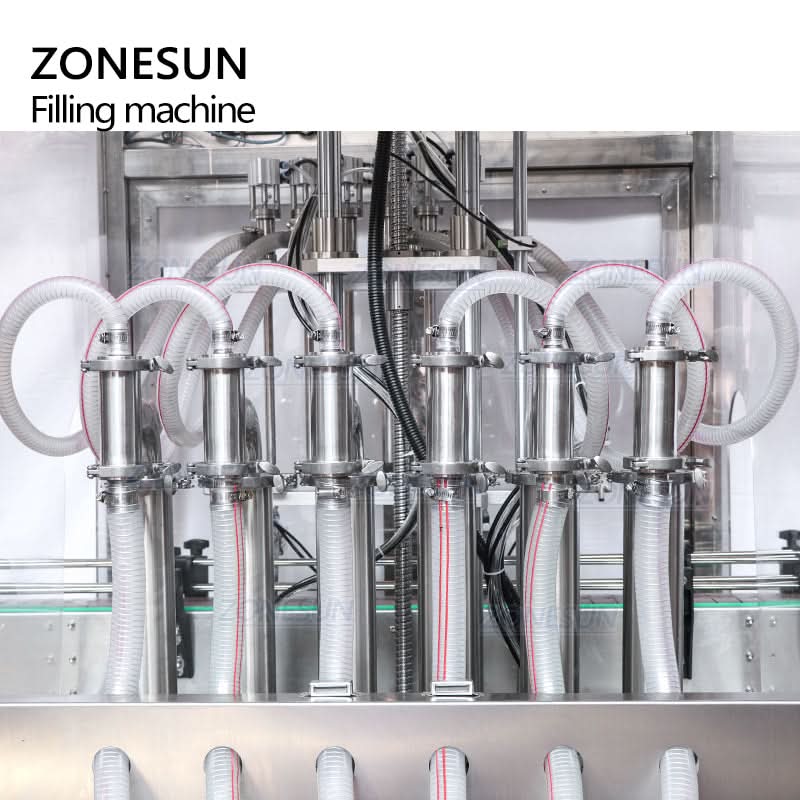

ZONESUN ZS-YTDC6 Automatic 6-Head Piston Liquid Filling Machine
The ZONESUN ZS-YTDC6 is a fully automatic piston-type liquid filling machine powered by an air cylinder. Designed for low-viscosity liquids such as water, juice, olive oil, and detergent, it offers customizable filling ranges and nozzle configurations to suit various production needs. The integrated conveyor system ensures smooth bottle transport, while the optional dust cover enhances hygiene. Ideal for food, beverage, and daily chemical industries, this machine boosts efficiency and precision in medium to large-scale operations.
Parameter Specification
Model ZS-YTDC6
Voltage 110/220V, 50–60Hz, 800W
Filling Range 5–100ml / 10–300ml / 50–500ml / 100–1000ml / 500–3000ml / 1000–5000ml
Working Speed (Based on Water) 30–40 bottles/min
Filling Accuracy ≤±1%
Filling Nozzle Size Customized
Air Pressure 0.5–0.7MPa
Conveyor Length 2000mm (standard) / 4530mm (custom version)
Conveyor Material Plastic (standard) / Stainless steel (custom version)
Air Compressor Connector Size Outer Diameter 10mm
Machine Size Approx. 1120 × 990 × 940mm
Package Weight Approx. 486kg
Package Size Approx. 1600 × 1210 × 2160mm
The ZONESUN ZS-YTDC6 is a fully automatic piston-type liquid filling machine powered by an air cylinder. Designed for low-viscosity liquids such as water, juice, olive oil, and detergent, it offers customizable filling ranges and nozzle configurations to suit various production needs. The integrated conveyor system ensures smooth bottle transport, while the optional dust cover enhances hygiene. Ideal for food, beverage, and daily chemical industries, this machine boosts efficiency and precision in medium to large-scale operations.
Parameter Specification
Model ZS-YTDC6
Voltage 110/220V, 50–60Hz, 800W
Filling Range 5–100ml / 10–300ml / 50–500ml / 100–1000ml / 500–3000ml / 1000–5000ml
Working Speed (Based on Water) 30–40 bottles/min
Filling Accuracy ≤±1%
Filling Nozzle Size Customized
Air Pressure 0.5–0.7MPa
Conveyor Length 2000mm (standard) / 4530mm (custom version)
Conveyor Material Plastic (standard) / Stainless steel (custom version)
Air Compressor Connector Size Outer Diameter 10mm
Machine Size Approx. 1120 × 990 × 940mm
Package Weight Approx. 486kg
Package Size Approx. 1600 × 1210 × 2160mm
Original: $8,199.00
-70%$8,199.00
$2,459.70Description
The ZONESUN ZS-YTDC6 is a fully automatic piston-type liquid filling machine powered by an air cylinder. Designed for low-viscosity liquids such as water, juice, olive oil, and detergent, it offers customizable filling ranges and nozzle configurations to suit various production needs. The integrated conveyor system ensures smooth bottle transport, while the optional dust cover enhances hygiene. Ideal for food, beverage, and daily chemical industries, this machine boosts efficiency and precision in medium to large-scale operations.
Parameter Specification
Model ZS-YTDC6
Voltage 110/220V, 50–60Hz, 800W
Filling Range 5–100ml / 10–300ml / 50–500ml / 100–1000ml / 500–3000ml / 1000–5000ml
Working Speed (Based on Water) 30–40 bottles/min
Filling Accuracy ≤±1%
Filling Nozzle Size Customized
Air Pressure 0.5–0.7MPa
Conveyor Length 2000mm (standard) / 4530mm (custom version)
Conveyor Material Plastic (standard) / Stainless steel (custom version)
Air Compressor Connector Size Outer Diameter 10mm
Machine Size Approx. 1120 × 990 × 940mm
Package Weight Approx. 486kg
Package Size Approx. 1600 × 1210 × 2160mm
