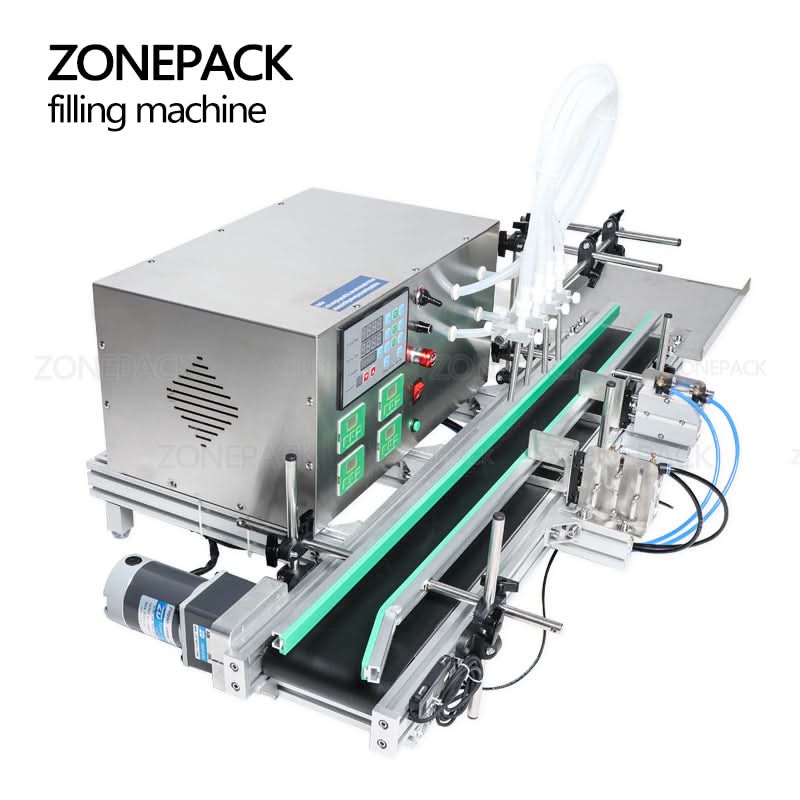

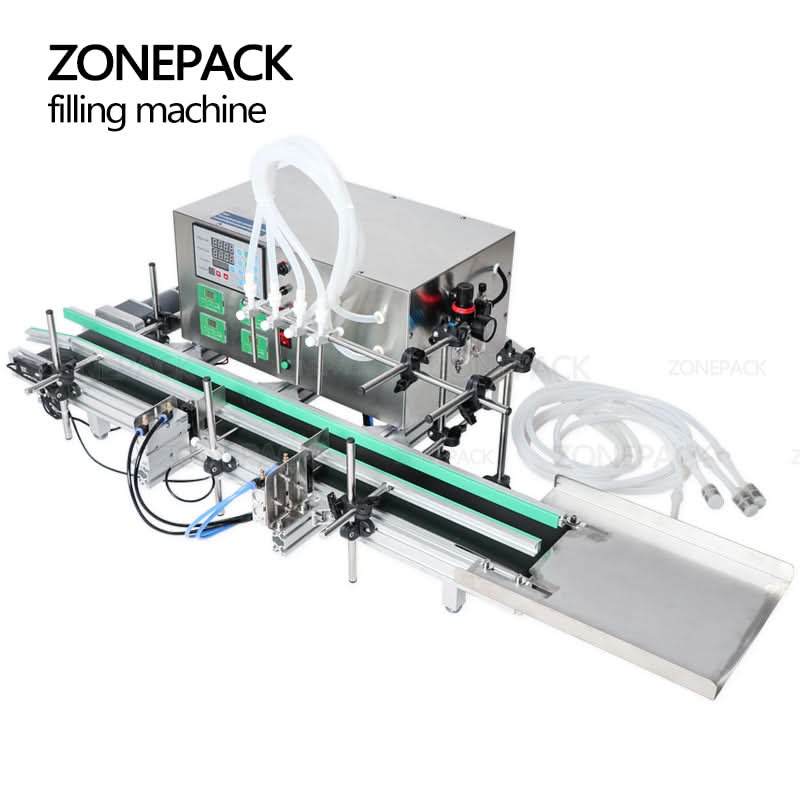

ZONESUN ZS-DTDP4 Automatic Desktop Liquid Filling Machine with Conveyor for Bottles

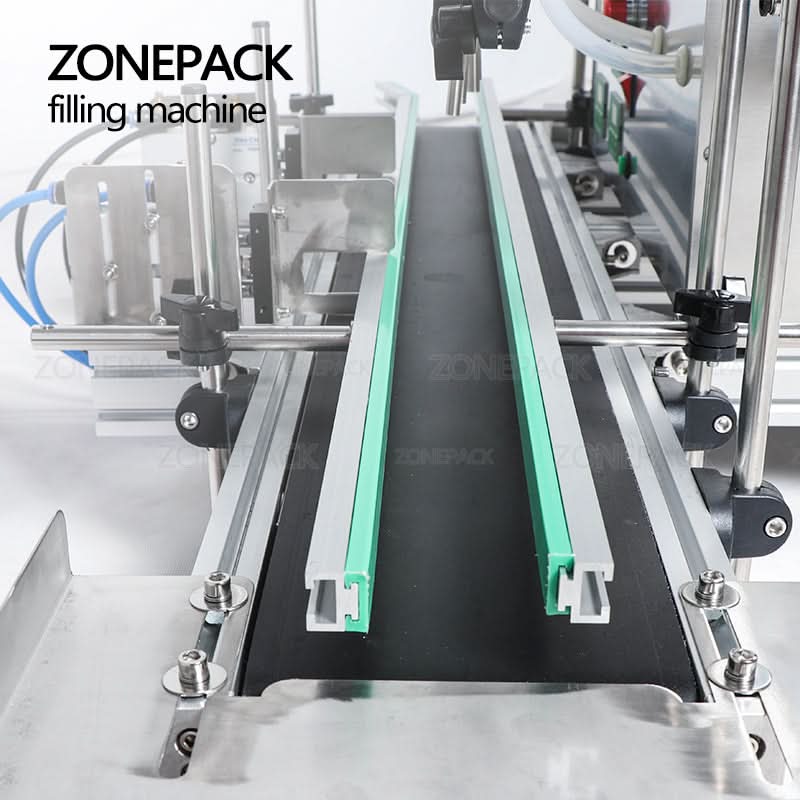

This full automatic desktop CNC liquid filling machine is equipped with a conveyor and infrared sensor for hands-free, precise dispensing. Designed for small-dose liquid filling, it supports round plastic bottles and delivers accurate metering with adjustable speed. Built with high-quality stainless steel and a compact footprint, it’s ideal for short-run production. The digital control panel enables intelligent fault detection, and multiple nozzles can be customized for integration into a production line. Perfect for water, juice, perfume, milk, and daily chemicals.
Parameter Specification
Power Supply Voltage 110V / 220V, 50–60Hz
Power 250W
Max Flow Velocity 4000 ml/min per nozzle (based on water)
Working Speed 1500–3000 bottles/hour (depends on bottle & liquid)
Air Pressure 0.3–0.4 MPa
Filling Accuracy ≤ ±1% (for water)
Filling Nozzle Diameter 6 mm / 8 mm
Delay Range 0.01 – 999.9 seconds
Count Range 1 – 99,999 times
Machine Size 1350 × 710 × 600 mm
Machine Weight Approx. 50 kg
Filling Volume 3–1000 ml (220V)<br>3–500 ml (110V recommended)
Power Supply Voltage 110V / 220V, 50–60Hz
Power 250W
Max Flow Velocity 4000 ml/min per nozzle (based on water)
Working Speed 1500–3000 bottles/hour (depends on bottle & liquid)
Air Pressure 0.3–0.4 MPa
Filling Accuracy ≤ ±1% (for water)
Filling Nozzle Diameter 6 mm / 8 mm
Delay Range 0.01 – 999.9 seconds
Count Range 1 – 99,999 times
Machine Size 1350 × 710 × 600 mm
Machine Weight Approx. 50 kg
Filling Volume 3–1000 ml (220V)<br>3–500 ml (110V recommended)
This full automatic desktop CNC liquid filling machine is equipped with a conveyor and infrared sensor for hands-free, precise dispensing. Designed for small-dose liquid filling, it supports round plastic bottles and delivers accurate metering with adjustable speed. Built with high-quality stainless steel and a compact footprint, it’s ideal for short-run production. The digital control panel enables intelligent fault detection, and multiple nozzles can be customized for integration into a production line. Perfect for water, juice, perfume, milk, and daily chemicals.
Parameter Specification
Power Supply Voltage 110V / 220V, 50–60Hz
Power 250W
Max Flow Velocity 4000 ml/min per nozzle (based on water)
Working Speed 1500–3000 bottles/hour (depends on bottle & liquid)
Air Pressure 0.3–0.4 MPa
Filling Accuracy ≤ ±1% (for water)
Filling Nozzle Diameter 6 mm / 8 mm
Delay Range 0.01 – 999.9 seconds
Count Range 1 – 99,999 times
Machine Size 1350 × 710 × 600 mm
Machine Weight Approx. 50 kg
Filling Volume 3–1000 ml (220V)<br>3–500 ml (110V recommended)
Power Supply Voltage 110V / 220V, 50–60Hz
Power 250W
Max Flow Velocity 4000 ml/min per nozzle (based on water)
Working Speed 1500–3000 bottles/hour (depends on bottle & liquid)
Air Pressure 0.3–0.4 MPa
Filling Accuracy ≤ ±1% (for water)
Filling Nozzle Diameter 6 mm / 8 mm
Delay Range 0.01 – 999.9 seconds
Count Range 1 – 99,999 times
Machine Size 1350 × 710 × 600 mm
Machine Weight Approx. 50 kg
Filling Volume 3–1000 ml (220V)<br>3–500 ml (110V recommended)
Select Size
From $540.00
Original: $1,799.99
-70%ZONESUN ZS-DTDP4 Automatic Desktop Liquid Filling Machine with Conveyor for Bottles—
$1,799.99
$540.00Description
This full automatic desktop CNC liquid filling machine is equipped with a conveyor and infrared sensor for hands-free, precise dispensing. Designed for small-dose liquid filling, it supports round plastic bottles and delivers accurate metering with adjustable speed. Built with high-quality stainless steel and a compact footprint, it’s ideal for short-run production. The digital control panel enables intelligent fault detection, and multiple nozzles can be customized for integration into a production line. Perfect for water, juice, perfume, milk, and daily chemicals.
Parameter Specification
Power Supply Voltage 110V / 220V, 50–60Hz
Power 250W
Max Flow Velocity 4000 ml/min per nozzle (based on water)
Working Speed 1500–3000 bottles/hour (depends on bottle & liquid)
Air Pressure 0.3–0.4 MPa
Filling Accuracy ≤ ±1% (for water)
Filling Nozzle Diameter 6 mm / 8 mm
Delay Range 0.01 – 999.9 seconds
Count Range 1 – 99,999 times
Machine Size 1350 × 710 × 600 mm
Machine Weight Approx. 50 kg
Filling Volume 3–1000 ml (220V)<br>3–500 ml (110V recommended)
Power Supply Voltage 110V / 220V, 50–60Hz
Power 250W
Max Flow Velocity 4000 ml/min per nozzle (based on water)
Working Speed 1500–3000 bottles/hour (depends on bottle & liquid)
Air Pressure 0.3–0.4 MPa
Filling Accuracy ≤ ±1% (for water)
Filling Nozzle Diameter 6 mm / 8 mm
Delay Range 0.01 – 999.9 seconds
Count Range 1 – 99,999 times
Machine Size 1350 × 710 × 600 mm
Machine Weight Approx. 50 kg
Filling Volume 3–1000 ml (220V)<br>3–500 ml (110V recommended)
