ZONESUN ZS-VTPP80C Automatic Peristaltic Pump Bottle Filling Machine

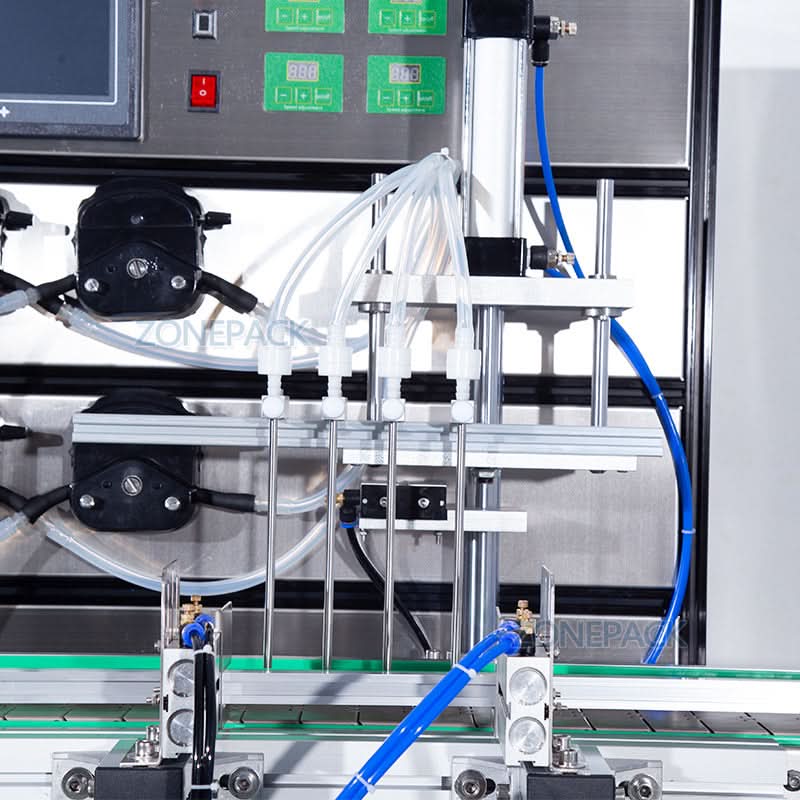

The ZONESUN ZS-VTPP80C is an automatic liquid filling machine equipped with a peristaltic pump system that ensures hygienic, contamination-free filling. Each nozzle operates independently, allowing flexible control and multi-bottle filling at speeds of 30–50 bottles per minute. Ideal for cleanroom environments and sensitive liquids, this machine is perfect for pharmaceuticals, cosmetics, and food-grade products. Designed for precision, efficiency, and easy integration into automated production lines.
Liquid Filling Machine – Technical Specifications
Parameter Specification
Container Size φ20–160 mm (Diameter), H30–300 mm (Height)
Max Flow Rate (per nozzle) 2500 ml/min, 4000 ml/min, 6000 ml/min (based on water)
Filling Accuracy ≤ ±1% (for water)
Filling Speed 30–50 pcs/min (depends on bottle and liquid type)
Power Supply 220V–50Hz / 110V–60Hz
Pump Power (per nozzle) 60W
Packing Weight 150 kg
Packing Size 2000 × 820 × 1580 mm
The ZONESUN ZS-VTPP80C is an automatic liquid filling machine equipped with a peristaltic pump system that ensures hygienic, contamination-free filling. Each nozzle operates independently, allowing flexible control and multi-bottle filling at speeds of 30–50 bottles per minute. Ideal for cleanroom environments and sensitive liquids, this machine is perfect for pharmaceuticals, cosmetics, and food-grade products. Designed for precision, efficiency, and easy integration into automated production lines.
Liquid Filling Machine – Technical Specifications
Parameter Specification
Container Size φ20–160 mm (Diameter), H30–300 mm (Height)
Max Flow Rate (per nozzle) 2500 ml/min, 4000 ml/min, 6000 ml/min (based on water)
Filling Accuracy ≤ ±1% (for water)
Filling Speed 30–50 pcs/min (depends on bottle and liquid type)
Power Supply 220V–50Hz / 110V–60Hz
Pump Power (per nozzle) 60W
Packing Weight 150 kg
Packing Size 2000 × 820 × 1580 mm
Original: $4,599.00
-70%$4,599.00
$1,379.70Description
The ZONESUN ZS-VTPP80C is an automatic liquid filling machine equipped with a peristaltic pump system that ensures hygienic, contamination-free filling. Each nozzle operates independently, allowing flexible control and multi-bottle filling at speeds of 30–50 bottles per minute. Ideal for cleanroom environments and sensitive liquids, this machine is perfect for pharmaceuticals, cosmetics, and food-grade products. Designed for precision, efficiency, and easy integration into automated production lines.
Liquid Filling Machine – Technical Specifications
Parameter Specification
Container Size φ20–160 mm (Diameter), H30–300 mm (Height)
Max Flow Rate (per nozzle) 2500 ml/min, 4000 ml/min, 6000 ml/min (based on water)
Filling Accuracy ≤ ±1% (for water)
Filling Speed 30–50 pcs/min (depends on bottle and liquid type)
Power Supply 220V–50Hz / 110V–60Hz
Pump Power (per nozzle) 60W
Packing Weight 150 kg
Packing Size 2000 × 820 × 1580 mm
