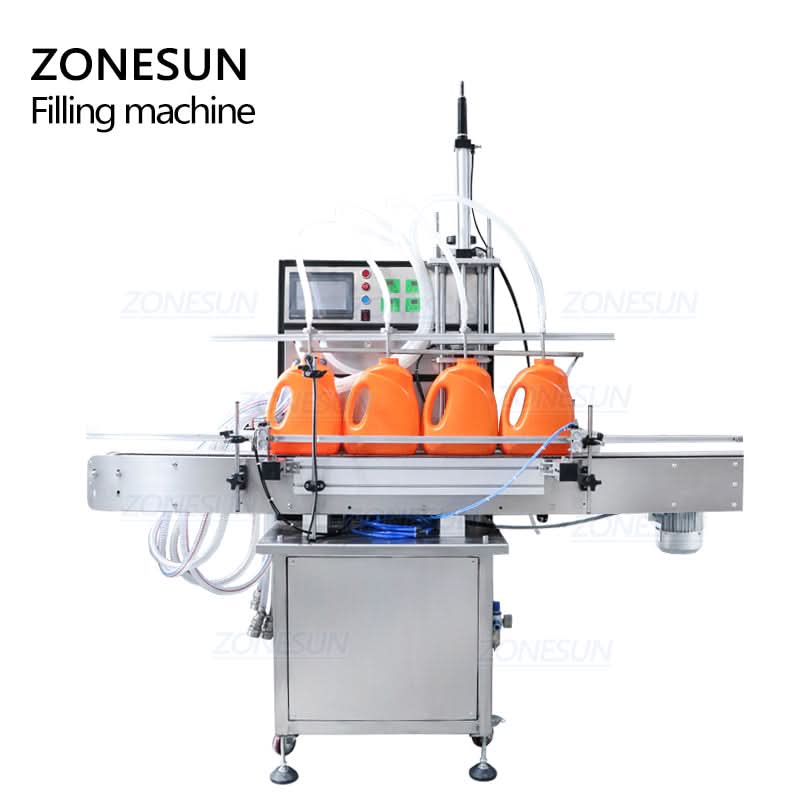

ZONESUN ZS-VTDP40 Automatic Diaphragm Pump Liquid Filling Machine
The ZS-VTDP40 is a high-efficiency automatic filling machine equipped with a diaphragm pump, ideal for handling thick liquids such as gel, hand sanitizer, and detergent. It also supports filling beverages, essential oils, and other low-viscosity fluids. With a powerful flow rate and four independently controlled filling heads, this machine offers flexibility and speed for medium to large-scale production. Its robust design ensures consistent performance across a wide range of applications.
Parameter
Machine Model ZS-VTDP40
Power Supply 220V-50Hz / 110V-60Hz
Total Machine Power 1500W
Max Flow Rate 40L/min
Pump Material Diaphragm Pump
Filling Accuracy ≤100ml: deviation ≤ ±1ml
>100ml: deviation ≤ ±1% (based on water)
Filling Speed 30–45 bottles/min (depends on bottle and liquid type)
Packing Weight About 150kg
Packing Size Approx. 1920 × 1110 × 1800 mm
Air Compressor Connector Size OD 8mm
The ZS-VTDP40 is a high-efficiency automatic filling machine equipped with a diaphragm pump, ideal for handling thick liquids such as gel, hand sanitizer, and detergent. It also supports filling beverages, essential oils, and other low-viscosity fluids. With a powerful flow rate and four independently controlled filling heads, this machine offers flexibility and speed for medium to large-scale production. Its robust design ensures consistent performance across a wide range of applications.
Parameter
Machine Model ZS-VTDP40
Power Supply 220V-50Hz / 110V-60Hz
Total Machine Power 1500W
Max Flow Rate 40L/min
Pump Material Diaphragm Pump
Filling Accuracy ≤100ml: deviation ≤ ±1ml
>100ml: deviation ≤ ±1% (based on water)
Filling Speed 30–45 bottles/min (depends on bottle and liquid type)
Packing Weight About 150kg
Packing Size Approx. 1920 × 1110 × 1800 mm
Air Compressor Connector Size OD 8mm
Description
The ZS-VTDP40 is a high-efficiency automatic filling machine equipped with a diaphragm pump, ideal for handling thick liquids such as gel, hand sanitizer, and detergent. It also supports filling beverages, essential oils, and other low-viscosity fluids. With a powerful flow rate and four independently controlled filling heads, this machine offers flexibility and speed for medium to large-scale production. Its robust design ensures consistent performance across a wide range of applications.
Parameter
Machine Model ZS-VTDP40
Power Supply 220V-50Hz / 110V-60Hz
Total Machine Power 1500W
Max Flow Rate 40L/min
Pump Material Diaphragm Pump
Filling Accuracy ≤100ml: deviation ≤ ±1ml
>100ml: deviation ≤ ±1% (based on water)
Filling Speed 30–45 bottles/min (depends on bottle and liquid type)
Packing Weight About 150kg
Packing Size Approx. 1920 × 1110 × 1800 mm
Air Compressor Connector Size OD 8mm
