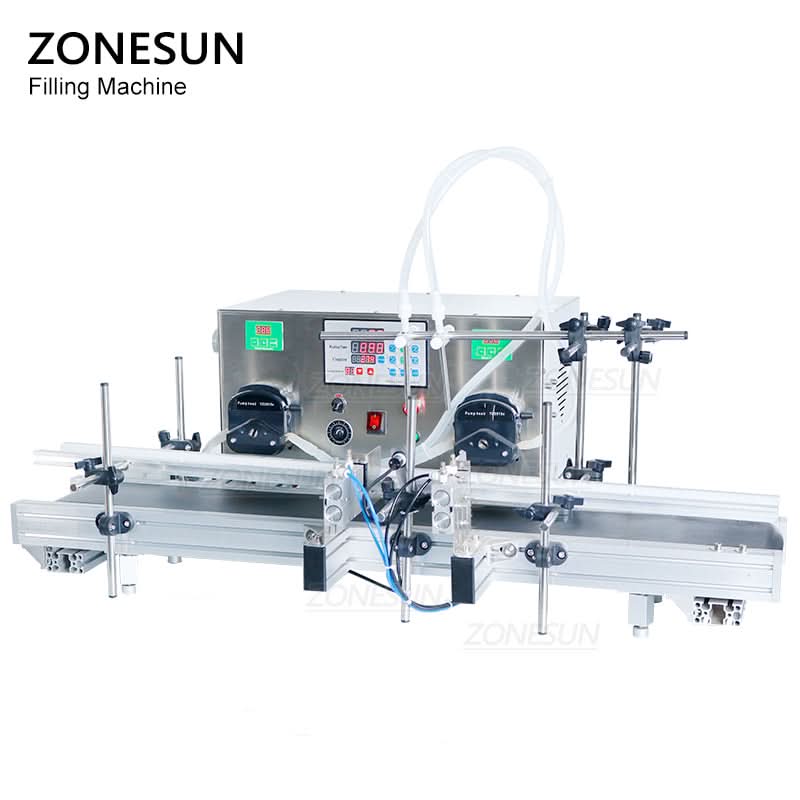

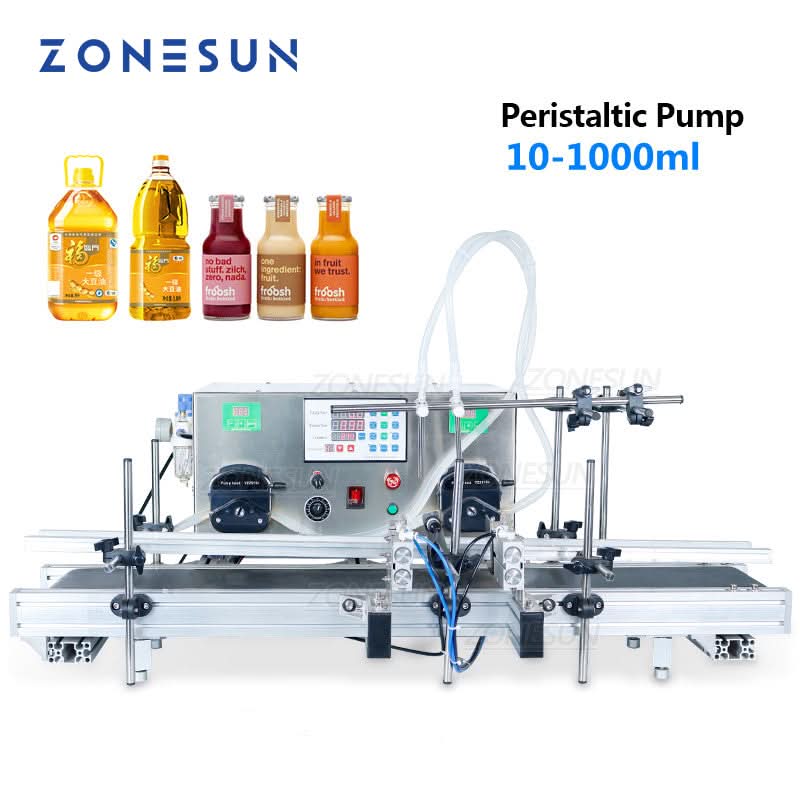

ZONESUN ZS-DTPP-2 Dual-Head Peristaltic Pump Liquid Filling Machine
The ZS-DTPP-2 automatic peristaltic pump filling machine is engineered for precise filling of non-particle liquids including essential oils, juice, perfume, and milk. Its dual-head system allows independent control for flexible production needs, and it can seamlessly integrate with capping and labeling machines for full automation. Ideal for pharmaceutical, cosmetic, daily chemical, and beverage sectors, this compact machine enhances efficiency with adjustable speed, high accuracy, and reliable performance across varied bottle sizes.
Parameter
Machine Model ZS-DTPP-2
Voltage AC 220V / 110V, 50–60Hz
Power 60W (Each Pump)
Filling Heads 2 Heads (Customizable)
Recommended Filling Volume 10–1000 mL
Maximum Flow Velocity 2.4 L/min × 2 (based on water)
Filling Accuracy ≤ ±1% (for water)
Filling Speed 20–30 bottles/min (depending on liquid & bottle size)
Air Pressure Requirement 0.3–0.4 MPa
Conveyor Dimensions 140 mm (W) × 1030 mm (L)
Filling Nozzle Diameter OD 8 mm
Air Compressor Connector OD 8 mm
Machine Dimensions 1030 × 740 × 390 mm
Package Dimensions 1120 × 670 × 420 mm
Net Weight Approx. 38 kg
Gross Weight Approx. 51 kg
The ZS-DTPP-2 automatic peristaltic pump filling machine is engineered for precise filling of non-particle liquids including essential oils, juice, perfume, and milk. Its dual-head system allows independent control for flexible production needs, and it can seamlessly integrate with capping and labeling machines for full automation. Ideal for pharmaceutical, cosmetic, daily chemical, and beverage sectors, this compact machine enhances efficiency with adjustable speed, high accuracy, and reliable performance across varied bottle sizes.
Parameter
Machine Model ZS-DTPP-2
Voltage AC 220V / 110V, 50–60Hz
Power 60W (Each Pump)
Filling Heads 2 Heads (Customizable)
Recommended Filling Volume 10–1000 mL
Maximum Flow Velocity 2.4 L/min × 2 (based on water)
Filling Accuracy ≤ ±1% (for water)
Filling Speed 20–30 bottles/min (depending on liquid & bottle size)
Air Pressure Requirement 0.3–0.4 MPa
Conveyor Dimensions 140 mm (W) × 1030 mm (L)
Filling Nozzle Diameter OD 8 mm
Air Compressor Connector OD 8 mm
Machine Dimensions 1030 × 740 × 390 mm
Package Dimensions 1120 × 670 × 420 mm
Net Weight Approx. 38 kg
Gross Weight Approx. 51 kg
Original: $2,033.34
-70%$2,033.34
$610.00Description
The ZS-DTPP-2 automatic peristaltic pump filling machine is engineered for precise filling of non-particle liquids including essential oils, juice, perfume, and milk. Its dual-head system allows independent control for flexible production needs, and it can seamlessly integrate with capping and labeling machines for full automation. Ideal for pharmaceutical, cosmetic, daily chemical, and beverage sectors, this compact machine enhances efficiency with adjustable speed, high accuracy, and reliable performance across varied bottle sizes.
Parameter
Machine Model ZS-DTPP-2
Voltage AC 220V / 110V, 50–60Hz
Power 60W (Each Pump)
Filling Heads 2 Heads (Customizable)
Recommended Filling Volume 10–1000 mL
Maximum Flow Velocity 2.4 L/min × 2 (based on water)
Filling Accuracy ≤ ±1% (for water)
Filling Speed 20–30 bottles/min (depending on liquid & bottle size)
Air Pressure Requirement 0.3–0.4 MPa
Conveyor Dimensions 140 mm (W) × 1030 mm (L)
Filling Nozzle Diameter OD 8 mm
Air Compressor Connector OD 8 mm
Machine Dimensions 1030 × 740 × 390 mm
Package Dimensions 1120 × 670 × 420 mm
Net Weight Approx. 38 kg
Gross Weight Approx. 51 kg
