ZONESUN ZS-YT6T-6PX Six-Head Servo Viscous Liquid Filling Machine

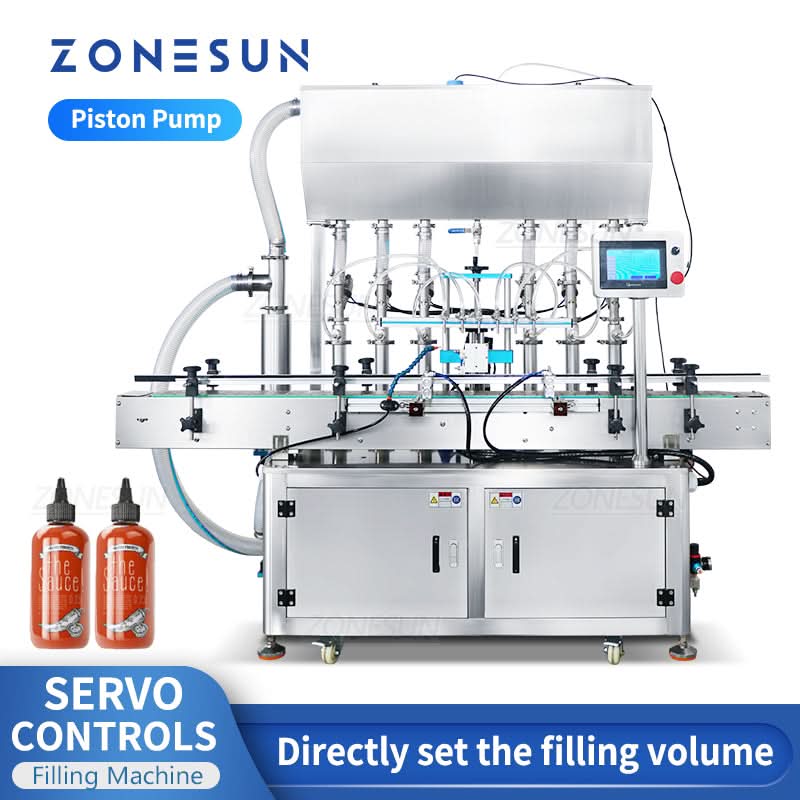

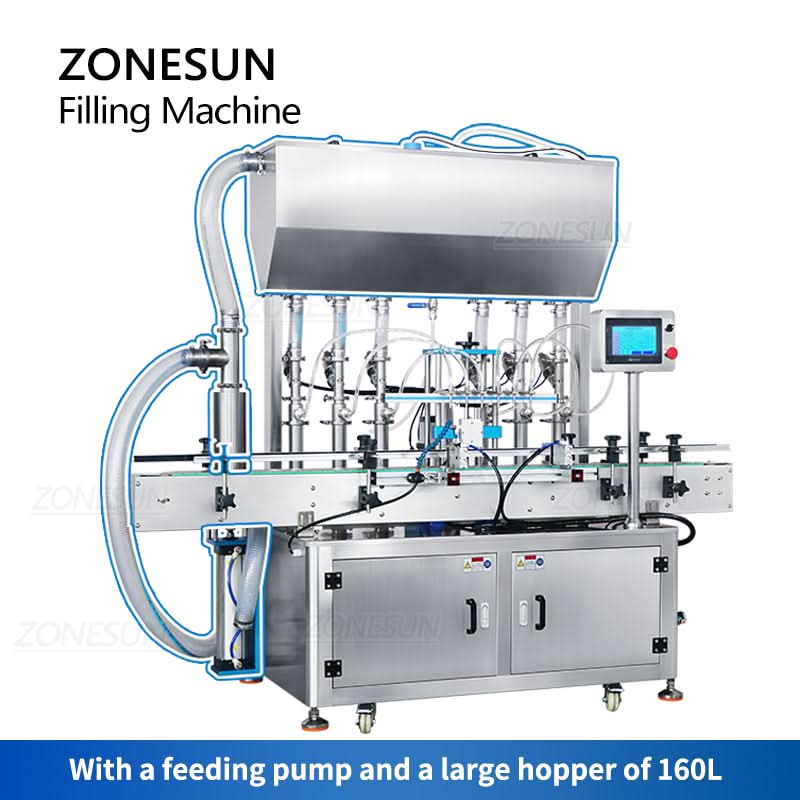

Designed for high-efficiency bottling of viscous liquids and pastes, the ZS-YT6T-6PX features six servo-driven piston filling heads and a 160L feeding system for consistent, customizable volume control. Ideal for creams, gels, sauces, and thick liquids, this automated solution supports fast output and precision accuracy—making it perfect for mid to large-scale production lines in food, cosmetic, chemical, or pharmaceutical industries.
Parameters — ZS-YT6T-6PX
Machine Model: ZS-YT6T-6PX
Voltage: 220V / 110V 50–60Hz
Power: 2KW
Filling Heads: 6 Heads (Can be customized)
Filling Range: 100–1000ml (Can be customized)
Filling Speed: About 30–70 bottles/min (Depending on materials and bottle size)
Filling Pump: Servo Piston Pump
Filling Accuracy: ±1%
Air Pressure: 0.5–0.8 MPa
Data Storage Function: Available
Machine Size: Approx. 3020 × 900 × 1850 mm
Package Size: Approx. 2030 × 900 × 1980 mm
Package Weight: Approx. 401 kg
Designed for high-efficiency bottling of viscous liquids and pastes, the ZS-YT6T-6PX features six servo-driven piston filling heads and a 160L feeding system for consistent, customizable volume control. Ideal for creams, gels, sauces, and thick liquids, this automated solution supports fast output and precision accuracy—making it perfect for mid to large-scale production lines in food, cosmetic, chemical, or pharmaceutical industries.
Parameters — ZS-YT6T-6PX
Machine Model: ZS-YT6T-6PX
Voltage: 220V / 110V 50–60Hz
Power: 2KW
Filling Heads: 6 Heads (Can be customized)
Filling Range: 100–1000ml (Can be customized)
Filling Speed: About 30–70 bottles/min (Depending on materials and bottle size)
Filling Pump: Servo Piston Pump
Filling Accuracy: ±1%
Air Pressure: 0.5–0.8 MPa
Data Storage Function: Available
Machine Size: Approx. 3020 × 900 × 1850 mm
Package Size: Approx. 2030 × 900 × 1980 mm
Package Weight: Approx. 401 kg
Original: $7,499.00
-70%$7,499.00
$2,249.70Description
Designed for high-efficiency bottling of viscous liquids and pastes, the ZS-YT6T-6PX features six servo-driven piston filling heads and a 160L feeding system for consistent, customizable volume control. Ideal for creams, gels, sauces, and thick liquids, this automated solution supports fast output and precision accuracy—making it perfect for mid to large-scale production lines in food, cosmetic, chemical, or pharmaceutical industries.
Parameters — ZS-YT6T-6PX
Machine Model: ZS-YT6T-6PX
Voltage: 220V / 110V 50–60Hz
Power: 2KW
Filling Heads: 6 Heads (Can be customized)
Filling Range: 100–1000ml (Can be customized)
Filling Speed: About 30–70 bottles/min (Depending on materials and bottle size)
Filling Pump: Servo Piston Pump
Filling Accuracy: ±1%
Air Pressure: 0.5–0.8 MPa
Data Storage Function: Available
Machine Size: Approx. 3020 × 900 × 1850 mm
Package Size: Approx. 2030 × 900 × 1980 mm
Package Weight: Approx. 401 kg
