ZONESUN ZS-DPYT1500 Automatic Liquid Filling Machine with Heat Resistance

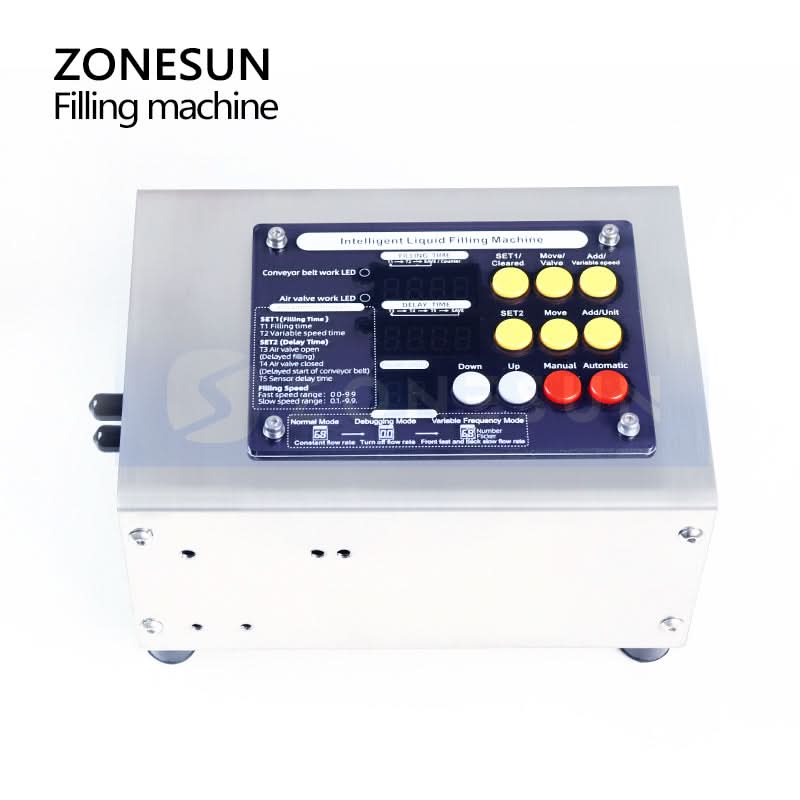

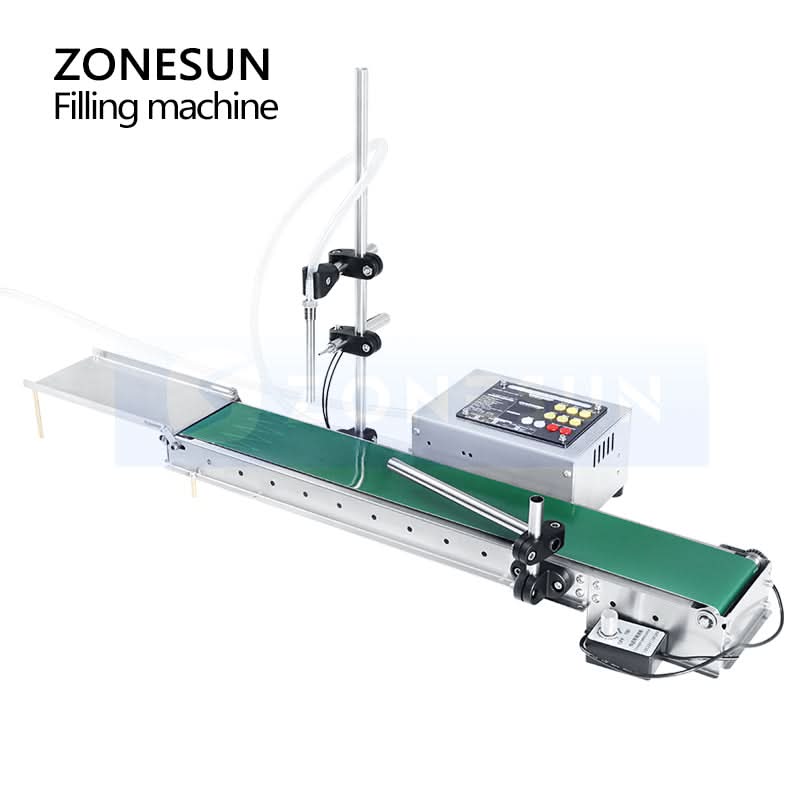

The ZONESUN ZS-DPYT1500 is a compact, high-precision automatic filling machine designed for low-viscosity, particle-free liquids such as water, juice, toner, and sauces. Equipped with a diaphragm pump and microcomputer control system, it offers precise timing (up to 0.1s), adjustable speed, and anti-drip functionality to keep the conveyor clean. Its intelligent sensor ensures efficient filling, while the heat-resistant design allows liquids up to 100°C. Ideal for small-scale production, the machine supports bottles up to 3L and includes removable inlet/outlet tubes for easy maintenance.
Parameter：
Machine pump：Diaphragm Pump
Voltage: 220V/110V 50-60Hz
Power: 60W
Max filling volume: 3L
Bottle height: ≤30cm
Bottle diameter：≤8.1cm
Power supply device input voltage: 100-240V
Machine input voltage: 12V 5A DC power supply
Filling time: 0-999s
Filling speed: 0-99
Filling accuracy: ±1%
Intelligent sensing distance: ≤1cm
Anti-dripping Function: Available
Notice：
1. The load that conveyor can bear must be within 3kg.
2. It is better that the distance between electric eye and bottle is within 1cm.
The ZONESUN ZS-DPYT1500 is a compact, high-precision automatic filling machine designed for low-viscosity, particle-free liquids such as water, juice, toner, and sauces. Equipped with a diaphragm pump and microcomputer control system, it offers precise timing (up to 0.1s), adjustable speed, and anti-drip functionality to keep the conveyor clean. Its intelligent sensor ensures efficient filling, while the heat-resistant design allows liquids up to 100°C. Ideal for small-scale production, the machine supports bottles up to 3L and includes removable inlet/outlet tubes for easy maintenance.
Parameter：
Machine pump：Diaphragm Pump
Voltage: 220V/110V 50-60Hz
Power: 60W
Max filling volume: 3L
Bottle height: ≤30cm
Bottle diameter：≤8.1cm
Power supply device input voltage: 100-240V
Machine input voltage: 12V 5A DC power supply
Filling time: 0-999s
Filling speed: 0-99
Filling accuracy: ±1%
Intelligent sensing distance: ≤1cm
Anti-dripping Function: Available
Notice：
1. The load that conveyor can bear must be within 3kg.
2. It is better that the distance between electric eye and bottle is within 1cm.
