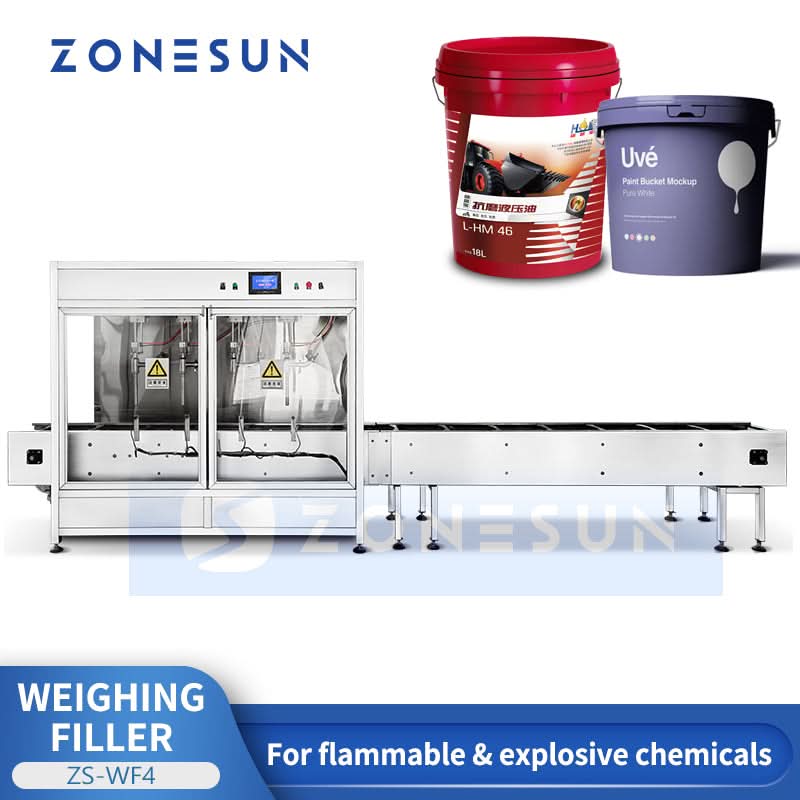

ZONESUN ZS-WF4 Explosion-Proof Paint Bucket Weighing Filling Machine
The ZONESUN ZS-WF4 is a specialized explosion-proof filling system designed for flammable and volatile chemical liquids. With gravimetric filling powered by a load cell scale, it ensures precise, high-speed bucket filling while meeting national safety standards. Equipped with corrosion-resistant heads, a 7-inch touch screen, and intelligent control, this machine is ideal for packaging paint, solvents, and other hazardous fluids with strict accuracy and reliable performance.
Parameter
Model ZS-WF4
Power 380V, 50Hz, 3-phase, 1.5 kW
Throughput 12–24 buckets/min

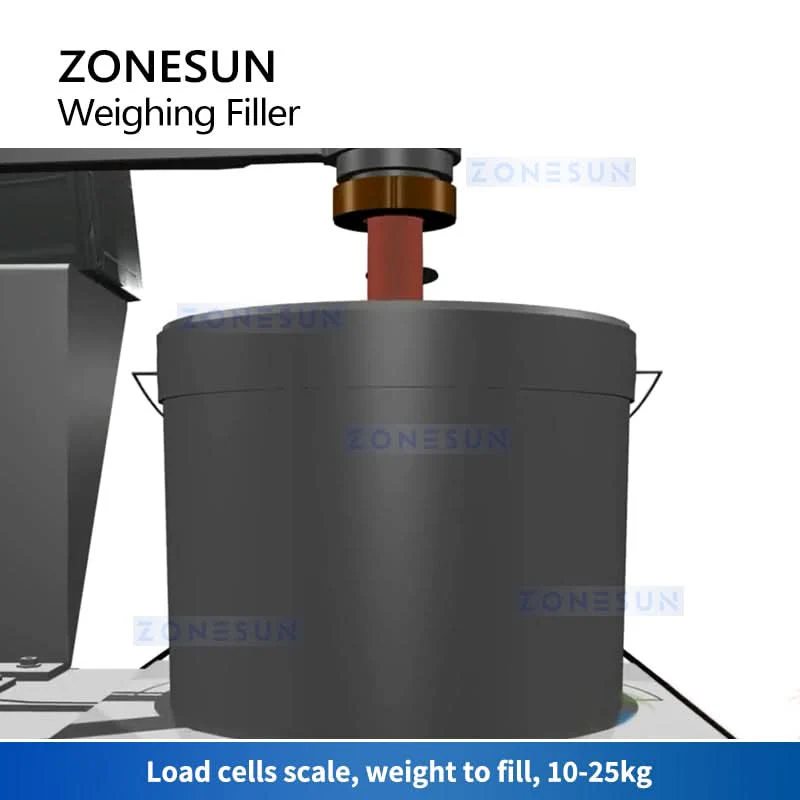

Filling Method Gravimetric filling with load cell scale
Weighing Range 10–25 kg

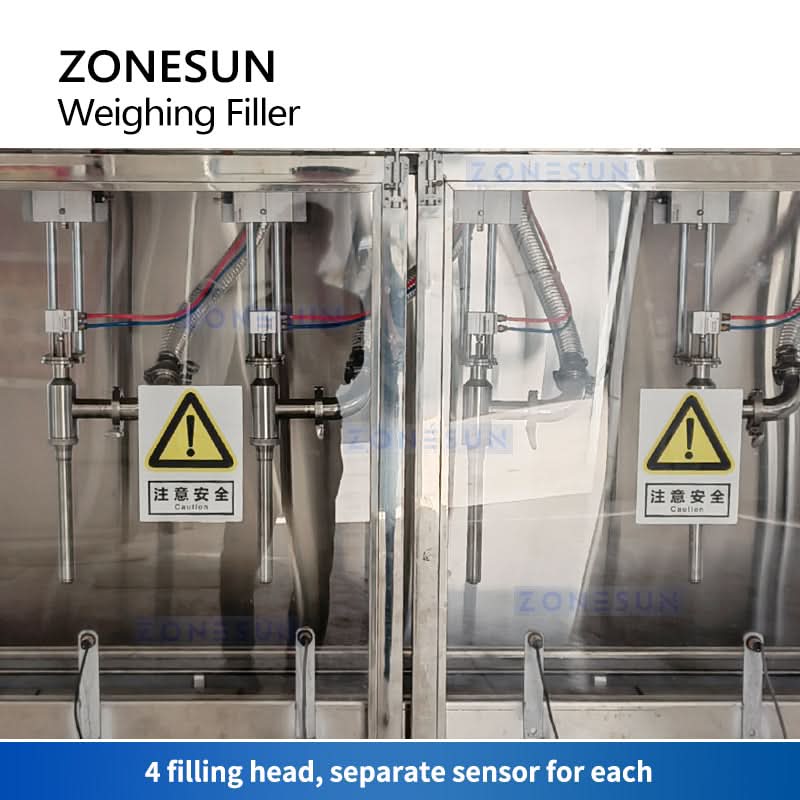

Filling Head 4, corrosion resistant
Accuracy ±0.2%
Applicable Container Diameter: 18–28 cm, Height: 30–45 cm

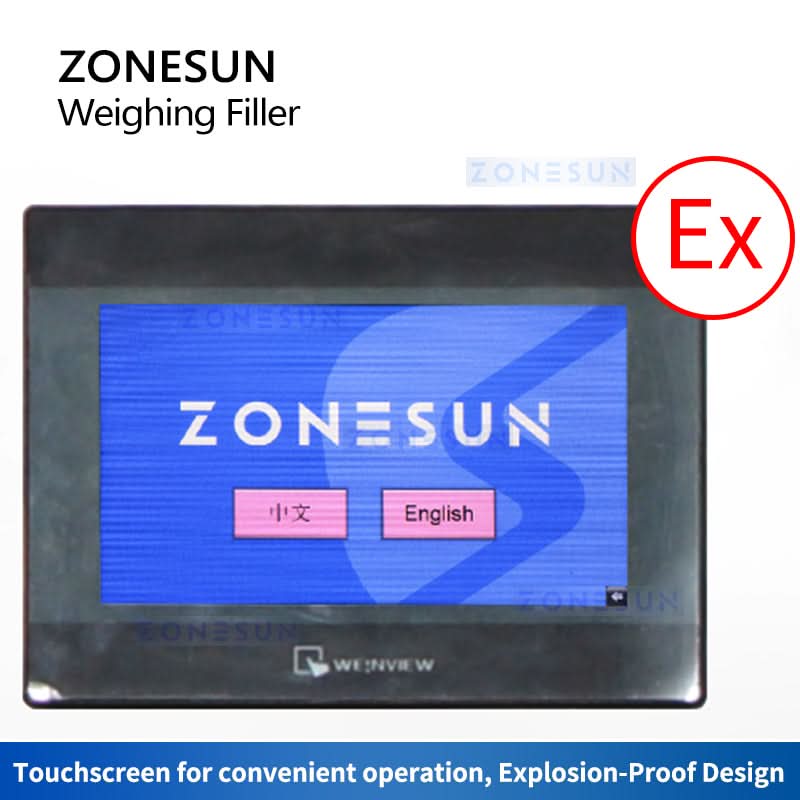

Display 7-inch touch screen
Machine Size 120 × 120 × 170 cm
Conveyor Length 800 cm
Machine Weight 300 kg
Packing Size Main Machine: 140 × 140 × 200 cm; Conveyor: 200 × 50 × 50 cm
The ZONESUN ZS-WF4 is a specialized explosion-proof filling system designed for flammable and volatile chemical liquids. With gravimetric filling powered by a load cell scale, it ensures precise, high-speed bucket filling while meeting national safety standards. Equipped with corrosion-resistant heads, a 7-inch touch screen, and intelligent control, this machine is ideal for packaging paint, solvents, and other hazardous fluids with strict accuracy and reliable performance.
Parameter
Model ZS-WF4
Power 380V, 50Hz, 3-phase, 1.5 kW
Throughput 12–24 buckets/min
Filling Method Gravimetric filling with load cell scale
Weighing Range 10–25 kg
Filling Head 4, corrosion resistant
Accuracy ±0.2%
Applicable Container Diameter: 18–28 cm, Height: 30–45 cm
Display 7-inch touch screen
Machine Size 120 × 120 × 170 cm
Conveyor Length 800 cm
Machine Weight 300 kg
Packing Size Main Machine: 140 × 140 × 200 cm; Conveyor: 200 × 50 × 50 cm
Original: $18,400.00
-70%$18,400.00
$5,520.00Description
The ZONESUN ZS-WF4 is a specialized explosion-proof filling system designed for flammable and volatile chemical liquids. With gravimetric filling powered by a load cell scale, it ensures precise, high-speed bucket filling while meeting national safety standards. Equipped with corrosion-resistant heads, a 7-inch touch screen, and intelligent control, this machine is ideal for packaging paint, solvents, and other hazardous fluids with strict accuracy and reliable performance.
Parameter
Model ZS-WF4
Power 380V, 50Hz, 3-phase, 1.5 kW
Throughput 12–24 buckets/min
Filling Method Gravimetric filling with load cell scale
Weighing Range 10–25 kg
Filling Head 4, corrosion resistant
Accuracy ±0.2%
Applicable Container Diameter: 18–28 cm, Height: 30–45 cm
Display 7-inch touch screen
Machine Size 120 × 120 × 170 cm
Conveyor Length 800 cm
Machine Weight 300 kg
Packing Size Main Machine: 140 × 140 × 200 cm; Conveyor: 200 × 50 × 50 cm
