ZONESUN ZS-DTMP1D Liquid Filler with Magnetic Pump & Conveyor System
The ZS-DTMP1D is a compact liquid filling line combining a precision magnetic pump with a conveyor system, engineered for accurate and hygienic filling of corrosive and delicate liquids. Ideal for products such as insecticide, perfume, essential oils, beverages, and cosmetics, it offers consistent flow control and compatibility with small containers. Its stainless steel magnetic pump ensures high dosing precision and long-term durability, making it suitable for daily chemical, food, and pharmaceutical applications.
Parameter Details
Model ZS-DTMP1D
Voltage 220V / 110V, 185W

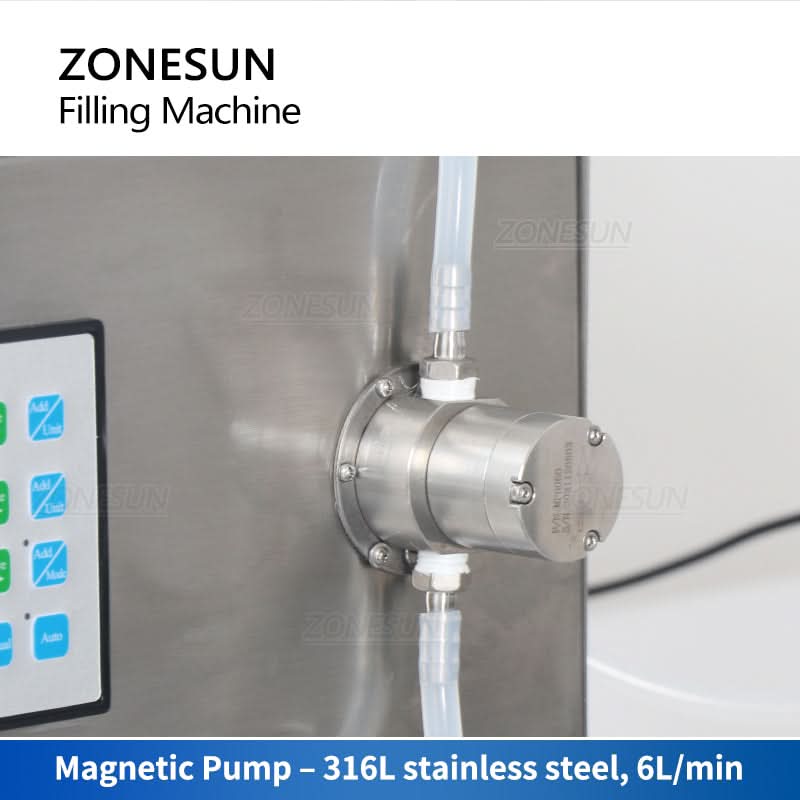

Pump Type 316L Stainless Steel Magnetic Pump
Filling Range 10–600 ml
Max Flow Rate 6L/min (based on water)
Filling Speed About 8–15 bottles/min (based on 110ml)
Bottle Height 40–210 mm
Bottle Body Diameter ≤80 mm
Bottle Opening Diameter >15 mm

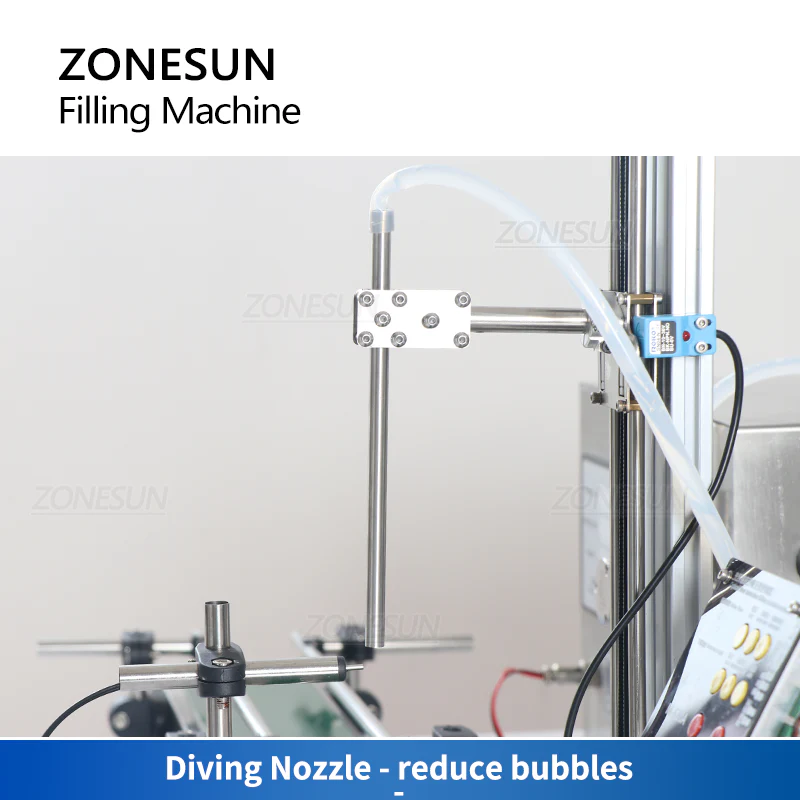

Nozzle Diameter (OD) 10 mm

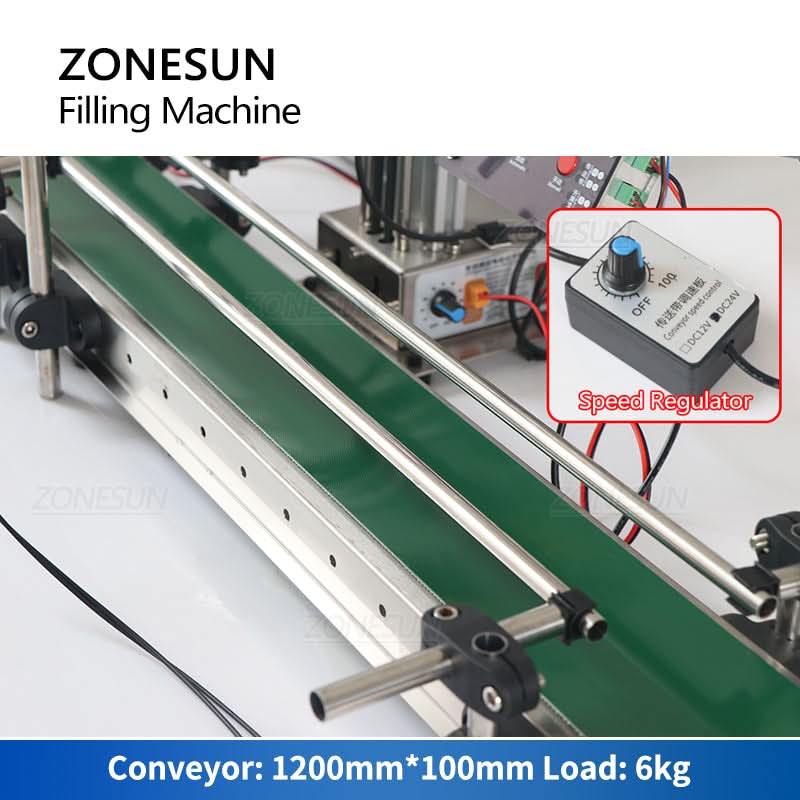

Conveyor Size 1200 × 100 mm (L × W)
Conveyor Load Capacity 6 kg
Machine Weight About 13.5 kg
Machine Size About 350 × 300 × 265 mm
The ZS-DTMP1D is a compact liquid filling line combining a precision magnetic pump with a conveyor system, engineered for accurate and hygienic filling of corrosive and delicate liquids. Ideal for products such as insecticide, perfume, essential oils, beverages, and cosmetics, it offers consistent flow control and compatibility with small containers. Its stainless steel magnetic pump ensures high dosing precision and long-term durability, making it suitable for daily chemical, food, and pharmaceutical applications.
Parameter Details
Model ZS-DTMP1D
Voltage 220V / 110V, 185W
Pump Type 316L Stainless Steel Magnetic Pump
Filling Range 10–600 ml
Max Flow Rate 6L/min (based on water)
Filling Speed About 8–15 bottles/min (based on 110ml)
Bottle Height 40–210 mm
Bottle Body Diameter ≤80 mm
Bottle Opening Diameter >15 mm
Nozzle Diameter (OD) 10 mm
Conveyor Size 1200 × 100 mm (L × W)
Conveyor Load Capacity 6 kg
Machine Weight About 13.5 kg
Machine Size About 350 × 300 × 265 mm
Original: $828.99
-70%$828.99
$248.70Description
The ZS-DTMP1D is a compact liquid filling line combining a precision magnetic pump with a conveyor system, engineered for accurate and hygienic filling of corrosive and delicate liquids. Ideal for products such as insecticide, perfume, essential oils, beverages, and cosmetics, it offers consistent flow control and compatibility with small containers. Its stainless steel magnetic pump ensures high dosing precision and long-term durability, making it suitable for daily chemical, food, and pharmaceutical applications.
Parameter Details
Model ZS-DTMP1D
Voltage 220V / 110V, 185W
Pump Type 316L Stainless Steel Magnetic Pump
Filling Range 10–600 ml
Max Flow Rate 6L/min (based on water)
Filling Speed About 8–15 bottles/min (based on 110ml)
Bottle Height 40–210 mm
Bottle Body Diameter ≤80 mm
Bottle Opening Diameter >15 mm
Nozzle Diameter (OD) 10 mm
Conveyor Size 1200 × 100 mm (L × W)
Conveyor Load Capacity 6 kg
Machine Weight About 13.5 kg
Machine Size About 350 × 300 × 265 mm
