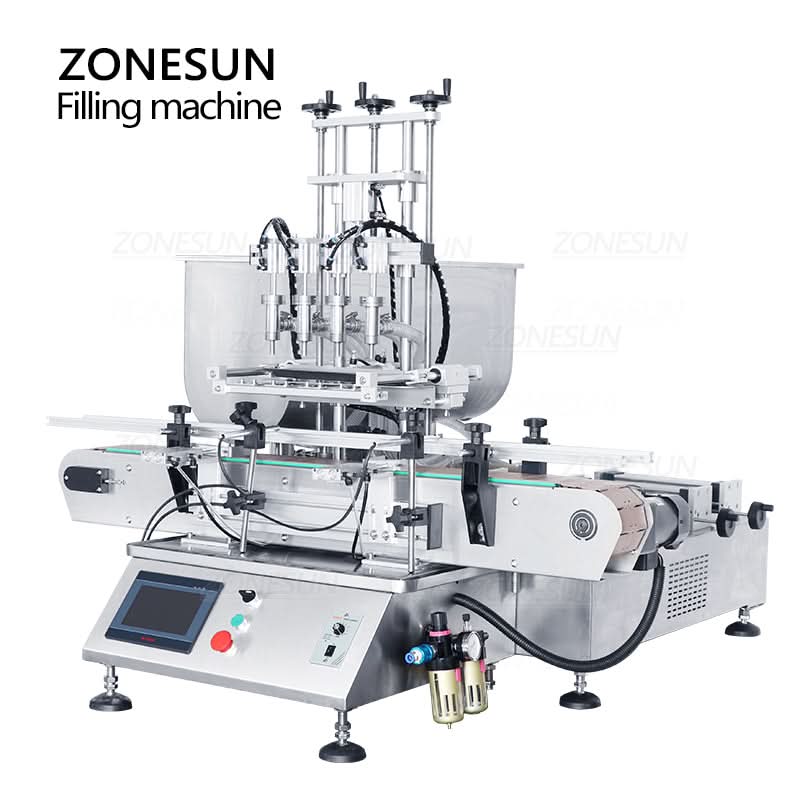

ZONESUN ZS-DTGT4T Pneumatic 4-Nozzle Liquid and Paste Filling Machine
The ZS-DTGT4T is a fully automatic filling machine designed for both liquids and pastes, including juice, shampoo, shower gel, and chocolate. Equipped with four independently controlled pneumatic nozzles, it offers flexible and efficient filling for a wide range of viscosities. Ideal for use in cosmetics, beverages, daily chemicals, and pharmaceuticals. The machine is easy to operate and compatible with desktop labeling and capping machines. Custom filling ranges are available upon request. Please feel free to contact us if you need.
Parameter
Machine Model ZS-DTGT4T
Power 110/220V 50–60Hz, Approx. 300W
Filling Range 10–100 ml / 30–300 ml / 50–500 ml / 100–1000 ml
Working Speed Approx. 20–30 bottles/min (depends on liquid & volume)
Hopper Capacity 55 L
Conveyor Size Approx. 1300 × 100 mm
Filling Head Diameter OD 10 mm (customizable)
Filling Accuracy ≤ ±1%
Machine Size Approx. 1300 × 1440 × 1200 mm
Package Size Approx. 1550 × 1400 × 1330 mm
Package Weight Approx. 237 kg
The ZS-DTGT4T is a fully automatic filling machine designed for both liquids and pastes, including juice, shampoo, shower gel, and chocolate. Equipped with four independently controlled pneumatic nozzles, it offers flexible and efficient filling for a wide range of viscosities. Ideal for use in cosmetics, beverages, daily chemicals, and pharmaceuticals. The machine is easy to operate and compatible with desktop labeling and capping machines. Custom filling ranges are available upon request. Please feel free to contact us if you need.
Parameter
Machine Model ZS-DTGT4T
Power 110/220V 50–60Hz, Approx. 300W
Filling Range 10–100 ml / 30–300 ml / 50–500 ml / 100–1000 ml
Working Speed Approx. 20–30 bottles/min (depends on liquid & volume)
Hopper Capacity 55 L
Conveyor Size Approx. 1300 × 100 mm
Filling Head Diameter OD 10 mm (customizable)
Filling Accuracy ≤ ±1%
Machine Size Approx. 1300 × 1440 × 1200 mm
Package Size Approx. 1550 × 1400 × 1330 mm
Package Weight Approx. 237 kg
Original: $3,899.00
-70%$3,899.00
$1,169.70Description
The ZS-DTGT4T is a fully automatic filling machine designed for both liquids and pastes, including juice, shampoo, shower gel, and chocolate. Equipped with four independently controlled pneumatic nozzles, it offers flexible and efficient filling for a wide range of viscosities. Ideal for use in cosmetics, beverages, daily chemicals, and pharmaceuticals. The machine is easy to operate and compatible with desktop labeling and capping machines. Custom filling ranges are available upon request. Please feel free to contact us if you need.
Parameter
Machine Model ZS-DTGT4T
Power 110/220V 50–60Hz, Approx. 300W
Filling Range 10–100 ml / 30–300 ml / 50–500 ml / 100–1000 ml
Working Speed Approx. 20–30 bottles/min (depends on liquid & volume)
Hopper Capacity 55 L
Conveyor Size Approx. 1300 × 100 mm
Filling Head Diameter OD 10 mm (customizable)
Filling Accuracy ≤ ±1%
Machine Size Approx. 1300 × 1440 × 1200 mm
Package Size Approx. 1550 × 1400 × 1330 mm
Package Weight Approx. 237 kg
