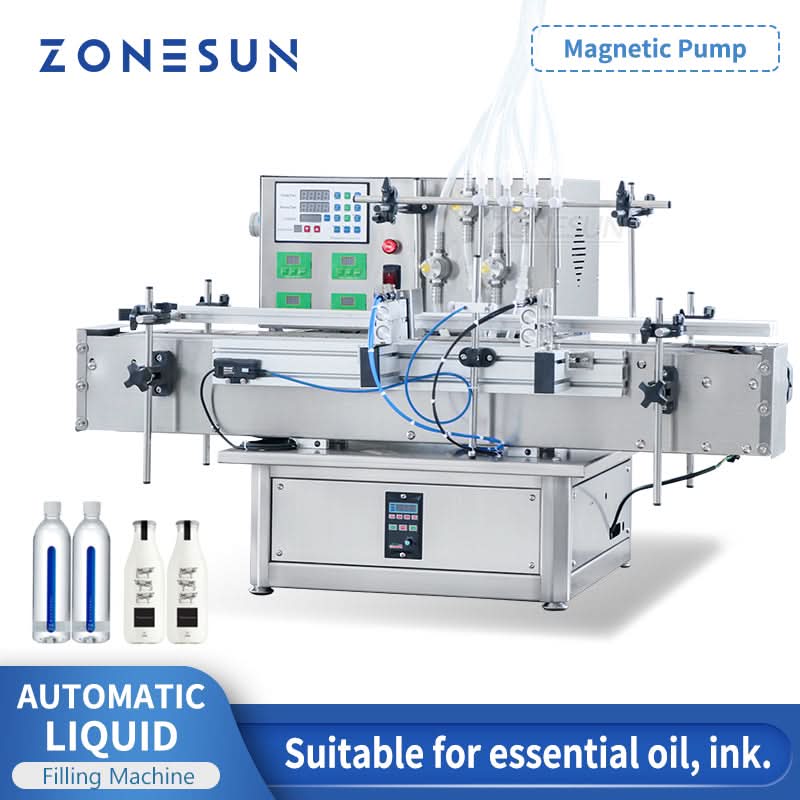

ZONESUN ZS-DTMP4Y Automatic Magnetic Pump Filling Machine for Liquid & Soy Sauce
The ZONESUN ZS-DTMP4Y is an automatic desktop liquid filling machine equipped with four magnetic pump heads for precise and hygienic dosing. Designed for low-viscosity liquids like oil, soy sauce, perfume, ink, and milk, it ensures consistent flow control and accurate filling volumes. Compact and versatile, it can be easily integrated with capping and labeling machines to form a streamlined, fully automated production line.
ZS-DTMP4Y Filling Machine Specifications
Parameter Specification
Machine Model ZS-DTMP4Y
Power Supply 110/220V, 50–60Hz, 300W
Maximum Flow Rate 6L/min per nozzle (based on water)
Working Speed 20–30 bottles/min
Air Pressure 0.3–0.4 MPa
Filling Accuracy ≤ ±1% (for water)
Filling Nozzle Dimension Standard: 8mm and 6mm
Delay Range 0.01s–999.9s
Count Range 1–99999 times
Air Compressor Connector Size OD 6/8mm
Package Size Approx. 1150 × 650 × 820mm
Net Weight / Gross Weight Approx. 59kg / 89kg
The ZONESUN ZS-DTMP4Y is an automatic desktop liquid filling machine equipped with four magnetic pump heads for precise and hygienic dosing. Designed for low-viscosity liquids like oil, soy sauce, perfume, ink, and milk, it ensures consistent flow control and accurate filling volumes. Compact and versatile, it can be easily integrated with capping and labeling machines to form a streamlined, fully automated production line.
ZS-DTMP4Y Filling Machine Specifications
Parameter Specification
Machine Model ZS-DTMP4Y
Power Supply 110/220V, 50–60Hz, 300W
Maximum Flow Rate 6L/min per nozzle (based on water)
Working Speed 20–30 bottles/min
Air Pressure 0.3–0.4 MPa
Filling Accuracy ≤ ±1% (for water)
Filling Nozzle Dimension Standard: 8mm and 6mm
Delay Range 0.01s–999.9s
Count Range 1–99999 times
Air Compressor Connector Size OD 6/8mm
Package Size Approx. 1150 × 650 × 820mm
Net Weight / Gross Weight Approx. 59kg / 89kg
Description
The ZONESUN ZS-DTMP4Y is an automatic desktop liquid filling machine equipped with four magnetic pump heads for precise and hygienic dosing. Designed for low-viscosity liquids like oil, soy sauce, perfume, ink, and milk, it ensures consistent flow control and accurate filling volumes. Compact and versatile, it can be easily integrated with capping and labeling machines to form a streamlined, fully automated production line.
ZS-DTMP4Y Filling Machine Specifications
Parameter Specification
Machine Model ZS-DTMP4Y
Power Supply 110/220V, 50–60Hz, 300W
Maximum Flow Rate 6L/min per nozzle (based on water)
Working Speed 20–30 bottles/min
Air Pressure 0.3–0.4 MPa
Filling Accuracy ≤ ±1% (for water)
Filling Nozzle Dimension Standard: 8mm and 6mm
Delay Range 0.01s–999.9s
Count Range 1–99999 times
Air Compressor Connector Size OD 6/8mm
Package Size Approx. 1150 × 650 × 820mm
Net Weight / Gross Weight Approx. 59kg / 89kg
