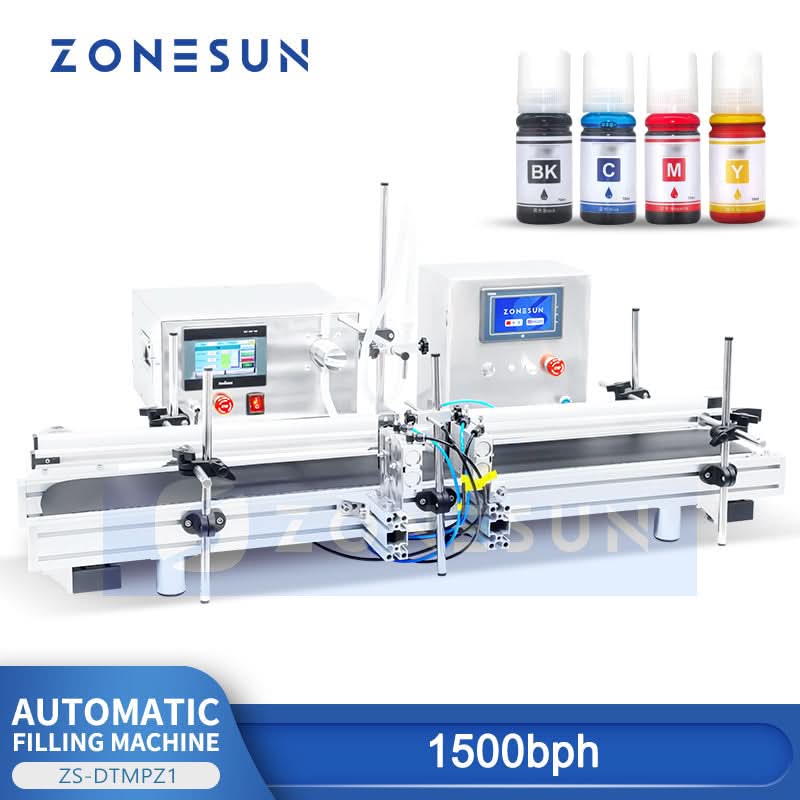

Zonesun ZS-DTMPZ1 Automatic Magnetic Pump Liquid Filling Machine with Conveyor
DESCRIPTION

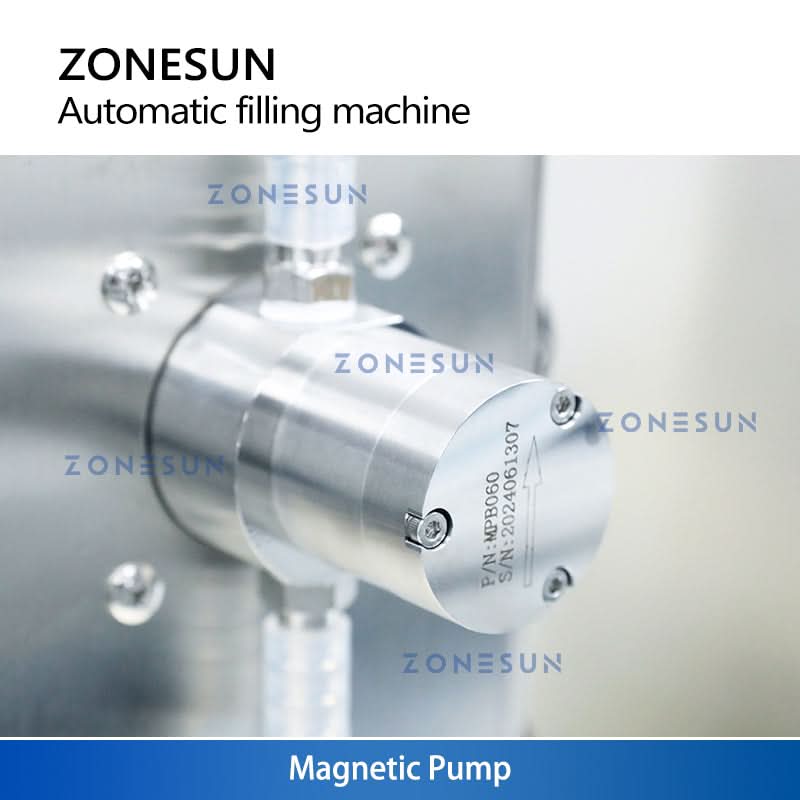

The ZS-DTMPZ1 is a compact and efficient liquid filling system integrating a magnetic pump filler, control box, and conveyor belt for streamlined operation. Known for its exceptional accuracy, the magnetic pump supports precise filling volumes, which can be directly set via the machine interface—making calibration fast and user-friendly. This system is ideal for filling low-viscosity liquids such as water and juice, and is widely applied across the food, biotech, and daily chemical industries. Its small footprint and reliable performance make it a smart choice for production facilities seeking precision, ease of use, and minimal maintenance.
Parameter
Machine Model ZS-DTMPZ1
Voltage 220V / 110V, 50–60Hz
Power Approx. 170W
Filling Speed Approx. 20–25 bottles/min (depends on bottle size and liquid type)
Max Flow Rate 6L/min (based on water)
Filling Range 10–700ml
Filling Accuracy 0.2%–1%
Conveyor Belt Size Approx. 1020 × 140mm (Length × Width)
DESCRIPTION
The ZS-DTMPZ1 is a compact and efficient liquid filling system integrating a magnetic pump filler, control box, and conveyor belt for streamlined operation. Known for its exceptional accuracy, the magnetic pump supports precise filling volumes, which can be directly set via the machine interface—making calibration fast and user-friendly. This system is ideal for filling low-viscosity liquids such as water and juice, and is widely applied across the food, biotech, and daily chemical industries. Its small footprint and reliable performance make it a smart choice for production facilities seeking precision, ease of use, and minimal maintenance.
Parameter
Machine Model ZS-DTMPZ1
Voltage 220V / 110V, 50–60Hz
Power Approx. 170W
Filling Speed Approx. 20–25 bottles/min (depends on bottle size and liquid type)
Max Flow Rate 6L/min (based on water)
Filling Range 10–700ml
Filling Accuracy 0.2%–1%
Conveyor Belt Size Approx. 1020 × 140mm (Length × Width)
