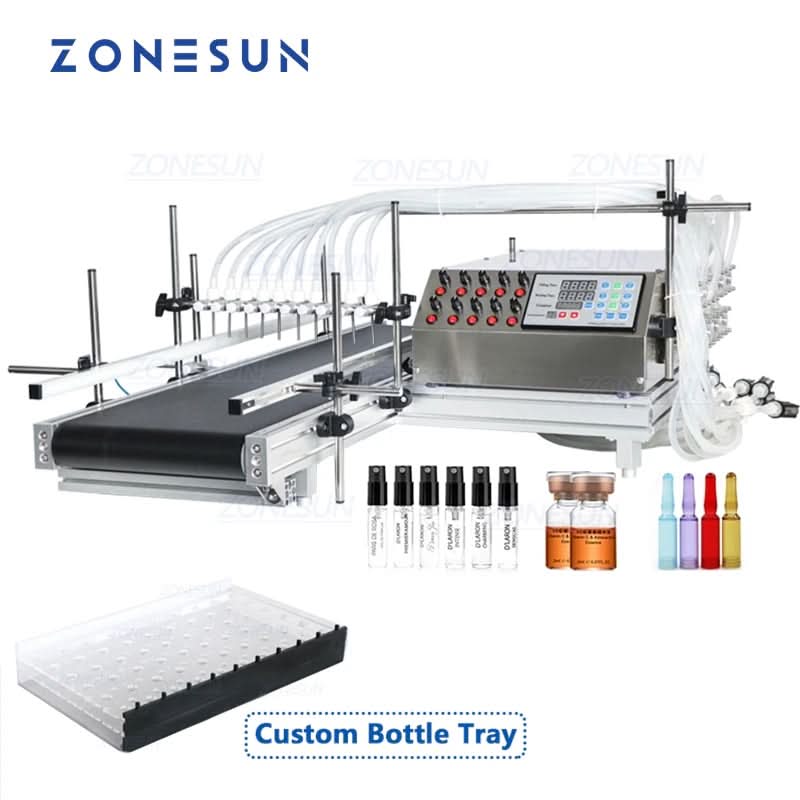

ZONESUN ZS-DTPP10B Desktop Liquid Filling Machine with 10 Nozzles

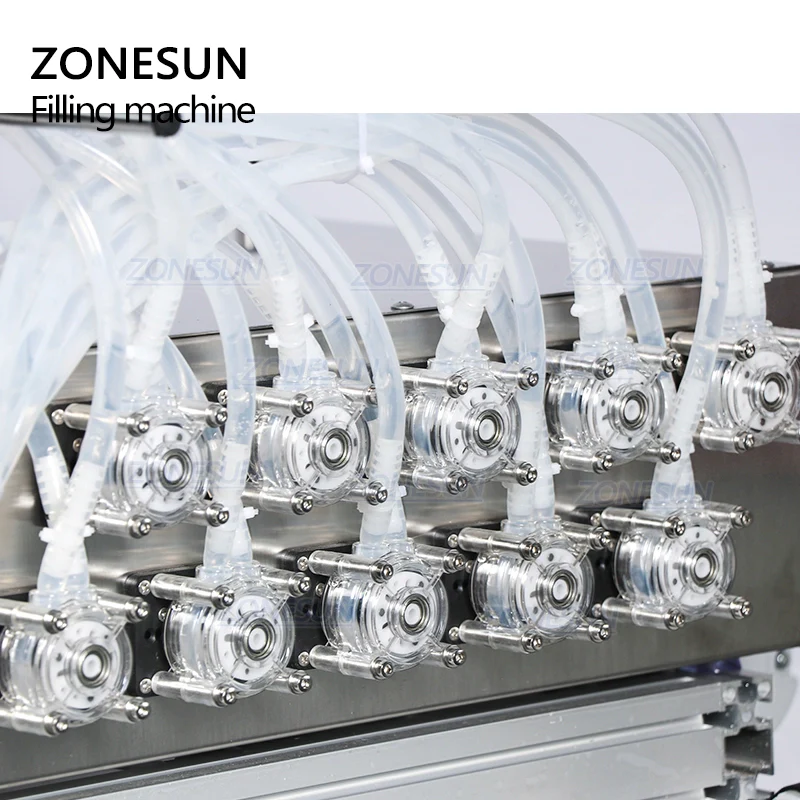

The ZONESUN ZS-DTPP10B is a desktop automatic liquid filling machine designed for precision and hygiene. Ideal for eye drops, perfumes, essential oils, and more, it features ten independently controlled nozzles and peristaltic pumps to prevent liquid contamination. Its compact design and customizable bottle tray make it perfect for pharmaceutical, cosmetic, and daily chemical industries. A smart solution to boost productivity and maintain product purity.
Parameter
Machine Model ZS-DTPP10B
Power Supply AC 110V/220V, 50–60Hz, 60W × 4
Filling Range A. 5–50ml (default), B. 0.3–5ml
Maximum Flow 650ml/min per nozzle (based on water)
Filling Nozzles 10 (customizable based on user requirements)
Working Speed 70–90 bottles/min (based on 50ml water)
Filling Accuracy ≤±1% (for water)
Diameter of Filling Nozzle 4mm
Delay Range 0.01–999.9 seconds
Conveyor Size 1080 × 350 mm (L × W)
Machine Size Approx. 380 × 490 × 300 mm (excluding conveyor belt)
Net Weight Approx. 38 kg
The ZONESUN ZS-DTPP10B is a desktop automatic liquid filling machine designed for precision and hygiene. Ideal for eye drops, perfumes, essential oils, and more, it features ten independently controlled nozzles and peristaltic pumps to prevent liquid contamination. Its compact design and customizable bottle tray make it perfect for pharmaceutical, cosmetic, and daily chemical industries. A smart solution to boost productivity and maintain product purity.
Parameter
Machine Model ZS-DTPP10B
Power Supply AC 110V/220V, 50–60Hz, 60W × 4
Filling Range A. 5–50ml (default), B. 0.3–5ml
Maximum Flow 650ml/min per nozzle (based on water)
Filling Nozzles 10 (customizable based on user requirements)
Working Speed 70–90 bottles/min (based on 50ml water)
Filling Accuracy ≤±1% (for water)
Diameter of Filling Nozzle 4mm
Delay Range 0.01–999.9 seconds
Conveyor Size 1080 × 350 mm (L × W)
Machine Size Approx. 380 × 490 × 300 mm (excluding conveyor belt)
Net Weight Approx. 38 kg
Description
The ZONESUN ZS-DTPP10B is a desktop automatic liquid filling machine designed for precision and hygiene. Ideal for eye drops, perfumes, essential oils, and more, it features ten independently controlled nozzles and peristaltic pumps to prevent liquid contamination. Its compact design and customizable bottle tray make it perfect for pharmaceutical, cosmetic, and daily chemical industries. A smart solution to boost productivity and maintain product purity.
Parameter
Machine Model ZS-DTPP10B
Power Supply AC 110V/220V, 50–60Hz, 60W × 4
Filling Range A. 5–50ml (default), B. 0.3–5ml
Maximum Flow 650ml/min per nozzle (based on water)
Filling Nozzles 10 (customizable based on user requirements)
Working Speed 70–90 bottles/min (based on 50ml water)
Filling Accuracy ≤±1% (for water)
Diameter of Filling Nozzle 4mm
Delay Range 0.01–999.9 seconds
Conveyor Size 1080 × 350 mm (L × W)
Machine Size Approx. 380 × 490 × 300 mm (excluding conveyor belt)
Net Weight Approx. 38 kg
