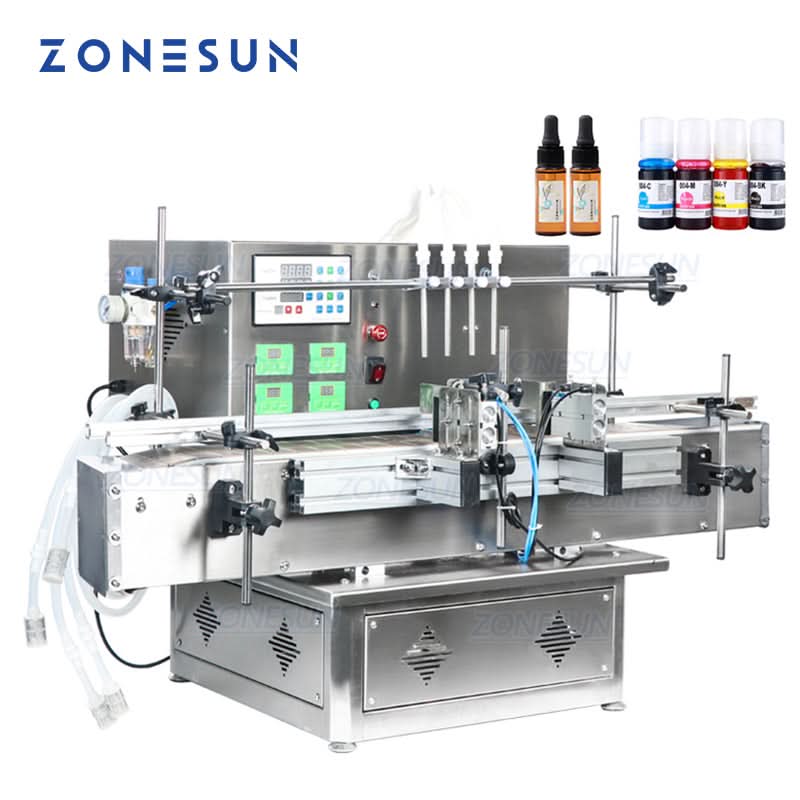

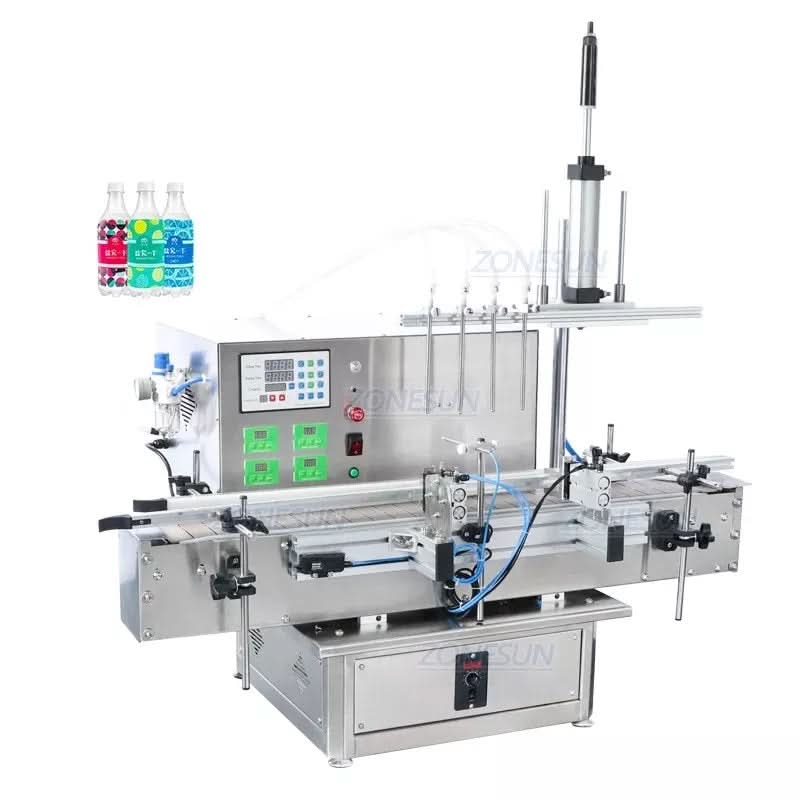

Zonesun ZS-DTPP4D / ZS-DTPP4C Automatic 4 Heads Liquid Lotion Peristaltic Pump Filling Machine
Attention
This machine can work with tabletop automatic capping machine and labeling machine, realizing automated production. If you need, please contact us. Thank you!
Desktop full automatic machine is very efficient with high cost performance. It is widely used in daily chemical and other industries such as essential oils, perfumes, juice liquid etc. Machine with peristaltic pump is easy to change tube. Liquid won't pass through the pump. Ensue the cleanliness of the liquid,It is good choice for strong corrosive liquid such as biological liquid, eye drops, sulfuric acid, hydrochloric acid, disinfectant, essential oils, solvents, etc
Parameter
- Machine model:ZS-DTPP4C
- Power supply:110/220V 50Hz-60Hz 60 W(Each Pump)
- Filling Range:2500 ml/min
- Maximum flow:2500 m/min for each nozzle (based on water )
- Filling nozzles:4(we can customize the nozzles based on your demands)
- Working speed:30-50 bottles/min(based on bottles and liquids)
- Air pressure:0.3-0.4MPa
- Filling accuracy:≤±1% (For water)
- Diameter of filling nozzle:6/8mm
- Delay range:0.01-999.9s
- Belt length:1 m
- Size of air compressor connector:OD 8 mm
Operation panel can show the detailed working data,make the data visual.lt will be easier to adjust and control the machine for customer.With memory function,can see the product quantity.

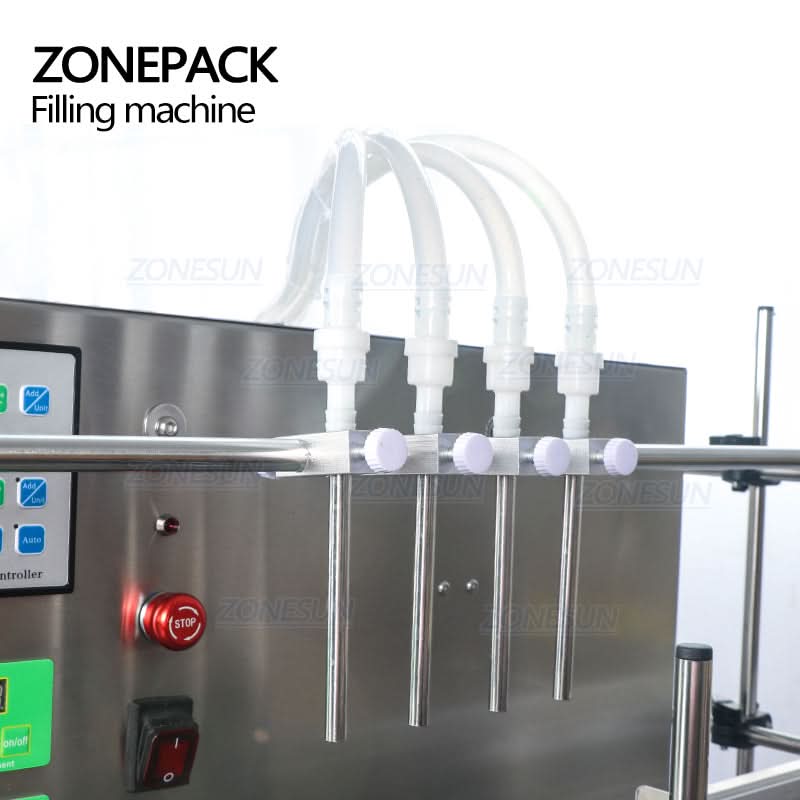

Each nozzle is controlled by each pump,can be used to fill different liquid at the same time,each nozzle can be controlled separately.The flling speed is adjustable.We also offer this machine but with 6/8 nozzles,contact us to buy it.

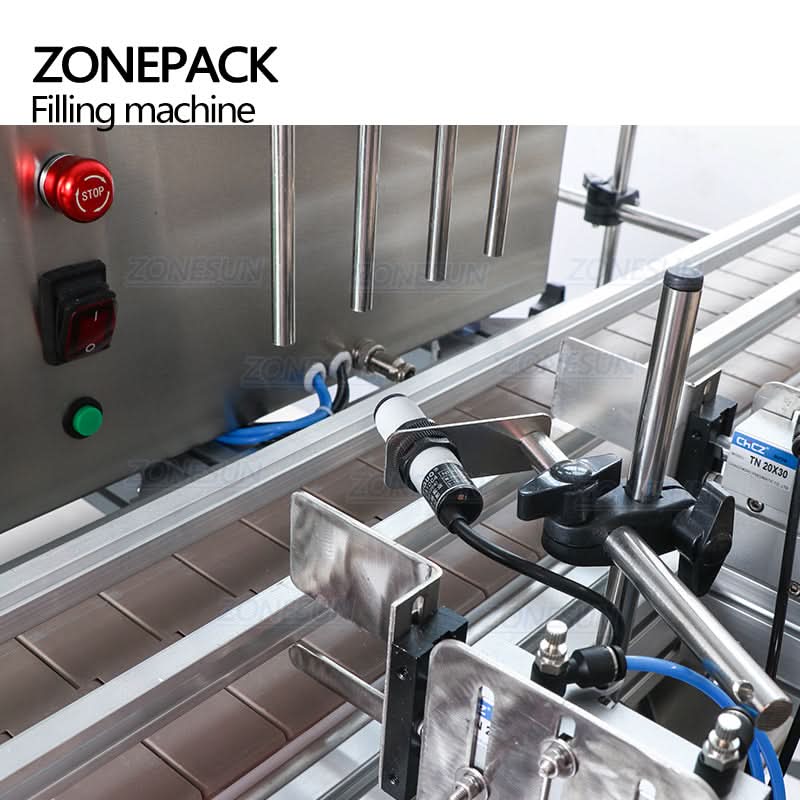

Electric eye can detect the passing through bottles and send the signal back to the system,make sure it fill liquid accurately and will not miss any bottles.
The chain conveyor has larger weight capacity which is good for transport heavier products.Compared with belt conveyor,it is more suitable for large volume products.The conveyor speed can be controlled separately by the below operation panel.

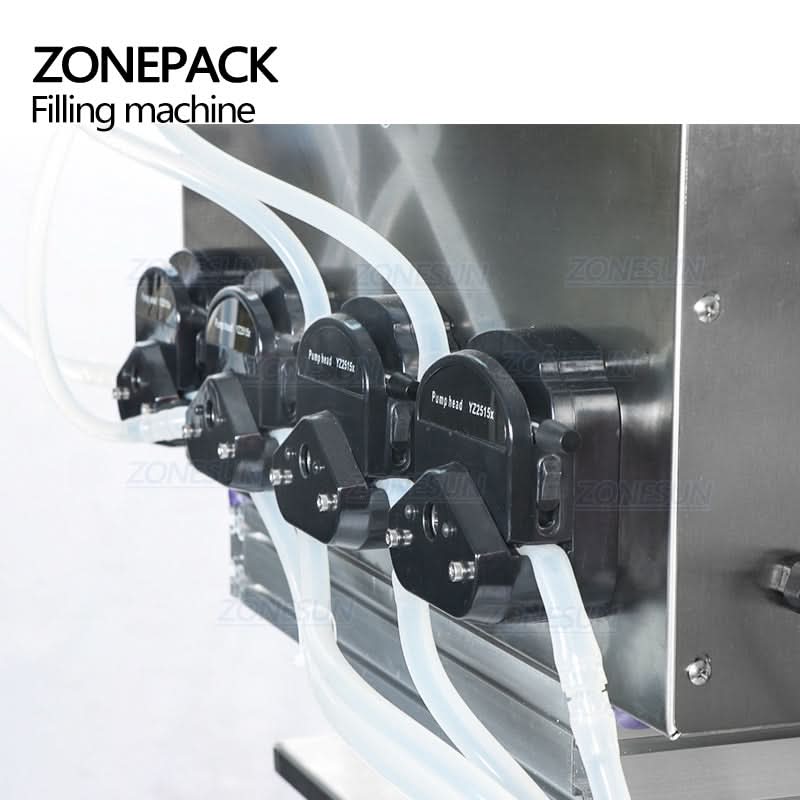

The liquid will not pass through the pump and be flled.Ensure the liquid is clean and improve your production quality.Compared with another peristaltic pump filling machine,this one will be easier to change filling hose.
