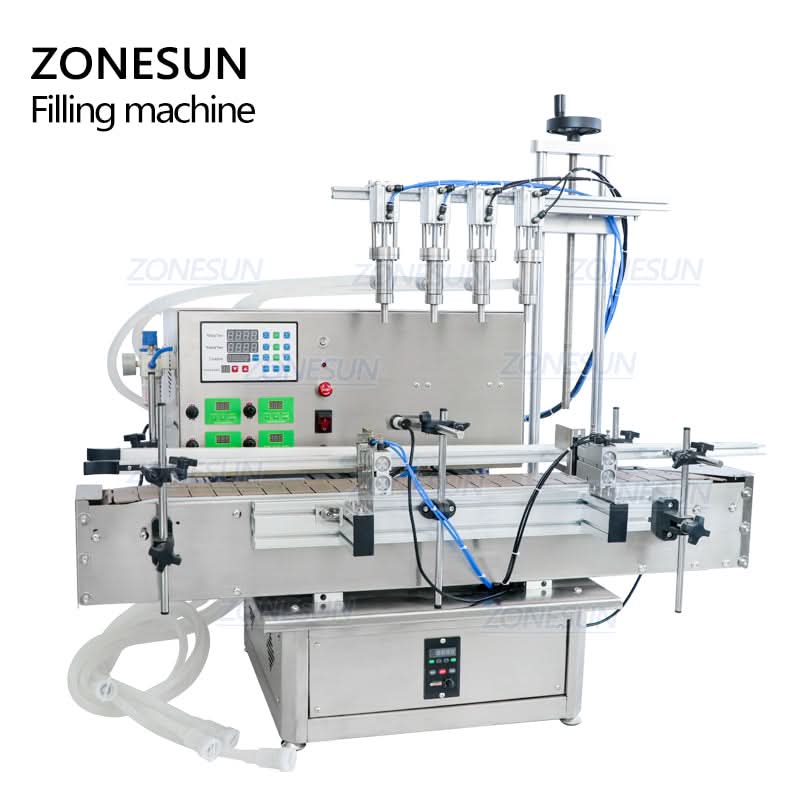

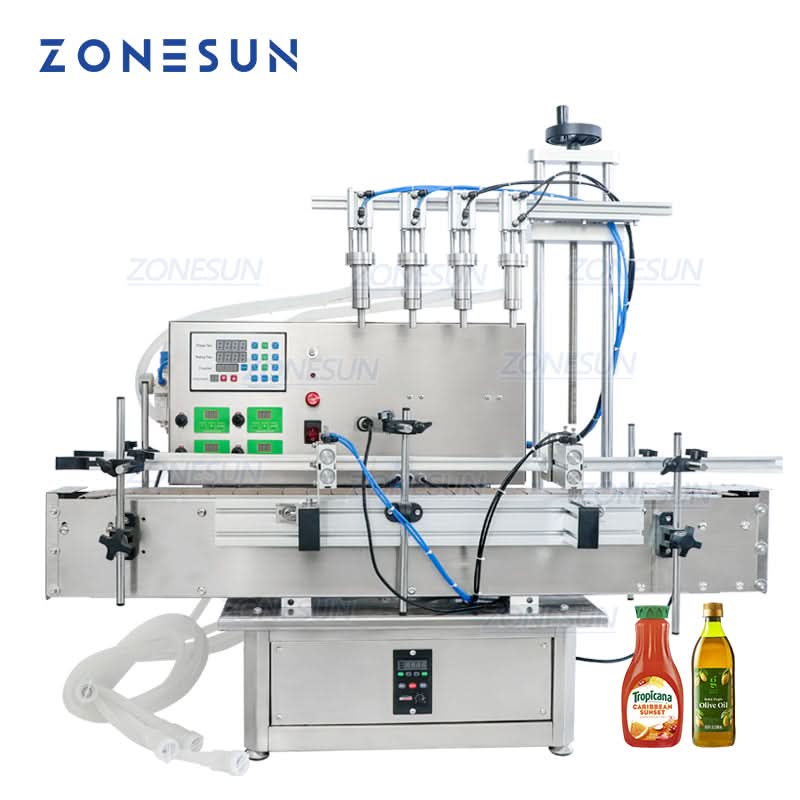

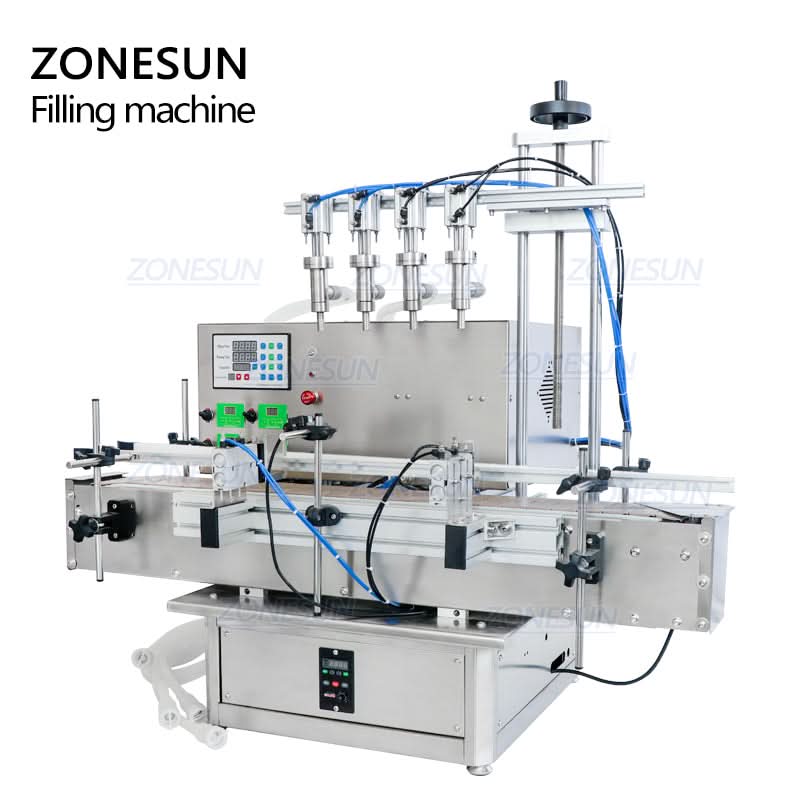

ZONESUN ZS-DTPP4E Automatic Liquid Gel Filling Machine with 4 Pneumatic Nozzles

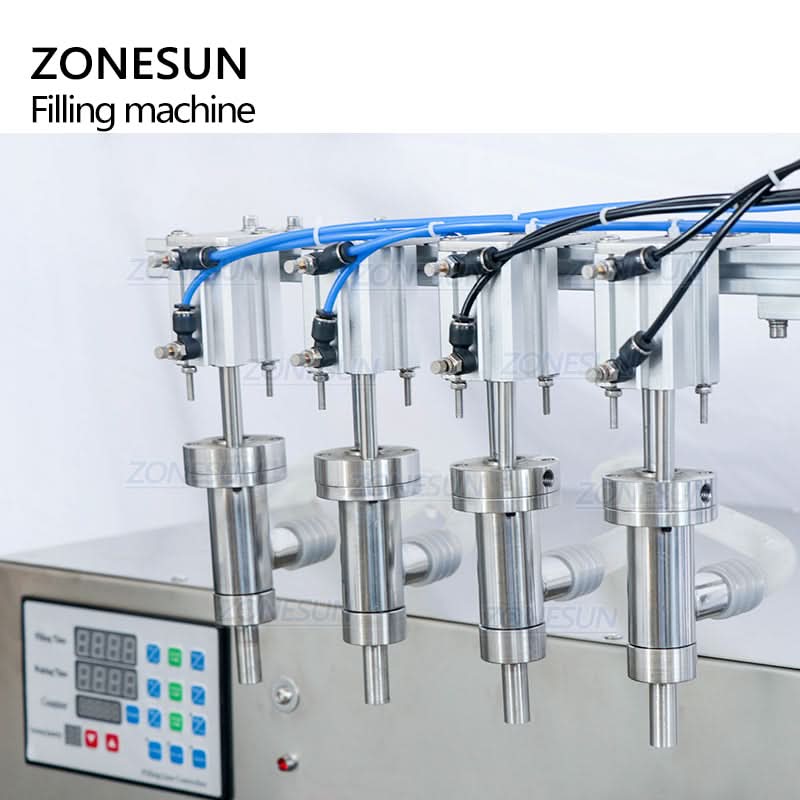

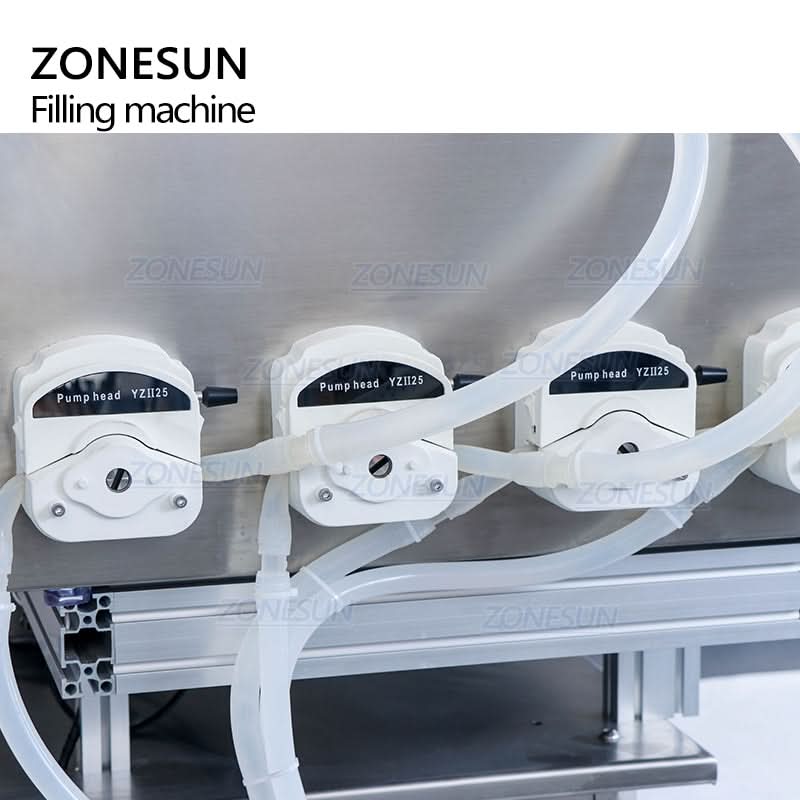

The ZONESUN ZS-DTPP4E is a versatile liquid filling machine designed for a wide range of products including juice, essential oils, ink, and gel. Equipped with four pneumatic filling nozzles and precision peristaltic pumps, it ensures accurate and efficient filling. Ideal for small to medium-volume production, it integrates smoothly with automated capping and labeling systems—perfect for food, cosmetics, chemical, and pharmaceutical applications.
ZS-DTPP4E Filling Machine Specifications
Parameter Specification
Machine Model ZS-DTPP4E
Voltage AC110V/220V 50Hz–60Hz
Power 60W (Each Pump)
Recommended Filling Volume 10–1000ml (Gel is better ≤100ml)
Maximum Flow 4000ml/min per nozzle (based on water)
Number of Filling Nozzles 4 (Customizable based on your requirements)
Working Speed 30–50 bottles/min (depends on bottles and liquids)
Air Pressure 0.3–0.4MPa
Filling Accuracy ≤ ±1% (for water)
Delay Range 0.01s–999.9s
Belt Length 1.0m
Air Compressor Connector Size OD8mm
Suitable Bottle Height <220mm (Customizable, max height 300mm)
Machine Size Approx. 1100 × 580 × 1070mm
Conveyor Size Approx. 1100 × 115mm
The ZONESUN ZS-DTPP4E is a versatile liquid filling machine designed for a wide range of products including juice, essential oils, ink, and gel. Equipped with four pneumatic filling nozzles and precision peristaltic pumps, it ensures accurate and efficient filling. Ideal for small to medium-volume production, it integrates smoothly with automated capping and labeling systems—perfect for food, cosmetics, chemical, and pharmaceutical applications.
ZS-DTPP4E Filling Machine Specifications
Parameter Specification
Machine Model ZS-DTPP4E
Voltage AC110V/220V 50Hz–60Hz
Power 60W (Each Pump)
Recommended Filling Volume 10–1000ml (Gel is better ≤100ml)
Maximum Flow 4000ml/min per nozzle (based on water)
Number of Filling Nozzles 4 (Customizable based on your requirements)
Working Speed 30–50 bottles/min (depends on bottles and liquids)
Air Pressure 0.3–0.4MPa
Filling Accuracy ≤ ±1% (for water)
Delay Range 0.01s–999.9s
Belt Length 1.0m
Air Compressor Connector Size OD8mm
Suitable Bottle Height <220mm (Customizable, max height 300mm)
Machine Size Approx. 1100 × 580 × 1070mm
Conveyor Size Approx. 1100 × 115mm
Original: $1,663.99
-70%$1,663.99
$499.20Description
The ZONESUN ZS-DTPP4E is a versatile liquid filling machine designed for a wide range of products including juice, essential oils, ink, and gel. Equipped with four pneumatic filling nozzles and precision peristaltic pumps, it ensures accurate and efficient filling. Ideal for small to medium-volume production, it integrates smoothly with automated capping and labeling systems—perfect for food, cosmetics, chemical, and pharmaceutical applications.
ZS-DTPP4E Filling Machine Specifications
Parameter Specification
Machine Model ZS-DTPP4E
Voltage AC110V/220V 50Hz–60Hz
Power 60W (Each Pump)
Recommended Filling Volume 10–1000ml (Gel is better ≤100ml)
Maximum Flow 4000ml/min per nozzle (based on water)
Number of Filling Nozzles 4 (Customizable based on your requirements)
Working Speed 30–50 bottles/min (depends on bottles and liquids)
Air Pressure 0.3–0.4MPa
Filling Accuracy ≤ ±1% (for water)
Delay Range 0.01s–999.9s
Belt Length 1.0m
Air Compressor Connector Size OD8mm
Suitable Bottle Height <220mm (Customizable, max height 300mm)
Machine Size Approx. 1100 × 580 × 1070mm
Conveyor Size Approx. 1100 × 115mm
