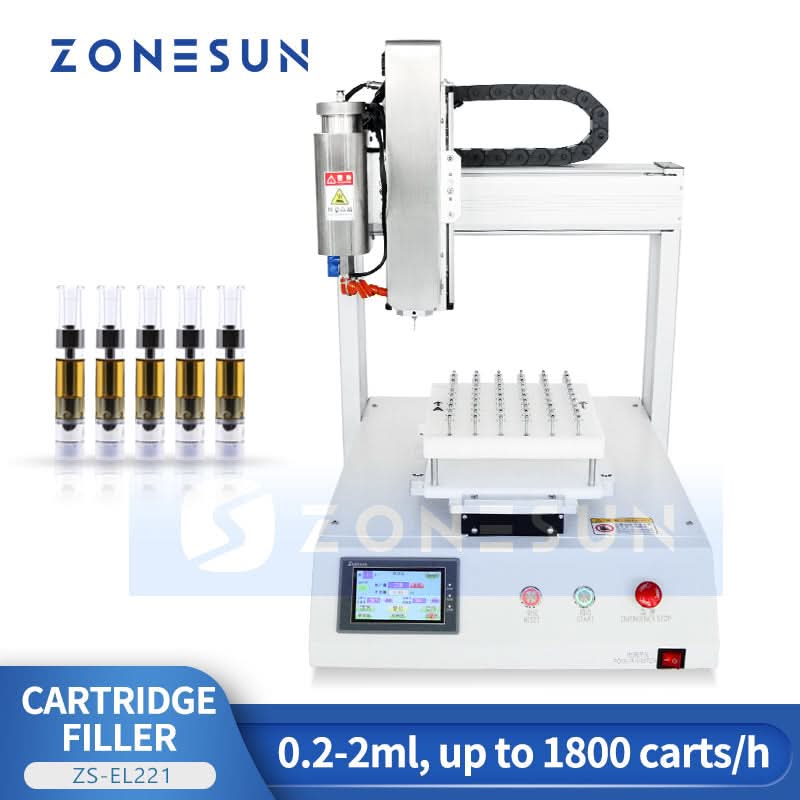

ZONESUN ZS-EL221 Automatic Liquid Cartridge Filler for Oil & E-Juice
DESCRIPTION
Engineered for precision micro-filling, this automated machine uses a robotic nozzle for accurate dispensing into cartridges and atomizers. With programmable X-Y axis movement and automatic container transport, it’s widely used in biological and chemical applications for filling oil, e-liquid, and e-juice with clean, efficient performance.
Parameter
Machine Model ZS-EL221
Voltage 220V / 110V, 50–60Hz
Power 500W
Number of Filling Nozzles 1 (Customizable)
Filling Range 0.2–2ml
Filling Speed Approx. 10–30 pcs/min (depends on cartridge size and liquid type)
Suitable Bottle Diameter Greater than 2mm
Suitable Bottle Height 5–100mm
Oil Storage Barrel Capacity 300ml
Machine Size Approx. 520 × 640 × 650mm
Machine Weight Approx. 46kg
Package Size Approx. 570 × 700 × 795mm
Package Weight Approx. 68kg
DESCRIPTION
Engineered for precision micro-filling, this automated machine uses a robotic nozzle for accurate dispensing into cartridges and atomizers. With programmable X-Y axis movement and automatic container transport, it’s widely used in biological and chemical applications for filling oil, e-liquid, and e-juice with clean, efficient performance.
Parameter
Machine Model ZS-EL221
Voltage 220V / 110V, 50–60Hz
Power 500W
Number of Filling Nozzles 1 (Customizable)
Filling Range 0.2–2ml
Filling Speed Approx. 10–30 pcs/min (depends on cartridge size and liquid type)
Suitable Bottle Diameter Greater than 2mm
Suitable Bottle Height 5–100mm
Oil Storage Barrel Capacity 300ml
Machine Size Approx. 520 × 640 × 650mm
Machine Weight Approx. 46kg
Package Size Approx. 570 × 700 × 795mm
Package Weight Approx. 68kg
Description
DESCRIPTION
Engineered for precision micro-filling, this automated machine uses a robotic nozzle for accurate dispensing into cartridges and atomizers. With programmable X-Y axis movement and automatic container transport, it’s widely used in biological and chemical applications for filling oil, e-liquid, and e-juice with clean, efficient performance.
Parameter
Machine Model ZS-EL221
Voltage 220V / 110V, 50–60Hz
Power 500W
Number of Filling Nozzles 1 (Customizable)
Filling Range 0.2–2ml
Filling Speed Approx. 10–30 pcs/min (depends on cartridge size and liquid type)
Suitable Bottle Diameter Greater than 2mm
Suitable Bottle Height 5–100mm
Oil Storage Barrel Capacity 300ml
Machine Size Approx. 520 × 640 × 650mm
Machine Weight Approx. 46kg
Package Size Approx. 570 × 700 × 795mm
Package Weight Approx. 68kg
