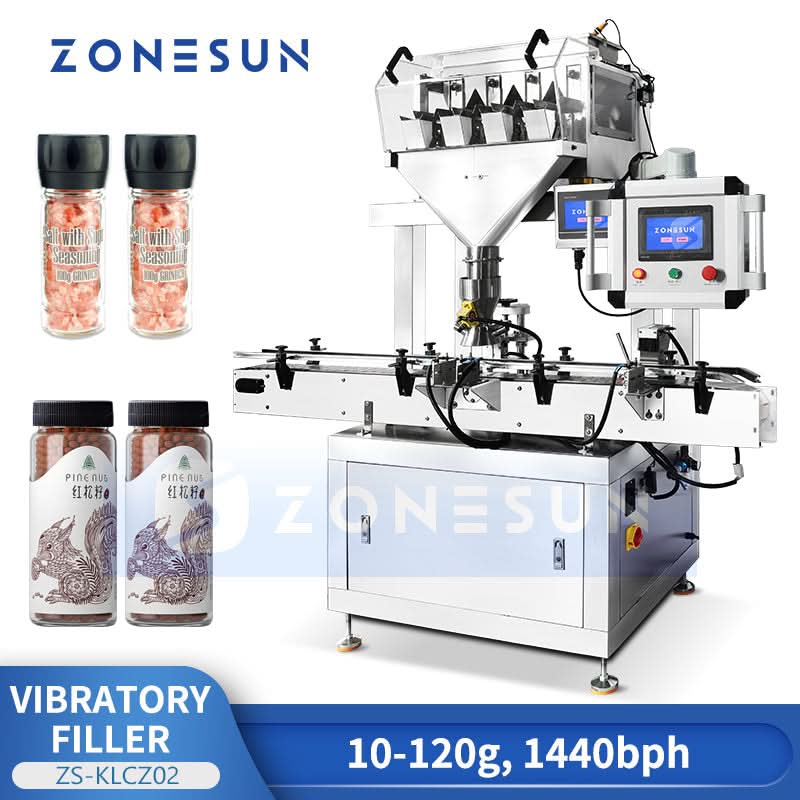

Zonesun ZS-KLCZ02 Vibratory Granule Weighing Filling Machine

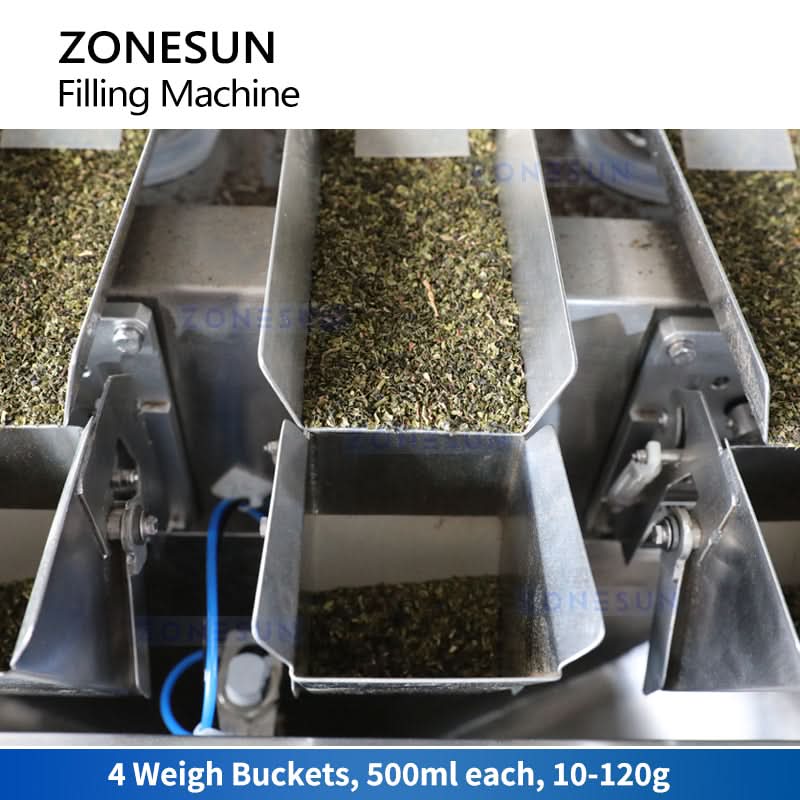

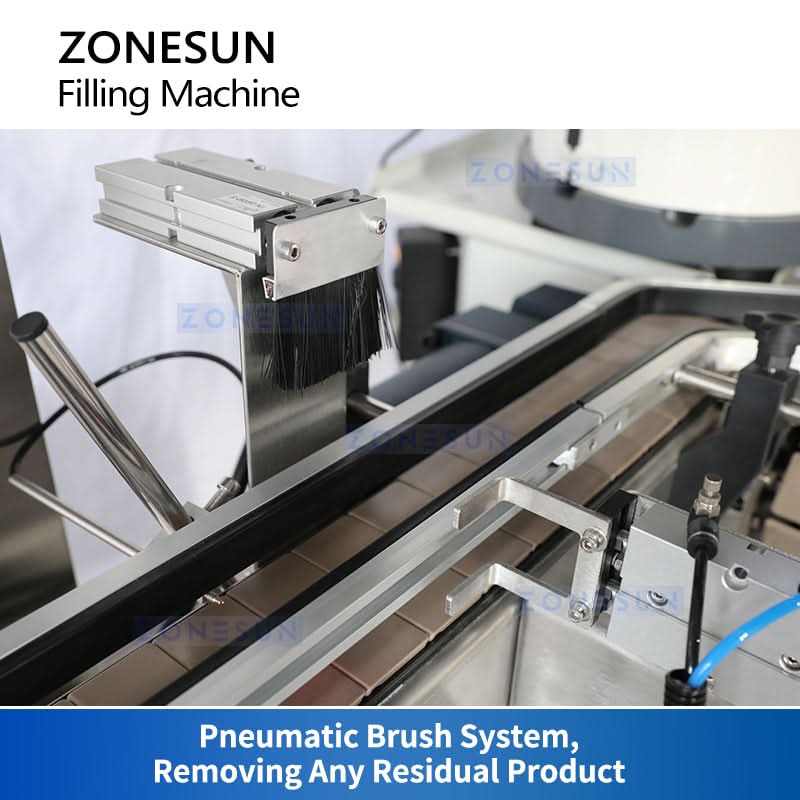

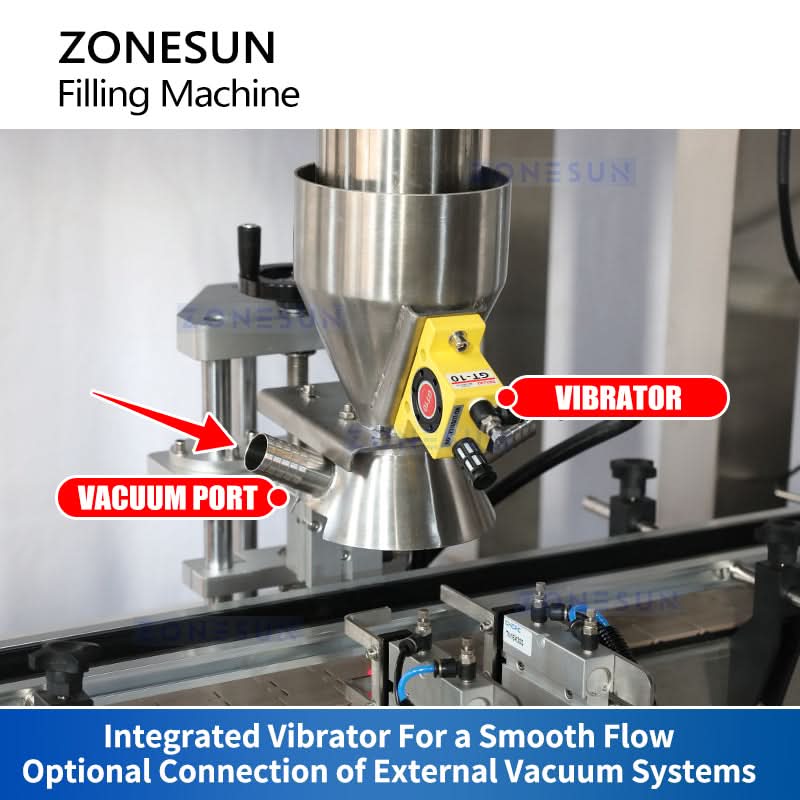

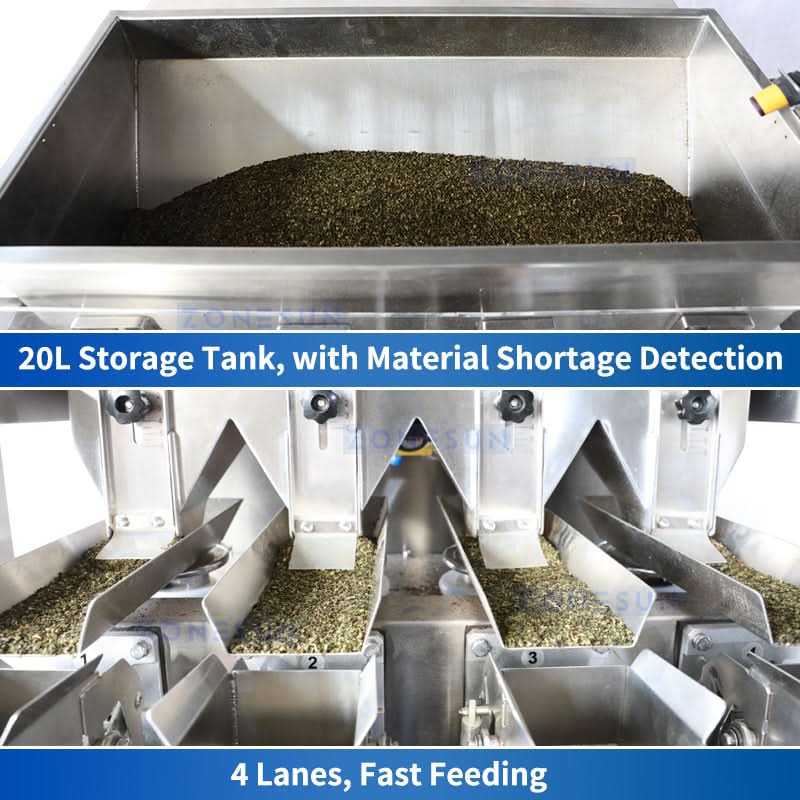

Maximize your packaging efficiency with our advanced automatic vibratory filler. This high-performance machine features a 20L hopper with continuous feeding and a low-level sensor for uninterrupted operation. A precise 4-lane weigher, equipped with four 500ml weighing buckets, delivers accurate filling (10-120g, ±0.2-2g accuracy) and stores up to 10 product memory settings for quick changeovers. The integrated single-head funnel with magnetic vibrator ensures smooth product flow, minimizing clogging. Integrated vacuum ports reduce dust during operation. A dual-pin bottle indexing system and a post-filling pneumatic brush ensure precise placement and clean bottle mouths for efficient capping. Achieve a high output of 20-24 bottles per minute while maintaining exceptional accuracy and cleanliness.
Specification
Model ZS-KLCZ02
Voltage 110V / 220V, 50 / 60Hz
Hopper Volume 20L
Lanes 4
Weigh Buckets 4 buckets, 500ml each
Filling Range 10–120g
Accuracy ±0.2–2g
Storage 10 product memory slots
Capacity 20–24 bottles per minute
Machine Size 2180 × 884 × 2038 mm
Packing Size 212 × 97 × 231 cm
Gross Weight 407 kg
Maximize your packaging efficiency with our advanced automatic vibratory filler. This high-performance machine features a 20L hopper with continuous feeding and a low-level sensor for uninterrupted operation. A precise 4-lane weigher, equipped with four 500ml weighing buckets, delivers accurate filling (10-120g, ±0.2-2g accuracy) and stores up to 10 product memory settings for quick changeovers. The integrated single-head funnel with magnetic vibrator ensures smooth product flow, minimizing clogging. Integrated vacuum ports reduce dust during operation. A dual-pin bottle indexing system and a post-filling pneumatic brush ensure precise placement and clean bottle mouths for efficient capping. Achieve a high output of 20-24 bottles per minute while maintaining exceptional accuracy and cleanliness.
Specification
Model ZS-KLCZ02
Voltage 110V / 220V, 50 / 60Hz
Hopper Volume 20L
Lanes 4
Weigh Buckets 4 buckets, 500ml each
Filling Range 10–120g
Accuracy ±0.2–2g
Storage 10 product memory slots
Capacity 20–24 bottles per minute
Machine Size 2180 × 884 × 2038 mm
Packing Size 212 × 97 × 231 cm
Gross Weight 407 kg
Description
Maximize your packaging efficiency with our advanced automatic vibratory filler. This high-performance machine features a 20L hopper with continuous feeding and a low-level sensor for uninterrupted operation. A precise 4-lane weigher, equipped with four 500ml weighing buckets, delivers accurate filling (10-120g, ±0.2-2g accuracy) and stores up to 10 product memory settings for quick changeovers. The integrated single-head funnel with magnetic vibrator ensures smooth product flow, minimizing clogging. Integrated vacuum ports reduce dust during operation. A dual-pin bottle indexing system and a post-filling pneumatic brush ensure precise placement and clean bottle mouths for efficient capping. Achieve a high output of 20-24 bottles per minute while maintaining exceptional accuracy and cleanliness.
Specification
Model ZS-KLCZ02
Voltage 110V / 220V, 50 / 60Hz
Hopper Volume 20L
Lanes 4
Weigh Buckets 4 buckets, 500ml each
Filling Range 10–120g
Accuracy ±0.2–2g
Storage 10 product memory slots
Capacity 20–24 bottles per minute
Machine Size 2180 × 884 × 2038 mm
Packing Size 212 × 97 × 231 cm
Gross Weight 407 kg
