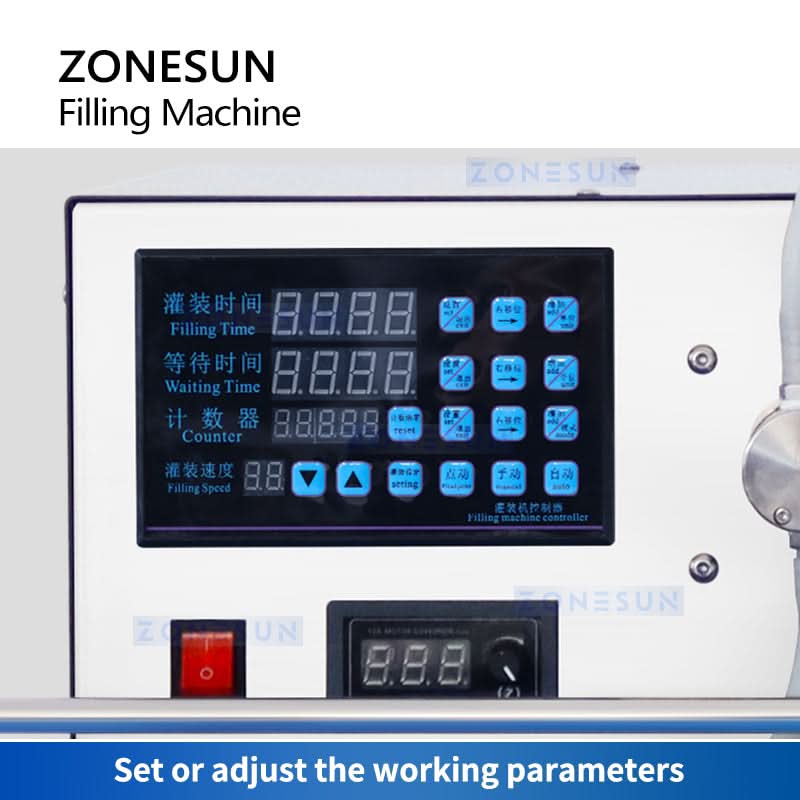

Through digital panel,you can set or adjust working parameters like filling speed and waiting time.Easy to operate. Quantity of filled bottles can show on panel,visual and accurate.
1 / 7
+2

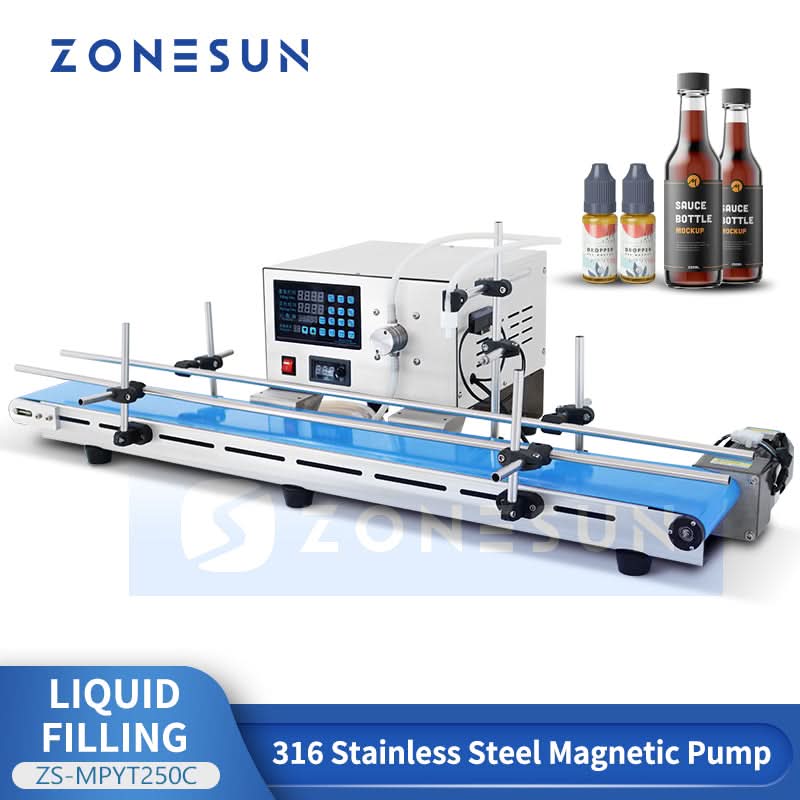

ZONESUN ZS-MPYT250C Magnetic Pump Liquid Filling Machine with Conveyor
The ZS-MPYT250C is a compact automatic filling machine designed for precision and efficiency. Equipped with a high-accuracy 316 stainless steel magnetic pump, it’s ideal for filling low-viscosity liquids such as water, essential oils, and juice. Its customizable multi-nozzle setup supports flexible production needs, while the integrated conveyor system streamlines small-scale bottling operations. With automated controls and reliable performance, this machine is a smart choice for businesses seeking to improve output and reduce labor.
Parameter
Machine Model ZS-MPYT250C
Voltage 220V / 110V, 50–60Hz
Power 300W
Filling Pump Type 316 Stainless Steel Magnetic Pump
Filling Speed Approx. 5–30 bottles/min (depends on bottle size/material)
Filling Range 5–3000 ml
Max Flow Rate 3 L/min
Filling Accuracy ≤ ±1%
Conveyor Load Capacity Max. 5 kg
Conveyor Dimensions 1170 × 150 mm (L×W)
Suitable Liquid Temperature <60°C
Machine Dimensions Approx. 1170 × 630 × 320 mm (L×W×H)
PRODUCT DETAILS

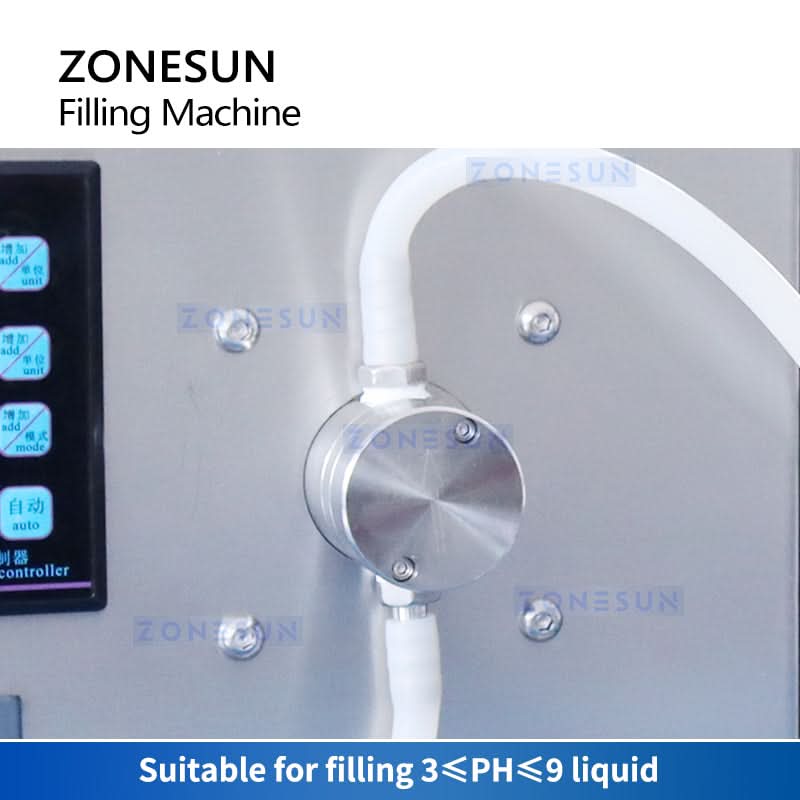

With stainless steel magnetic pump,it has feature of high filling accuracy and corrosion resistance.It is suitable for filling 3≤PH≤9 liquid.

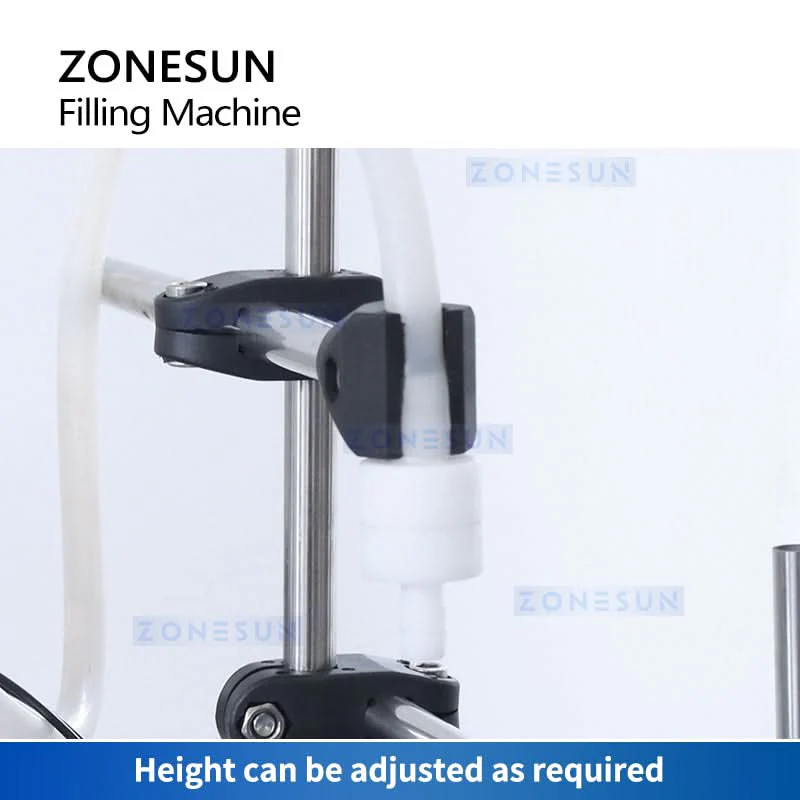

The working height of filling nozzle can be adjusted according to bottle size. Multiple filling nozzles can be customized as your need.
The electric eye is designed for detecting bottles and controlling machine to fill liquid.Intelligent and efficient.Its sensitivity can be adjusted as needed.

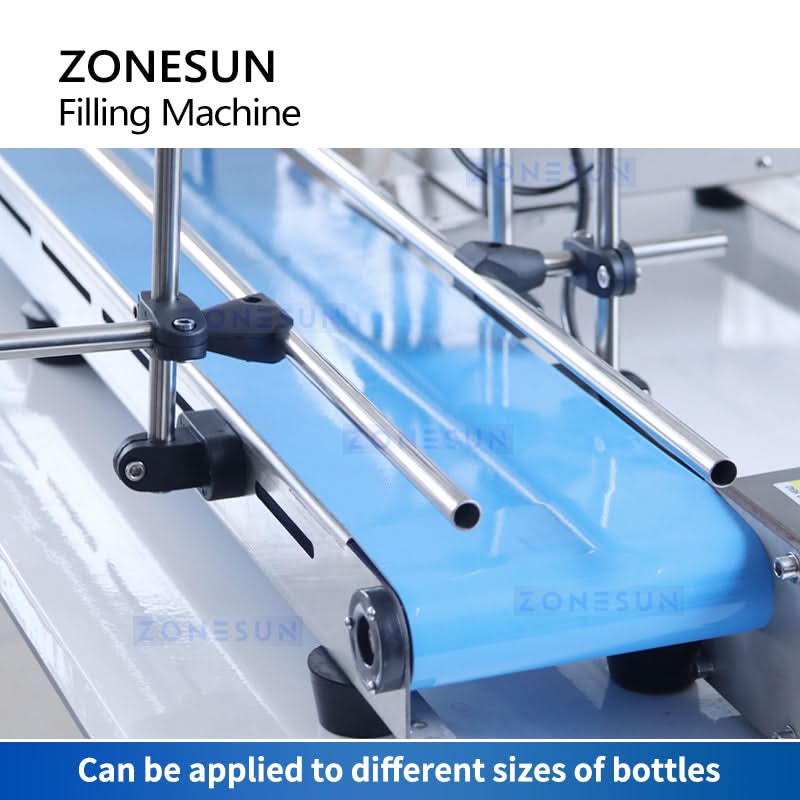

With high quality conveyor belt,it can transport bottles steadily.The conveying speed and width of conveyor belt can be adjusted according to production need.
The ZS-MPYT250C is a compact automatic filling machine designed for precision and efficiency. Equipped with a high-accuracy 316 stainless steel magnetic pump, it’s ideal for filling low-viscosity liquids such as water, essential oils, and juice. Its customizable multi-nozzle setup supports flexible production needs, while the integrated conveyor system streamlines small-scale bottling operations. With automated controls and reliable performance, this machine is a smart choice for businesses seeking to improve output and reduce labor.
Parameter
Machine Model ZS-MPYT250C
Voltage 220V / 110V, 50–60Hz
Power 300W
Filling Pump Type 316 Stainless Steel Magnetic Pump
Filling Speed Approx. 5–30 bottles/min (depends on bottle size/material)
Filling Range 5–3000 ml
Max Flow Rate 3 L/min
Filling Accuracy ≤ ±1%
Conveyor Load Capacity Max. 5 kg
Conveyor Dimensions 1170 × 150 mm (L×W)
Suitable Liquid Temperature <60°C
Machine Dimensions Approx. 1170 × 630 × 320 mm (L×W×H)
PRODUCT DETAILS
Through digital panel,you can set or adjust working parameters like filling speed and waiting time.Easy to operate. Quantity of filled bottles can show on panel,visual and accurate.
With stainless steel magnetic pump,it has feature of high filling accuracy and corrosion resistance.It is suitable for filling 3≤PH≤9 liquid.
The working height of filling nozzle can be adjusted according to bottle size. Multiple filling nozzles can be customized as your need.
The electric eye is designed for detecting bottles and controlling machine to fill liquid.Intelligent and efficient.Its sensitivity can be adjusted as needed.
With high quality conveyor belt,it can transport bottles steadily.The conveying speed and width of conveyor belt can be adjusted according to production need.
