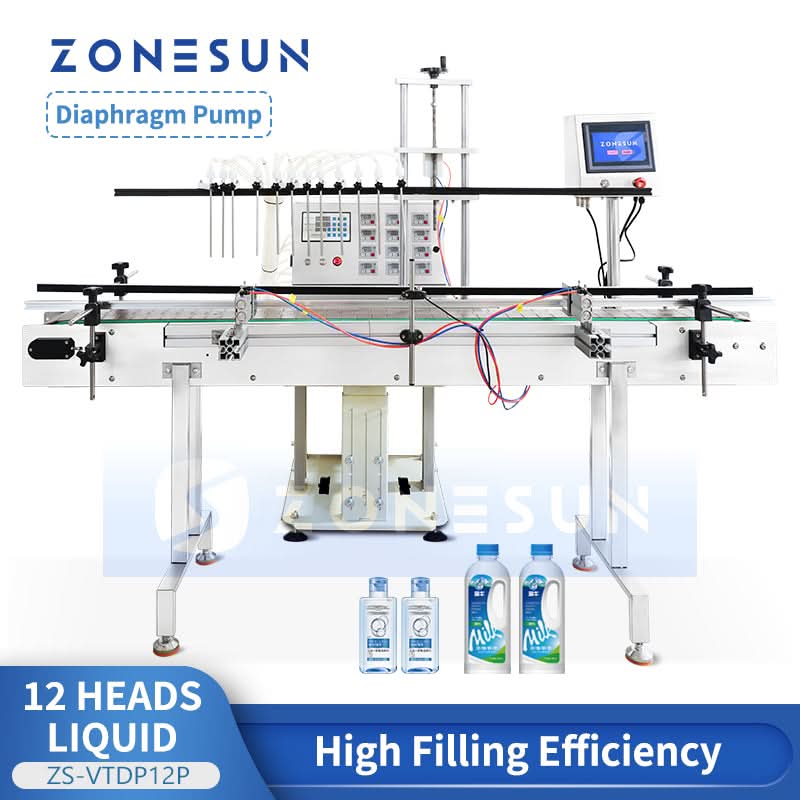

ZONESUN ZS-VTDP12P 12-Head Automatic Liquid Filling Machine

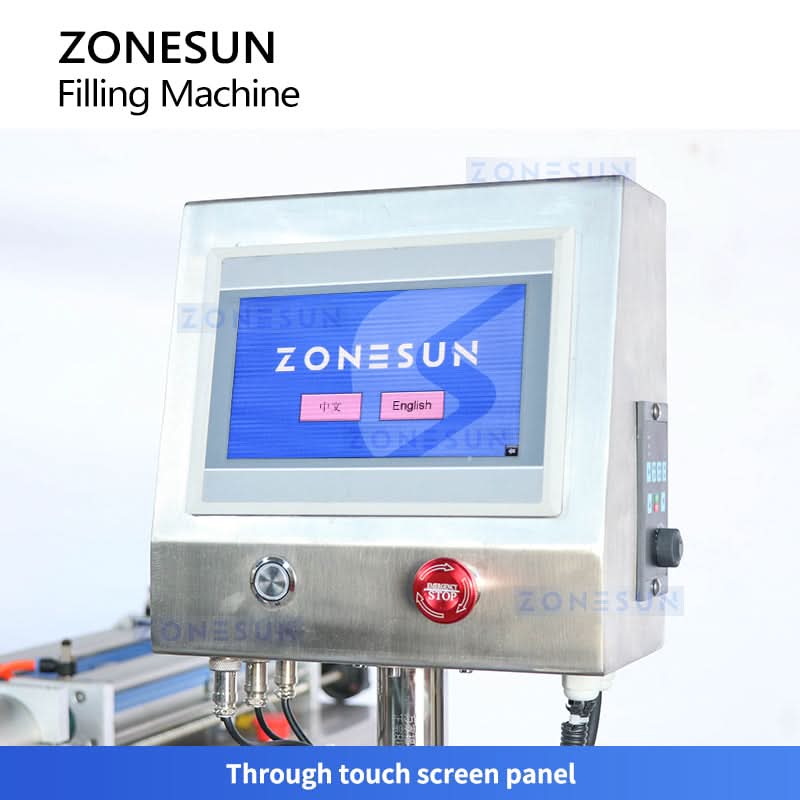

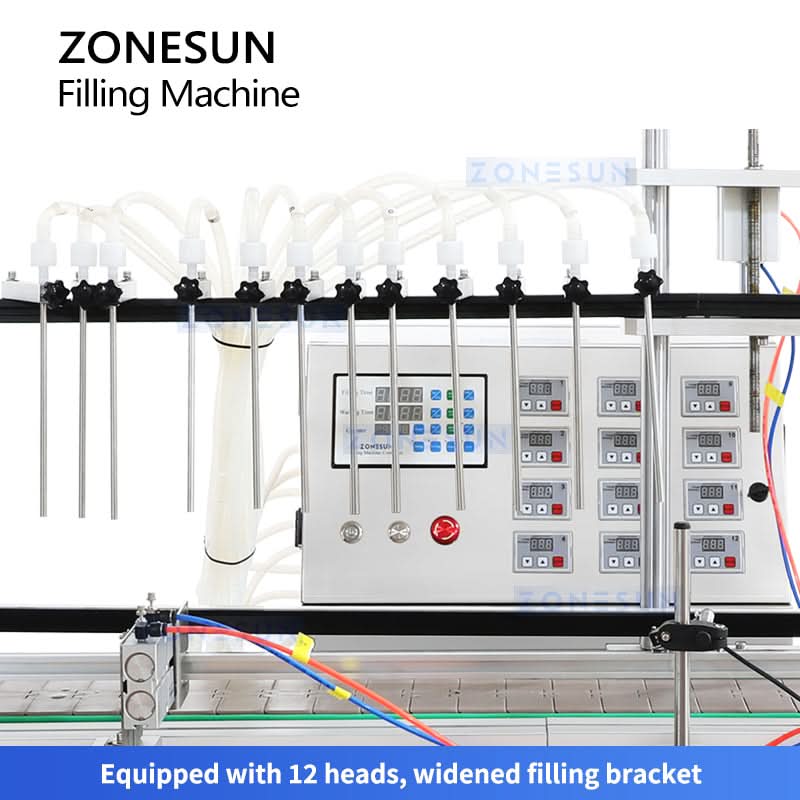

The ZS-VTDP12P automatic filling machine features an advanced micro-computer control system for precise and smooth liquid dispensing. Equipped with an LCD display and anti-drip technology, its user-friendly interface and stainless steel build meet GMP standards. Operating in pedal or automatic mode, it offers exceptional versatility for low-viscosity liquids. With 12 filling heads and a high-speed pump system, it's perfect for boosting productivity in cosmetics, beverages, and pharmaceuticals.
Parameter
Machine Model ZS-VTDP12P
Voltage 220V / 110V, 50–60Hz
Rated Power 700W
Machine Pump Type Diaphragm Pump
Filling Range 30–4000 ml (each pump) × 12
Working Speed Approx. 10–40 bottles/min (based on liquid type and filling volume)
Maximum Suction Distance 1.5 m
Maximum Flow Rate 4 L/min (each pump) × 12
Filling Accuracy ±1% (depending on liquid properties)
Filling Nozzle Outer Diameter 6 mm

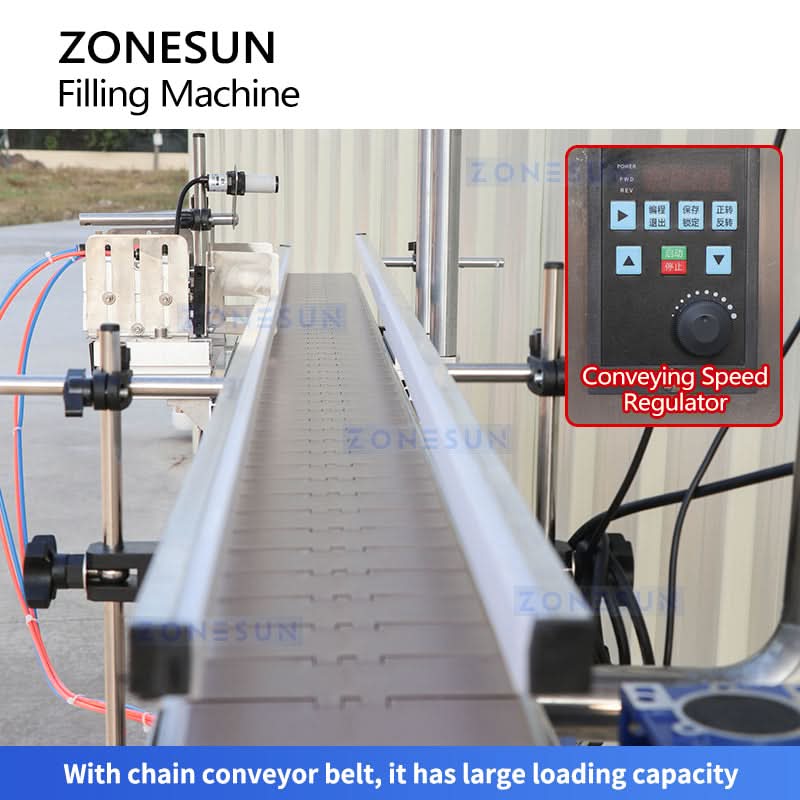

Conveyor Size Approx. 114 × 1900 mm (W × L)
Machine Weight Approx. 131 kg
Machine Size Filling Machine: Approx. 500 × 250 × 580 mm
Conveyor: Approx. 1900 × 380 × 1600 mm (Height: 900 mm)
Bracket: Approx. 520 × 520 × 770 mm
The ZS-VTDP12P automatic filling machine features an advanced micro-computer control system for precise and smooth liquid dispensing. Equipped with an LCD display and anti-drip technology, its user-friendly interface and stainless steel build meet GMP standards. Operating in pedal or automatic mode, it offers exceptional versatility for low-viscosity liquids. With 12 filling heads and a high-speed pump system, it's perfect for boosting productivity in cosmetics, beverages, and pharmaceuticals.
Parameter
Machine Model ZS-VTDP12P
Voltage 220V / 110V, 50–60Hz
Rated Power 700W
Machine Pump Type Diaphragm Pump
Filling Range 30–4000 ml (each pump) × 12
Working Speed Approx. 10–40 bottles/min (based on liquid type and filling volume)
Maximum Suction Distance 1.5 m
Maximum Flow Rate 4 L/min (each pump) × 12
Filling Accuracy ±1% (depending on liquid properties)
Filling Nozzle Outer Diameter 6 mm
Conveyor Size Approx. 114 × 1900 mm (W × L)
Machine Weight Approx. 131 kg
Machine Size Filling Machine: Approx. 500 × 250 × 580 mm
Conveyor: Approx. 1900 × 380 × 1600 mm (Height: 900 mm)
Bracket: Approx. 520 × 520 × 770 mm
