Zonesun ZS-VTZL4A Automatic Vacuum Perfume Filling Machine Fragrance Bottle Filler
DESCRIPTION

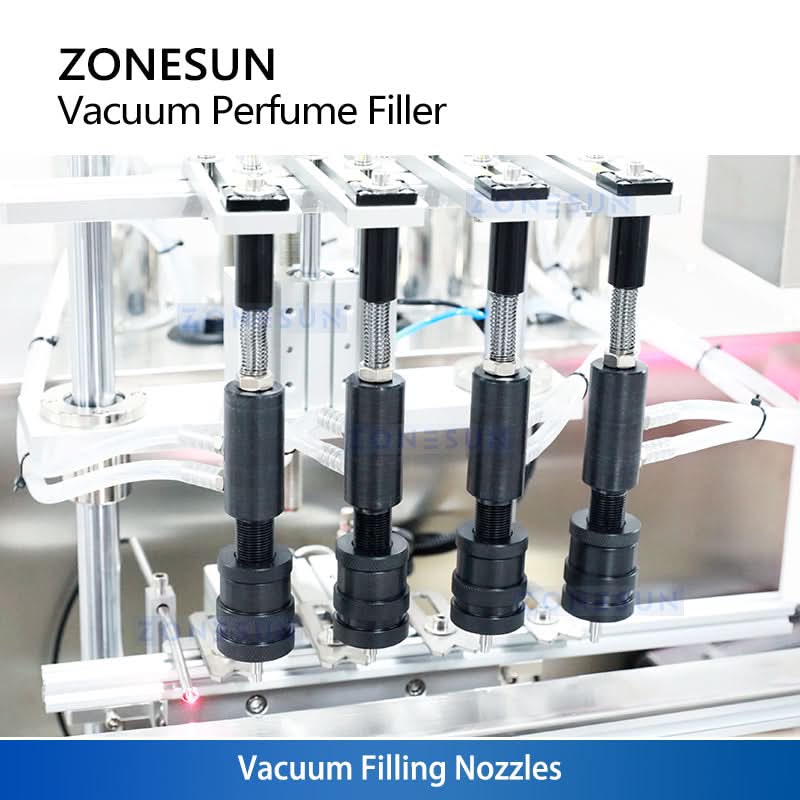

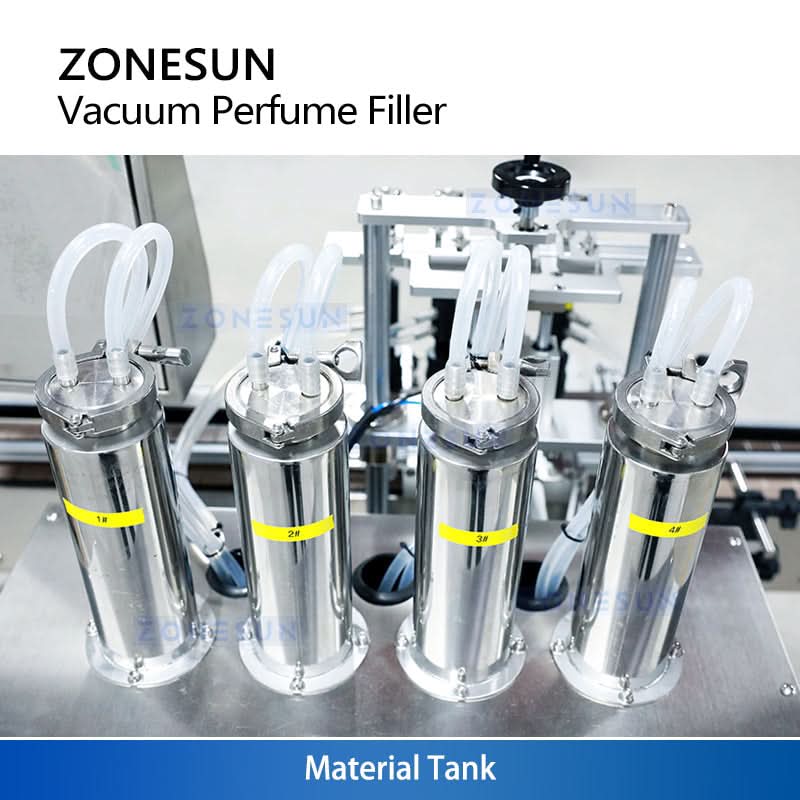

The ZONESUN ZS-VTZL4A liquid filling machine adopts vacuum negative pressure technology to fill up to four bottles at the same time, ensuring uniform liquid levels without overflow. Excess liquid is automatically recycled back into the tank, preventing waste and maintaining clean operation. Its closed filling system minimizes fragrance loss, making it especially suitable for perfume, essential oils, and cosmetic liquids. Fully automatic and easy to integrate with capping machines, it delivers efficient, accurate, and reliable filling performance for streamlined production lines.
Parameter
- Machine Model: ZS-VTZL4A
- Filling Head: 4 Head
- Air Pressure: 0.5-0.8 MPa
- Liquid Level Accuracy: ±1 mm
- Viscosity Range: The maximum applicable viscosity is 20Cps (static viscosity)
- Working Speed: 20-40 Bottles/Minute
- Bottle Height: ≤250 mm
- Bottle Opening Size: ≤φ8 mm-φ28 mm
- Adjustable Liquid Level (from the bottle mouth): 15-50 mm
- Pumping Rate: 5.5L/MIN
- Machine Size: About 2020*800*1410 mm
- Package Size: About 1330*2105*1670 mm
- Package Weight: About 335 kg
DESCRIPTION
The ZONESUN ZS-VTZL4A liquid filling machine adopts vacuum negative pressure technology to fill up to four bottles at the same time, ensuring uniform liquid levels without overflow. Excess liquid is automatically recycled back into the tank, preventing waste and maintaining clean operation. Its closed filling system minimizes fragrance loss, making it especially suitable for perfume, essential oils, and cosmetic liquids. Fully automatic and easy to integrate with capping machines, it delivers efficient, accurate, and reliable filling performance for streamlined production lines.
Parameter
- Machine Model: ZS-VTZL4A
- Filling Head: 4 Head
- Air Pressure: 0.5-0.8 MPa
- Liquid Level Accuracy: ±1 mm
- Viscosity Range: The maximum applicable viscosity is 20Cps (static viscosity)
- Working Speed: 20-40 Bottles/Minute
- Bottle Height: ≤250 mm
- Bottle Opening Size: ≤φ8 mm-φ28 mm
- Adjustable Liquid Level (from the bottle mouth): 15-50 mm
- Pumping Rate: 5.5L/MIN
- Machine Size: About 2020*800*1410 mm
- Package Size: About 1330*2105*1670 mm
- Package Weight: About 335 kg
Original: $5,599.00
-70%$5,599.00
$1,679.70Description
