ZONEUSN ZS-DTGZ400 Tabletop Liquid Filling Machine | 4-Head Gravity Filler

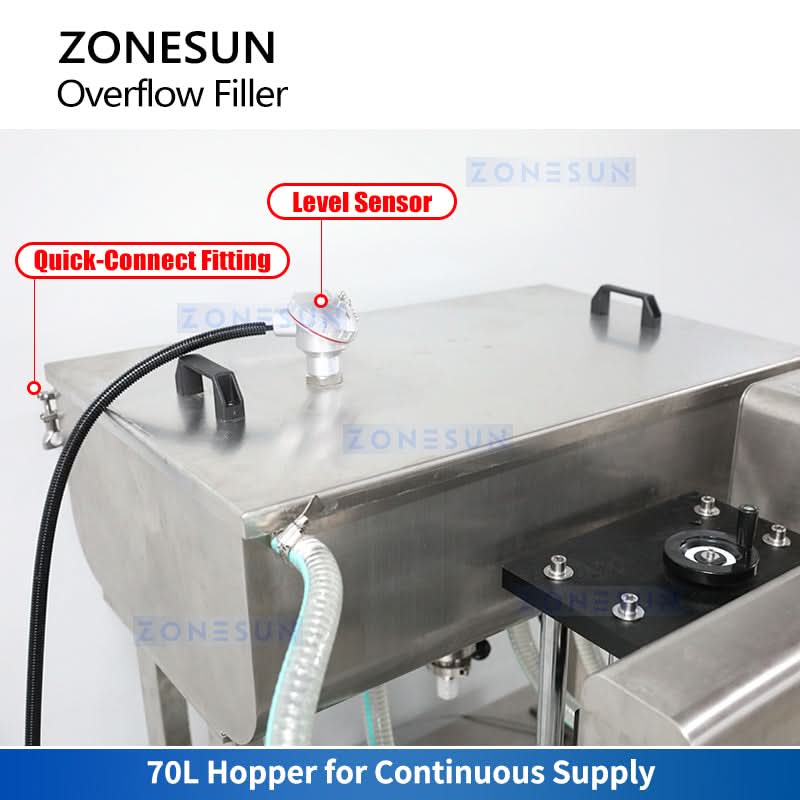

Introducing our revolutionary tabletop overflow filler, designed for efficient and precise liquid filling. Featuring a spacious 70L storage tank, this machine boasts advanced features for streamlined operation. The integrated level sensor alerts you when the tank is low, ensuring uninterrupted production. A quick-connect fitting allows for easy connection to your material source via tubing.

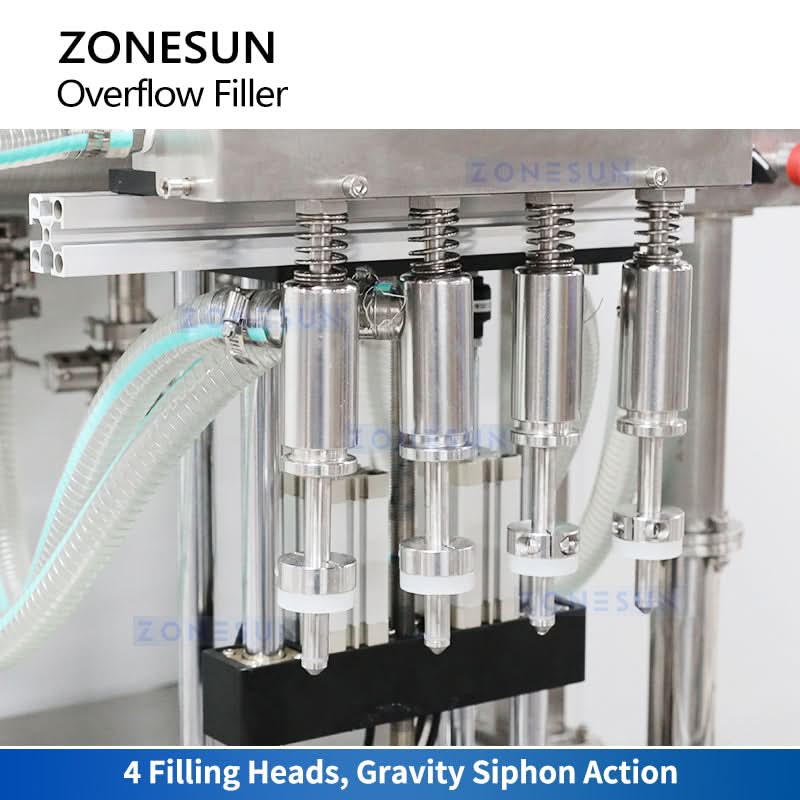

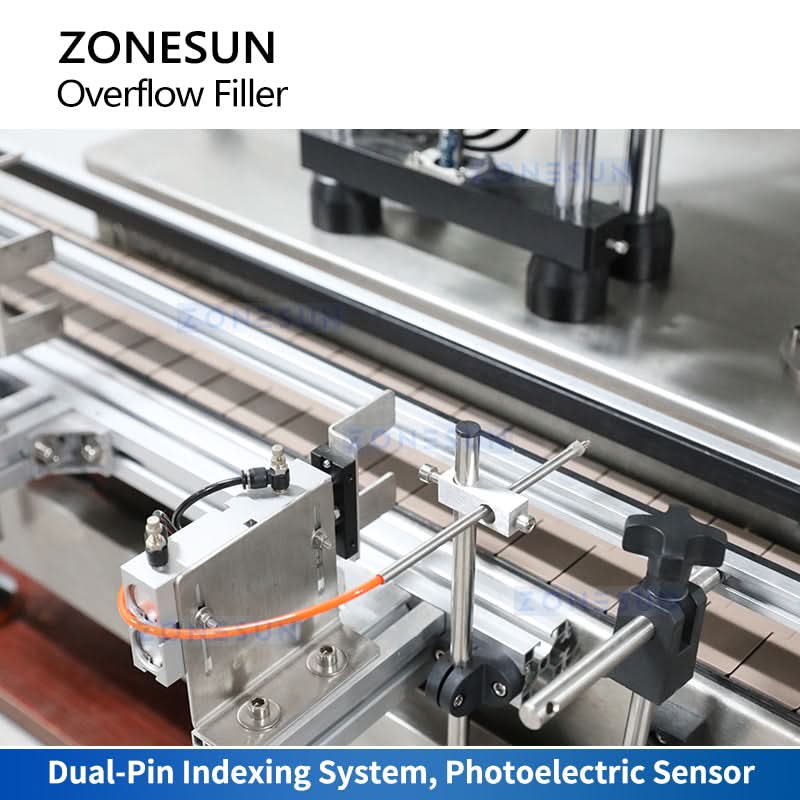

This machine utilizes the gravity siphon principle for accurate filling. Bottles are transported by a conveyor belt to the filling station, where an electric eye detects the correct number of bottles. The bottle blocking mechanism activates, and the filling process begins. Once complete, the bottle blocking mechanism releases, and the filled bottles are conveyed out. This machine achieves a remarkable filling speed of 720 bottles per hour for standard 750ml wine bottles.
Parameter
Model ZS-DTGZ400
Voltage 110V/220V, 50/60Hz
Quantity of Filling Heads 4
Working Capacity 12–20 bottles/min
Storage Tank 70 L (with level sensor)
Air Pressure 0.4–0.6 MPa
Filling Range ≤1500 ml per bottle
Applicable Bottle Diameter 50–80 mm
Applicable Bottle Height 200–300 mm
Bottle Opening Diameter 20–35 mm
Working Height (from tabletop) 226–336 mm
Machine Dimensions (L × W × H) 1806 × 996 × 1042 mm
Machine Weight 187 kg
Introducing our revolutionary tabletop overflow filler, designed for efficient and precise liquid filling. Featuring a spacious 70L storage tank, this machine boasts advanced features for streamlined operation. The integrated level sensor alerts you when the tank is low, ensuring uninterrupted production. A quick-connect fitting allows for easy connection to your material source via tubing.
This machine utilizes the gravity siphon principle for accurate filling. Bottles are transported by a conveyor belt to the filling station, where an electric eye detects the correct number of bottles. The bottle blocking mechanism activates, and the filling process begins. Once complete, the bottle blocking mechanism releases, and the filled bottles are conveyed out. This machine achieves a remarkable filling speed of 720 bottles per hour for standard 750ml wine bottles.
Parameter
Model ZS-DTGZ400
Voltage 110V/220V, 50/60Hz
Quantity of Filling Heads 4
Working Capacity 12–20 bottles/min
Storage Tank 70 L (with level sensor)
Air Pressure 0.4–0.6 MPa
Filling Range ≤1500 ml per bottle
Applicable Bottle Diameter 50–80 mm
Applicable Bottle Height 200–300 mm
Bottle Opening Diameter 20–35 mm
Working Height (from tabletop) 226–336 mm
Machine Dimensions (L × W × H) 1806 × 996 × 1042 mm
Machine Weight 187 kg
Original: $4,999.00
-70%$4,999.00
$1,499.70Description
Introducing our revolutionary tabletop overflow filler, designed for efficient and precise liquid filling. Featuring a spacious 70L storage tank, this machine boasts advanced features for streamlined operation. The integrated level sensor alerts you when the tank is low, ensuring uninterrupted production. A quick-connect fitting allows for easy connection to your material source via tubing.
This machine utilizes the gravity siphon principle for accurate filling. Bottles are transported by a conveyor belt to the filling station, where an electric eye detects the correct number of bottles. The bottle blocking mechanism activates, and the filling process begins. Once complete, the bottle blocking mechanism releases, and the filled bottles are conveyed out. This machine achieves a remarkable filling speed of 720 bottles per hour for standard 750ml wine bottles.
Parameter
Model ZS-DTGZ400
Voltage 110V/220V, 50/60Hz
Quantity of Filling Heads 4
Working Capacity 12–20 bottles/min
Storage Tank 70 L (with level sensor)
Air Pressure 0.4–0.6 MPa
Filling Range ≤1500 ml per bottle
Applicable Bottle Diameter 50–80 mm
Applicable Bottle Height 200–300 mm
Bottle Opening Diameter 20–35 mm
Working Height (from tabletop) 226–336 mm
Machine Dimensions (L × W × H) 1806 × 996 × 1042 mm
Machine Weight 187 kg
