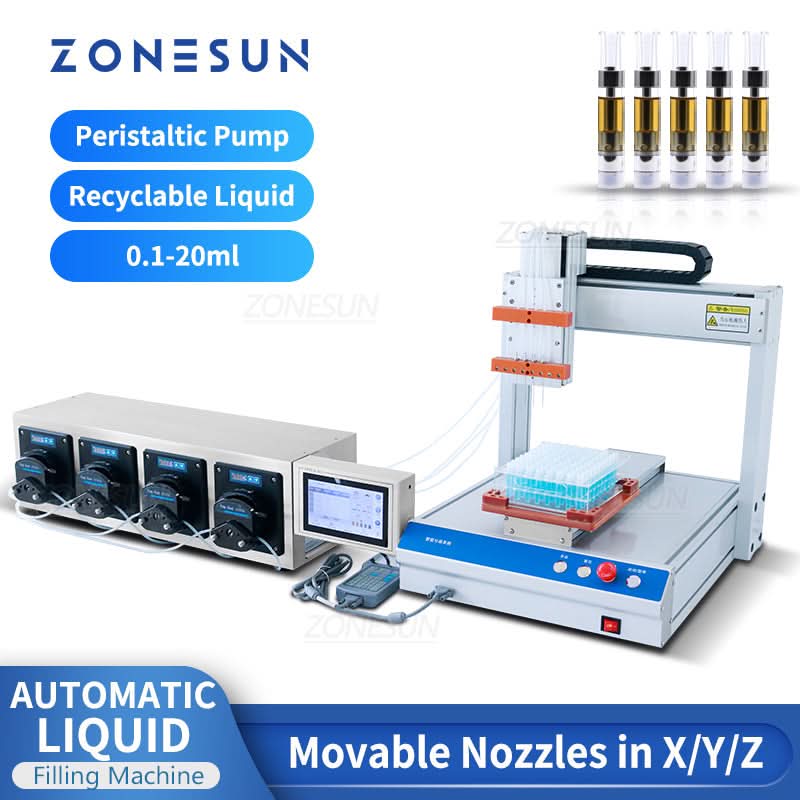

ZONESUN ZS-XYZ4A 4-Nozzle Liquid Filling Machine for Vials and Small Tubes

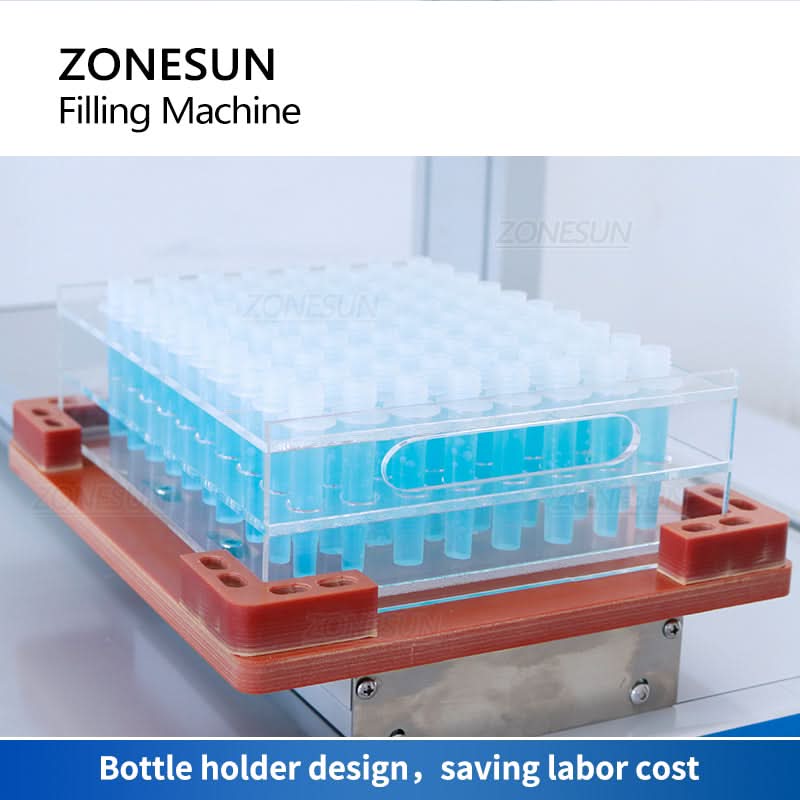

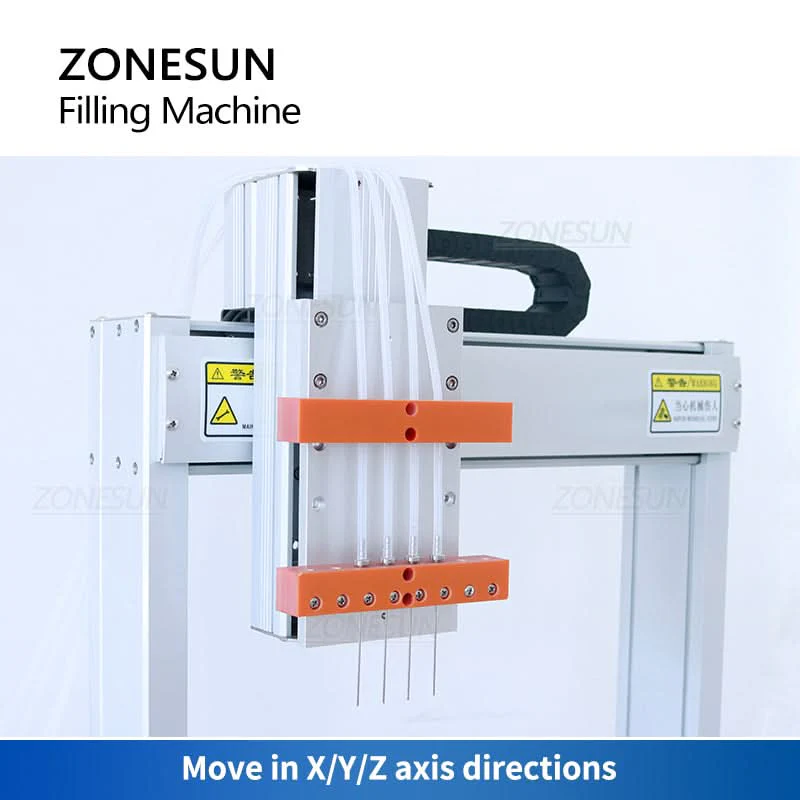

The ZONESUN ZS-XYZ4A is a precision small-dose liquid filling machine equipped with four peristaltic pumps and multiple nozzles. Its intelligent nozzle system moves along the X, Y, and Z axes for flexible, accurate filling. Ideal for handling vials, ampoules, and narrow tubes, this compact device delivers high-speed dosing with minimal contamination risk—perfect for pharmaceutical, cosmetic, and laboratory applications.
Specification Details
Machine Model ZS-XYZ4A
Voltage 110V / 220V, 50–60Hz
Power Consumption 400W
Filling Range 0.1–20ml
Filling Nozzle Quantity 1 / 2 / 3 / 4
Filling Speed Approx. 60–120 bottles/min (depends on liquid & volume)

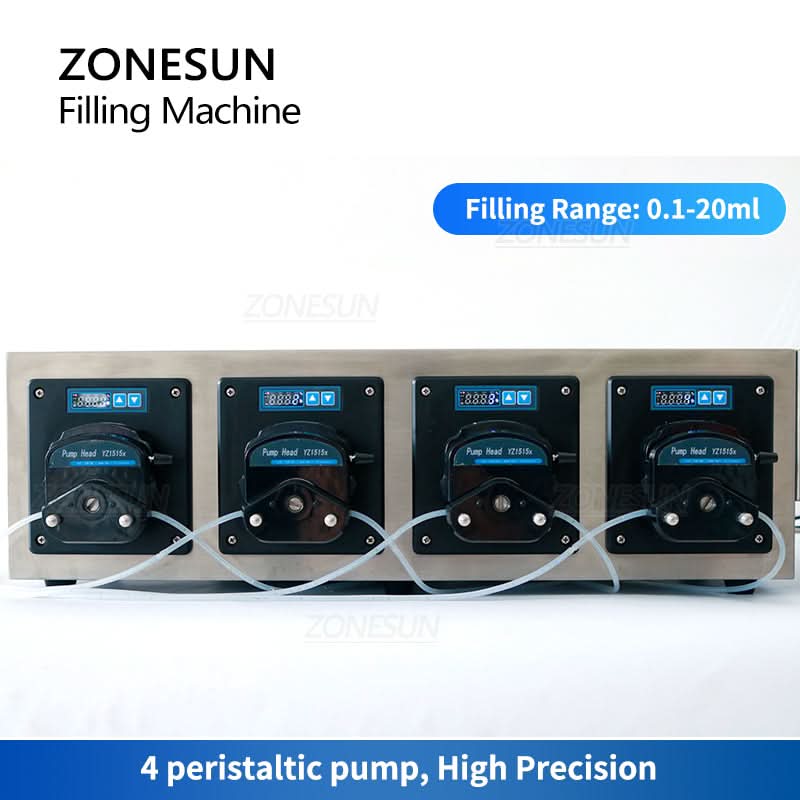

Filling Pump Type Peristaltic Pump
Machine Size Approx. 720 × 250 × 210mm
Machine Weight Approx. 17kg
The ZONESUN ZS-XYZ4A is a precision small-dose liquid filling machine equipped with four peristaltic pumps and multiple nozzles. Its intelligent nozzle system moves along the X, Y, and Z axes for flexible, accurate filling. Ideal for handling vials, ampoules, and narrow tubes, this compact device delivers high-speed dosing with minimal contamination risk—perfect for pharmaceutical, cosmetic, and laboratory applications.
Specification Details
Machine Model ZS-XYZ4A
Voltage 110V / 220V, 50–60Hz
Power Consumption 400W
Filling Range 0.1–20ml
Filling Nozzle Quantity 1 / 2 / 3 / 4
Filling Speed Approx. 60–120 bottles/min (depends on liquid & volume)
Filling Pump Type Peristaltic Pump
Machine Size Approx. 720 × 250 × 210mm
Machine Weight Approx. 17kg
Original: $4,299.00
-70%$4,299.00
$1,289.70Description
The ZONESUN ZS-XYZ4A is a precision small-dose liquid filling machine equipped with four peristaltic pumps and multiple nozzles. Its intelligent nozzle system moves along the X, Y, and Z axes for flexible, accurate filling. Ideal for handling vials, ampoules, and narrow tubes, this compact device delivers high-speed dosing with minimal contamination risk—perfect for pharmaceutical, cosmetic, and laboratory applications.
Specification Details
Machine Model ZS-XYZ4A
Voltage 110V / 220V, 50–60Hz
Power Consumption 400W
Filling Range 0.1–20ml
Filling Nozzle Quantity 1 / 2 / 3 / 4
Filling Speed Approx. 60–120 bottles/min (depends on liquid & volume)
Filling Pump Type Peristaltic Pump
Machine Size Approx. 720 × 250 × 210mm
Machine Weight Approx. 17kg
