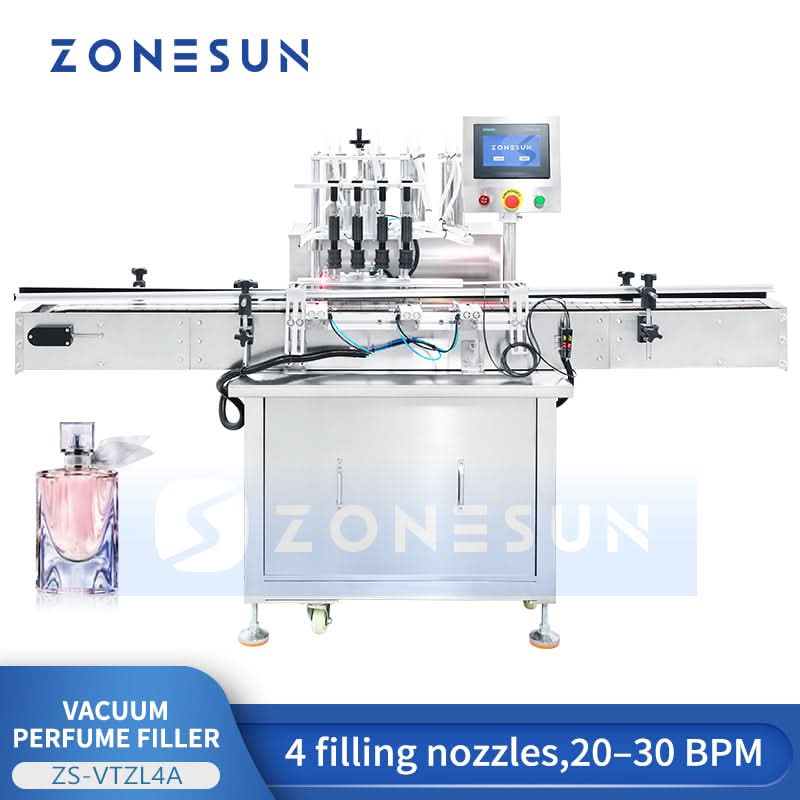

Zonesun ZS-YTZL4A 4 Heads Vacuum Liquid Filling Machine Enolmatic Gravity Bottle Filler

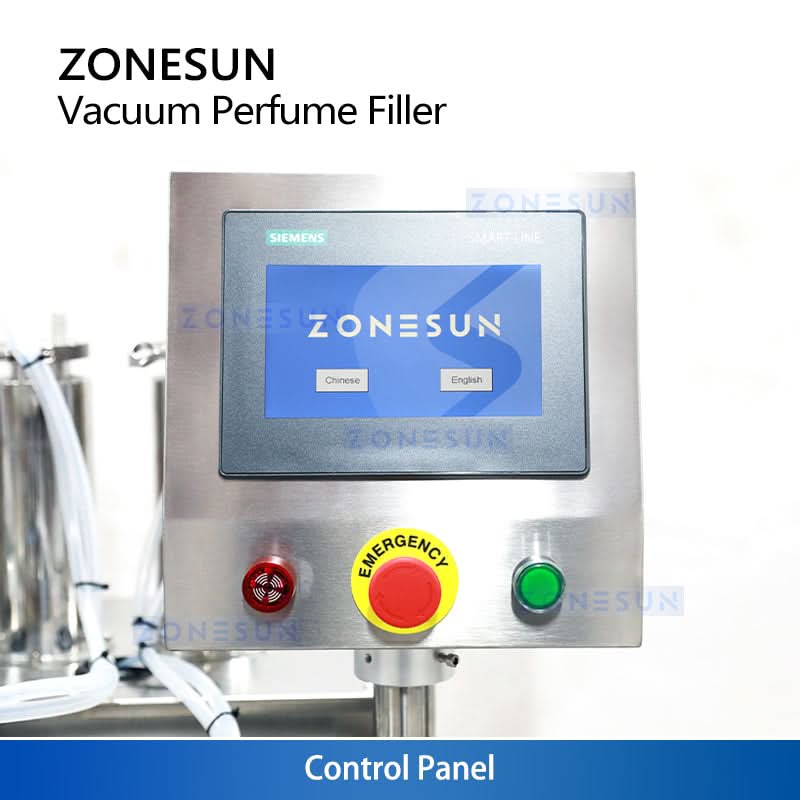

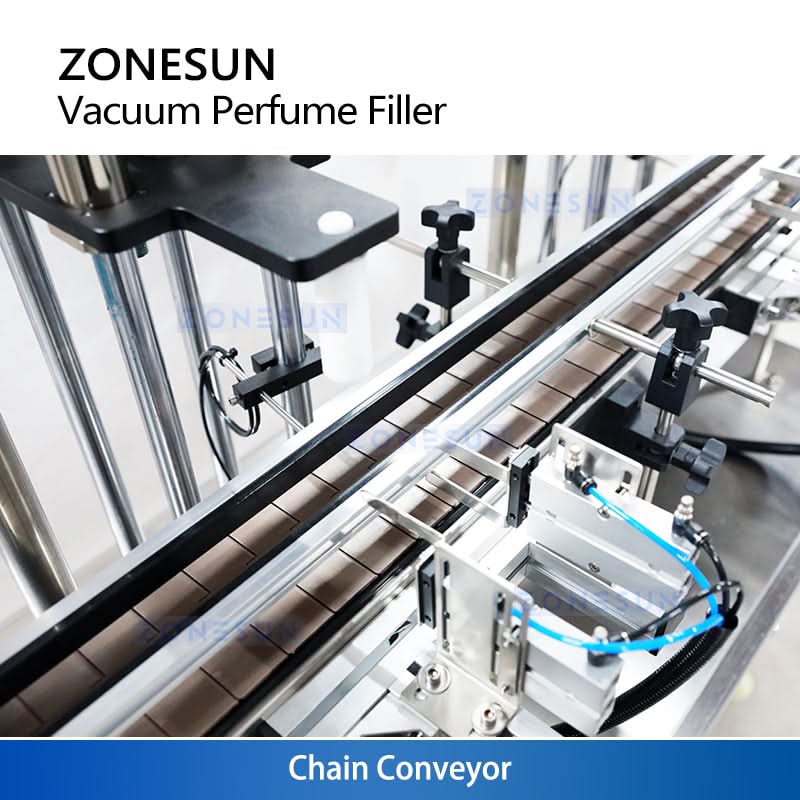

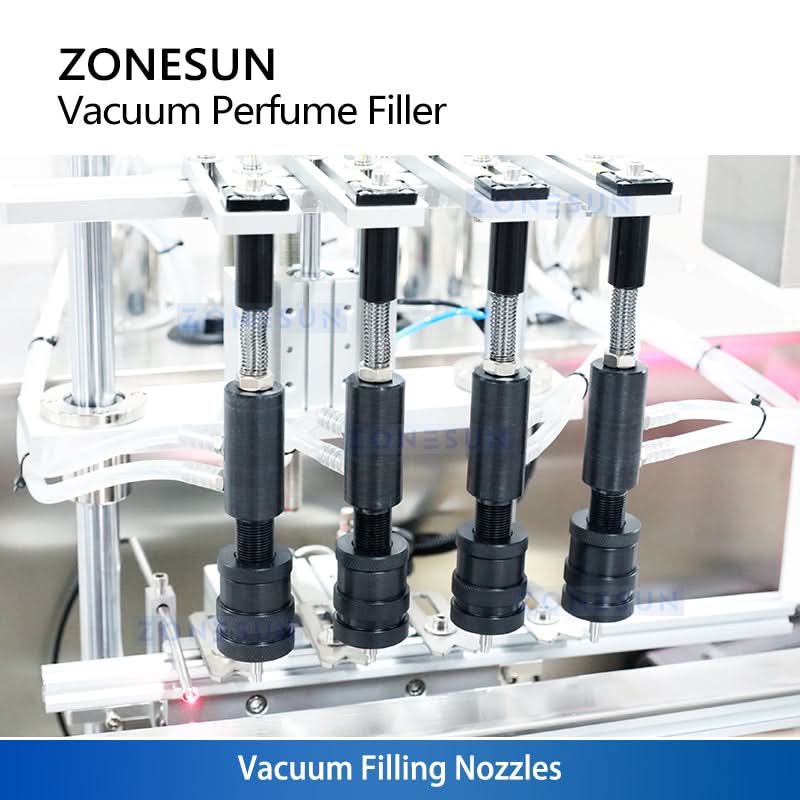

Engineered for precision and speed, the ZS-YTZL4A Liquid Level Filling Machine is ideal for filling perfume, water, juice, and other low-viscosity liquids. Equipped with pneumatic vacuum nozzles with back suction function, it prevents overflow while maintaining ±1 mm filling accuracy. The intuitive PLC touch screen makes setup simple, with customizable language options. Intelligent electric eye detection, high-quality chain conveyor belt, and compatibility with automatic capping and labeling systems enable seamless production line integration—boosting both quality and efficiency for industrial bottling operations.
Specification
| Parameter | Details |
|---|---|
| Machine Model | ZS-VTZL4A |
| Filling Head | 4 Head |
| Air Pressure | 0.5–0.8 MPa |
| Liquid Level Accuracy | ±1 mm |
| Viscosity Range | The maximum applicable viscosity is 20Cps (static viscosity) |
| Working Speed | 20–30 bottles/min |
| Bottle Height | ≤250 mm |
| Bottle Opening Size | Φ8–28 mm |
| Adjustable Liquid Level (from bottle mouth) | 15–50 mm |
| Pumping Rate | 5.5 L/min |
| Machine Size | About 20208001410 mm |
| Package Size | About 133021051670 mm |
| Package Weight | About 335 kg |
Engineered for precision and speed, the ZS-YTZL4A Liquid Level Filling Machine is ideal for filling perfume, water, juice, and other low-viscosity liquids. Equipped with pneumatic vacuum nozzles with back suction function, it prevents overflow while maintaining ±1 mm filling accuracy. The intuitive PLC touch screen makes setup simple, with customizable language options. Intelligent electric eye detection, high-quality chain conveyor belt, and compatibility with automatic capping and labeling systems enable seamless production line integration—boosting both quality and efficiency for industrial bottling operations.
Specification
| Parameter | Details |
|---|---|
| Machine Model | ZS-VTZL4A |
| Filling Head | 4 Head |
| Air Pressure | 0.5–0.8 MPa |
| Liquid Level Accuracy | ±1 mm |
| Viscosity Range | The maximum applicable viscosity is 20Cps (static viscosity) |
| Working Speed | 20–30 bottles/min |
| Bottle Height | ≤250 mm |
| Bottle Opening Size | Φ8–28 mm |
| Adjustable Liquid Level (from bottle mouth) | 15–50 mm |
| Pumping Rate | 5.5 L/min |
| Machine Size | About 20208001410 mm |
| Package Size | About 133021051670 mm |
| Package Weight | About 335 kg |
Original: $5,599.00
-70%$5,599.00
$1,679.70Description
Engineered for precision and speed, the ZS-YTZL4A Liquid Level Filling Machine is ideal for filling perfume, water, juice, and other low-viscosity liquids. Equipped with pneumatic vacuum nozzles with back suction function, it prevents overflow while maintaining ±1 mm filling accuracy. The intuitive PLC touch screen makes setup simple, with customizable language options. Intelligent electric eye detection, high-quality chain conveyor belt, and compatibility with automatic capping and labeling systems enable seamless production line integration—boosting both quality and efficiency for industrial bottling operations.
Specification
| Parameter | Details |
|---|---|
| Machine Model | ZS-VTZL4A |
| Filling Head | 4 Head |
| Air Pressure | 0.5–0.8 MPa |
| Liquid Level Accuracy | ±1 mm |
| Viscosity Range | The maximum applicable viscosity is 20Cps (static viscosity) |
| Working Speed | 20–30 bottles/min |
| Bottle Height | ≤250 mm |
| Bottle Opening Size | Φ8–28 mm |
| Adjustable Liquid Level (from bottle mouth) | 15–50 mm |
| Pumping Rate | 5.5 L/min |
| Machine Size | About 20208001410 mm |
| Package Size | About 133021051670 mm |
| Package Weight | About 335 kg |
